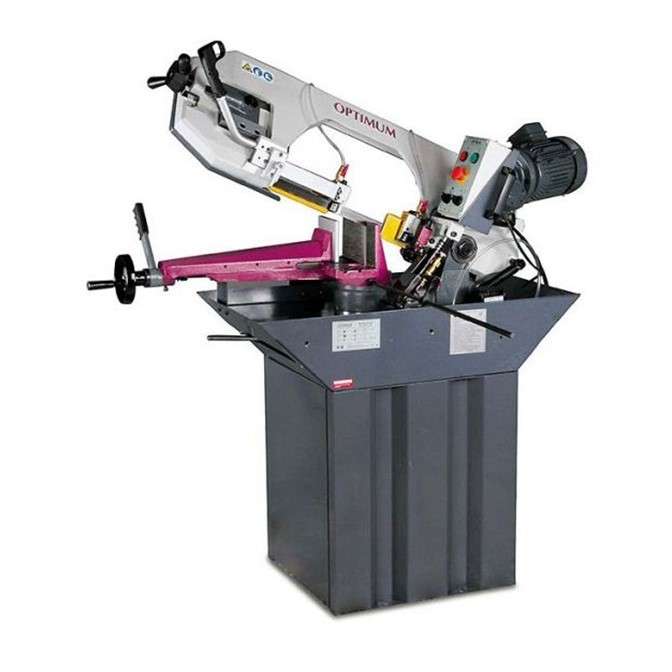

OPTIMUM - Metal Bandsaw 230V | S275G

Metal band saw for easy sawing.

The OPTIMUM Metal Bandsaw 230V | S275G with swivel saw bow and continuously adjustable saw blade speed.

FEATURES

Silent run.
Stable cast execution.
High cutting accuracy due to vibration-free running.
Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable.
Micro switch for automatic limit switch.
Coolant system.
As standard with high-quality bi-metal saw band.
Adjustable material stop for serial work.
Easy to read scale for angle adjustment.
Overload protection.
Infinitely adjustable saw blade speed 20 90 m / min.
Speed change possible during operation.
Robust substructure.

CONTROL PANEL

Clear keyboard for easy operation.
Emergency stop impact switch.
Switch coolant pump.
Speed selector.
For Vario: potentiometer.

MANOMETER

Easy and accurate control of saw blade tension.

ACTION VICE

Adjustable via handwheel.
Clamping the workpiece with a handy quick release lever.

Electrical connection

230 V / 1 Ph
Engine power

1.5 kW
Lifting the saw bow

manual
Infeed

infinitely variable
Saw band speed

20 90 m / min
Saw band dimension

2,480 x 27 x 0.9 mm
Cutting angle

0 to 60 degree
Net weight

185 kg
Cutting range 0°

Circle 225 mm
Square 150 mm
Rectangle 150 x 230 mm
Cutting range 45°

Circle 145 mm
Square 145 mm
Rectangle 145 x 180 mm
Cutting range 60°

Circle 90 mm
Square 90 mm
Rectangle 90 x 120 mm
