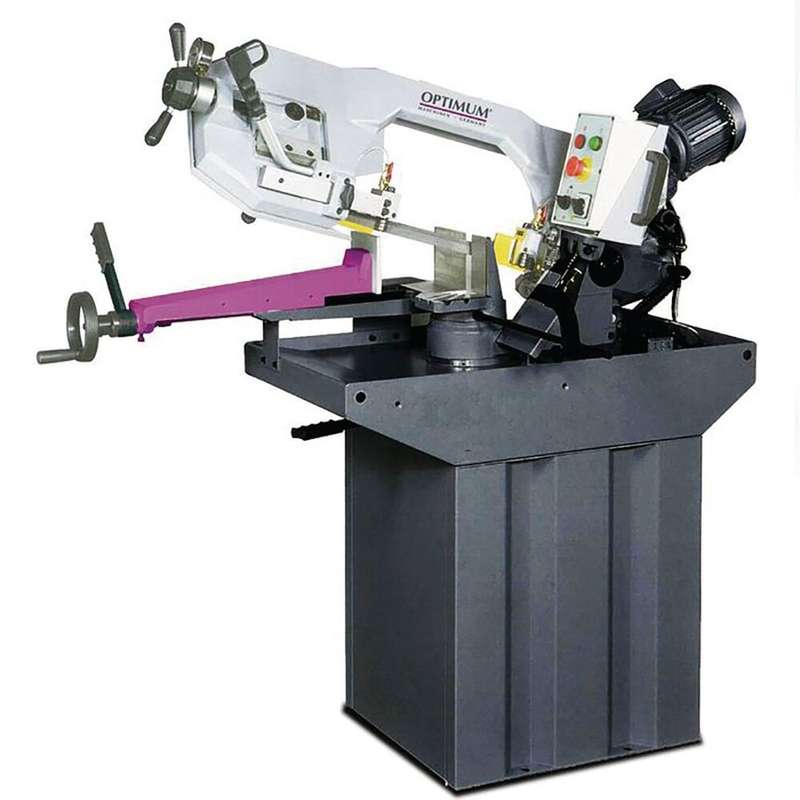

Metal Band Saw for Easy Sawing
description
Metal band saws with swivel saw bow. S 275G with continuously adjustable saw blade speed
Silent run
Stable cast execution
High cutting accuracy due to vibration-free running
Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
Micro switch for automatic limit switch
Coolant system
As standard with high-quality bi-metal saw band
Adjustable material stop for serial work
Easy to read scale for angle adjustment
Overload protection
BANDSAW METAL OPTIMUM
Metal Band Saw for Easy Sawing
description
Metal band saws with swivel saw bow. S 275G with continuously adjustable saw blade speed
Silent run
Stable cast execution
High cutting accuracy due to vibration-free running
Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
Micro switch for automatic limit switch
Coolant system
As standard with high-quality bi-metal saw band
Adjustable material stop for serial work
Easy to read scale for angle adjustment
Overload protection
S 275G
Infinitely adjustable saw blade speed 20 90 m / min
Speed change possible during operation
Room amenities
Control panel
Clear keyboard for easy operation
Emergency stop impact switch
Switch coolant pump
Speed selector
For Vario: potentiometer
manometer
Easy and accurate control of saw blade tension
Ball bearing saw band guide
Action vice
Adjustable via handwheel
Clamping the workpiece with a handy quick release lever
substructure
Robust
Technical Specifications
Electrical connection 230 V / 1 Ph
Engine power 1.5 kW
Lifting the saw bow manual
infeed infinitely variable
Saw band speed 20 90 m / min
Saw band dimension 2,480 x 27 x 0.9 mm
Cutting angle 0 to 60 degree
Net weight 185 kg
Cutting range 0 ° circle 225 mm
Cutting range 0 ° square 150 mm
Cutting range 0 ° rectangle 150 x 230 mm
Cutting range 45 ° circle 145 mm
Cutting range 45 ° square 145 mm
Cutting range 45 ° rectangle 145 x 180 mm
Cutting range 60 ° circle 90 mm
Cutting range 60 ° square 90 mm
Cutting range 60 ° rectangle 90 x 120 mm
Delivery Information
material stop
Bi-metal saw band
substructure
Coolant pump
