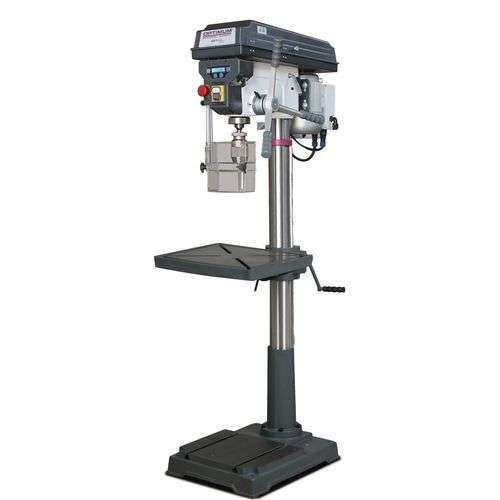

Optimum Optidrill D33Pro 400V/3Ph Drilling Machine | OPTI D33 PRO

OPTIdrill D 33Pro

Drill Press

Drilling machines with V-belt

OPTIdrill D 33Pro

Drill Press

Drilling machines with V-belt

Technical Specification
Dimensions and weights
Column diameter 92 mm
Length 755 mm
Width / depth 440 mm
height 1705 mm
Weight approx. 137 kg
Drilling performance
Drilling performance steel (S235JR) 30 mm
Continuous drilling performance steel (S235JR) 25 mm
Drilling table
Workspace length 475 mm
Workspace width 425 mm
T-groove size 14 mm
rotation 360 °
Angle 45 °
Max. Distance spindle drilling table 695 mm
Electric Data
Drive motor output 1.1 kW
Supply voltage 400V
Mains frequency 50 Hz
Machine base
Max. Distance spindle machine base 1180 mm
Work area length 410 mm
Work area width 325 mm
Machine base T-groove size 16 mm
Machine base T-groove number 2
Machine base T-groove spacing 250 mm
Speed range
Speed range 120 1810 min¯¹
Number of gears 9 stages
Spindle
Quill stroke 120 mm
Chuck chuck MT4
Reach 254 mm
VPE 1

Description

Industrial engine
Easy to use safety switch according to IP 54
Digital drilling depth and speed indicator integrated in the housing
Separate emergency stop impact switch
Precision Spindle bore
Safety electronics in 24 V DC
Guaranteed concentricity less than 0.02 mm in the drill quill
Drill spindle with precision ball bearings
High quality keyless chuck
Depth stop
Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
V-belt cover with safety switch
One piece cast aluminum die-cast quill lever with softgrip handles
Large, height-adjustable protective screen with safety switch
Heavy version of the entire machine
D 33Pro
Massive, large base plate with T-slots, strongly ribbed on the back

Scope of Delivery

Keyless chuck 1 16 mm
Morse cone MK 4 / B16
T-nuts

Set Special including Machine vice BMS 150
