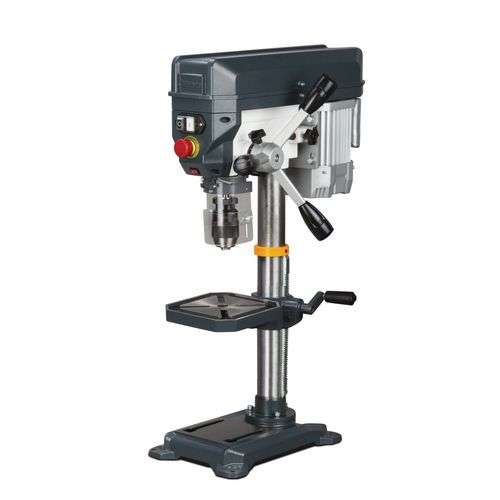

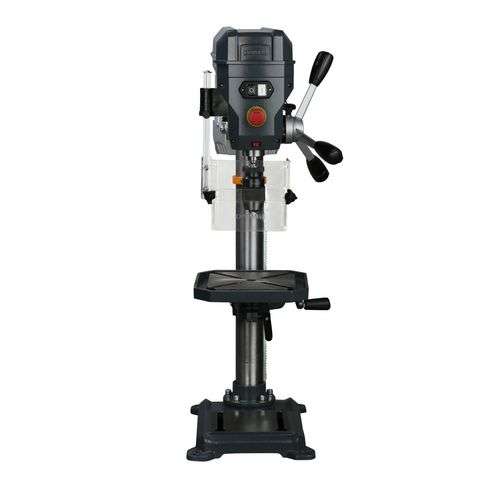

OPTIMUM - OPTIdrill DQ 18 Drill Press

Separate emergency stop stop switch
Measurement scale for drilling depth
Precisely machined, stable drilling table with diagonally running T-slots and circumferential cooling water trough
Drilling table ± 45° inclinable and 360° rotatable
One-piece die-cast aluminium quill lever with soft-grip handles
Prezision spindle drilling
Safety electrics in 24 V DC voltage
Guaranteed concentricity accuracy of less than 0.03 mm measured in the drilling sleeve
Drilling spindle with preprecision ball bearings
High-quality quick-action drill chuck

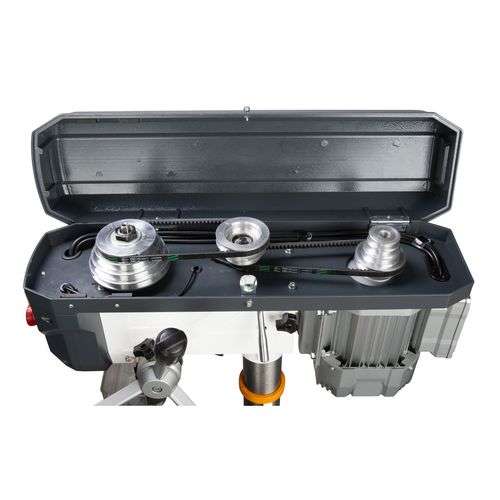

GATES quality belt
Largely dimensioned base plate with T-slots, heavily ribbed on the rear side

Dimensions and weights
Column diameter 60 mm
Length approx. 568 mm
Width/depth approx. 319 mm
Height approx. 849 mm
Weight approx. 28.5 kg
Drilling performance
Drilling performance steel (S235JR) 15.9 mm
Continuous drilling performance steel (S235JR) 14 mm
Drilling table
Workspace length 200 mm
Workspace width 200 mm
T-groove type diagonal
T-groove size 14 mm
T-groove number 2
Rotation 360 °
Angle ± 45 °
Load bearing capacity 12 kg
Max. distance spindle - drilling table 319 mm
Electrical Data
Drive motor output 0,45 kW
Supply voltage 230 V
Mains frequency 50 Hz
Machine base
Max. distance spindle - machine base 518 mm
Work area length 145 mm
Work area width 143 mm
Speed range
Speed range 600 2400 min¯¹
Number of gears 5 Steps
Spindle
Quill stroke 65 mm
Spindle chuck MK 2
Reach 127 mm
VPE 1 Unit: pc(s).
Packaging unit: 1

Quick action drill chuck 1 - 16 mm
Morse taper MK 2/B16
T-nuts
