The Optimum Optiturn Lathe 2807VB is a high-performance metalworking lathe designed for precision, reliability, and efficiency. Built with rigid cast-iron construction, it offers superior stability and vibration resistance, ensuring smooth and accurate machining for industrial and workshop use.
Equipped with variable speed control, this lathe allows for precise adjustments to suit various materials and machining requirements. Its high-precision spindle bearings enhance accuracy, making it ideal for turning, threading, and detailed cutting applications.
🔹 Key Features:
High-precision spindle bearings for smooth and accurate machining
Variable speed control for flexible operation across materials
Rigid cast-iron construction for durability and stability
Adjustable carriage and tailstock for versatile machining tasks
Ideal for industrial workshops and precision engineering
Whether you need a lathe for high-volume production or one-off precision machining, the Optimum Optiturn Lathe 2807VB delivers the power and accuracy required for professional results.

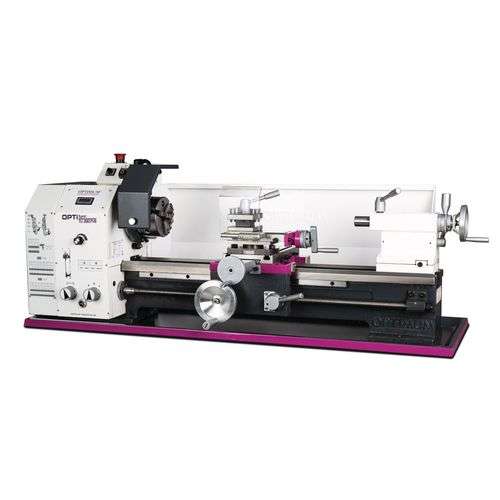

Optimum Optiturn Lathe 2807VB Variable Speed
Dimensions and weights
Length approx. 1370 mm
Width/depth approx. 660 mm
Height approx. 440 mm
Weight approx. 188 kg
Electrical Data
Drive motor output 1,1 kW
Supply voltage 230 V
Mains frequency 50 Hz
Feed
Longitudinal feed range 0,07 0,4 mm/rev
Number of longitudinal feeds 6
Pitches
Metric pitch 0,2 3,5 mm/rev
Number of metric pitches 18
Imperial pitch 56 8 Gg/1"
Number of imperial pitches 21
Speed range
Number of gears 2
Speed range 150 2500 min¯¹
Speed control electronically adjustable
Spindle
Spindle chuck short taper
Spindle bore/rod passage diameter 26 mm
Tool holder max. chuck height 12 mm
Spindle cone MT 4

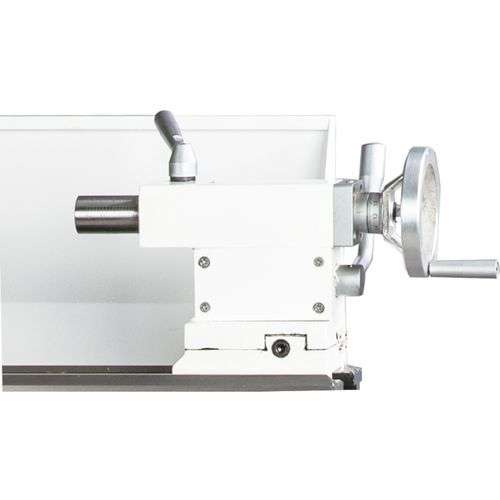

Tailstock
Chuck MK 2
Quill stroke 85 mm
Quill diameter 30 mm
Travel
Travel upper slide 60 mm
Travel cross slide 160 mm
Travel carriage saddle 580 mm
Work areas
Max. height 140 mm
Max. width 700 mm
Swing diameter above machine bed 266 mm
Swing diameter above planing slide 170 mm
Bed width 180 mm
VPE 1
SCOPE OF DELIVERY:
Three-jaw lathe chuck Ø 125 mm, centric clamping
Fixed centering point MK 2 and MK 4
Quadruple steel holder 12 mm
HSS lathe tool
Bulkhead
Chip pan
Change gear set
Operating tool
*PLEASE NOTE*
Lathe stand as show in images SOLD SEPERATELY.
Product code: 3440409
