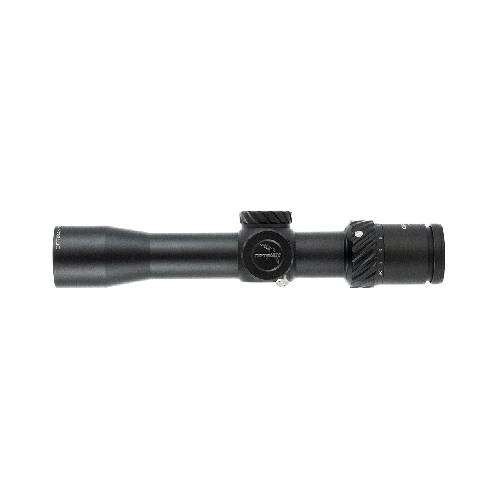

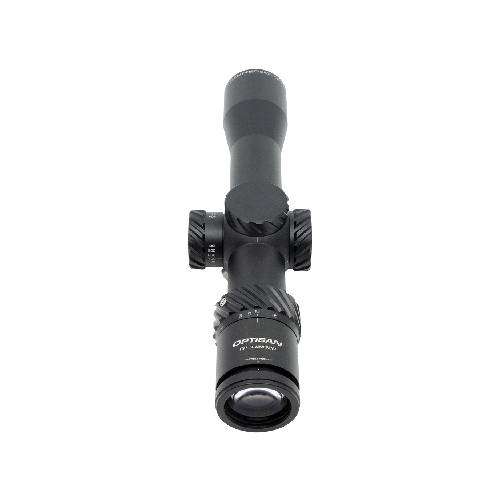

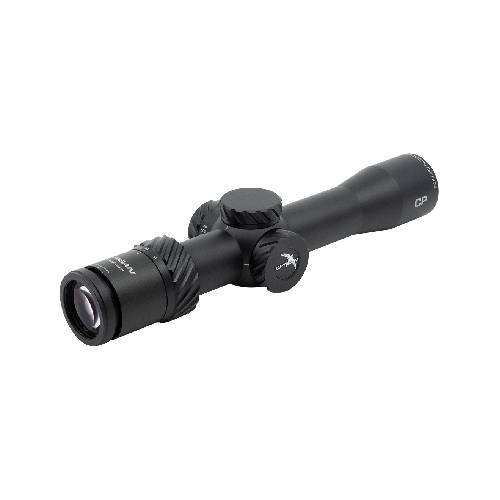

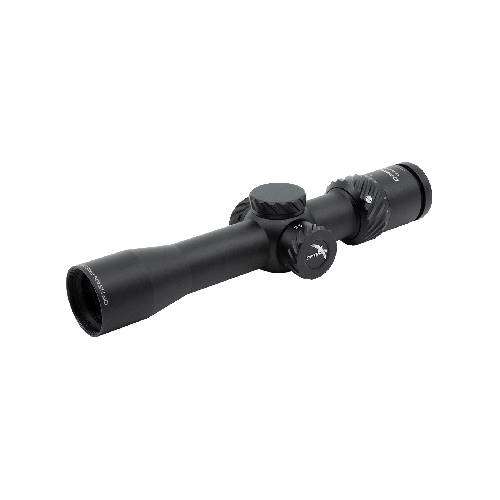

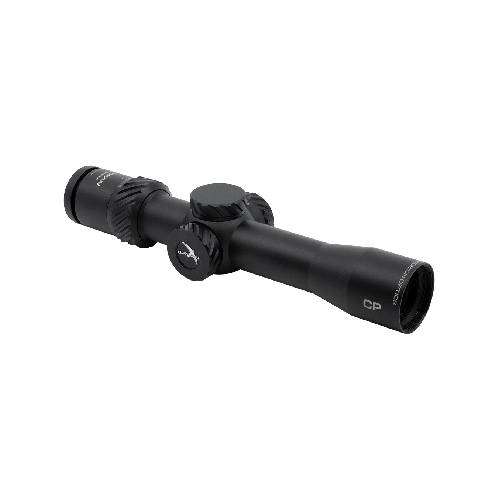

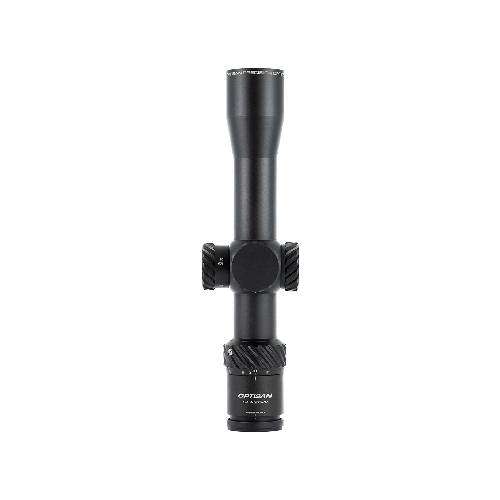

OPTISAN 04002 CP 3-12X32P
Optisan co-develops shooting systems with top shooters to withstand the rigors of the field while excelling at the demands of competition. Our meticulous testing and constant improvements have won the approval of European champion shooters. Before it becomes part of your shooting system, each of the 90-150 components that will become your optic are subjected to more than 200 quality control points, all of which are done 100% in-house.
Compact design
Only 25.4 cm in length and less than 0.48 kg the CP is the perfect partner for compact and lightweight rifles.
Minimized Parallax error
With a 32mm objective lens, the CP is able to minimize the effects of Parallax error. This means you have a scope that experiences very small shifts of impact as you change your head position or distance to target.
This means that you can leave the parallax fixed and shoot targets at different distances without experiencing a shift of point of impact, this is very helpful in many competitive shooting situations.
The parallax adjustment range is from 10 yards up to 500 yards to infinity.
Springer Rated
Field-tested by champion shooters for more than one year on springer rifle. It is a robust riflescope that is capable of use on centerfire rifles.
Sleek Design
+ Extremely low-profile turret
All stainless steel extremely low profile turret with 10 mrad of adjustment per turn. No obstruction of view even when a night vision eyepiece is attached.
What comes in the box:
2.5'' sunshade, Lens covers.
| OPTICAL DATA |
|---|
| Magnification (High) | 12X |
| Magnification (Low) | 3X |
| Objective Diameter (mm) | 32mm |
| Outer dia. Objective (mm) | 40mm |
| FOV (min.mag(ft/100yds) | 36 |
| FOV (max.mag(ft/100yds) | 9 |
| Eye relief (in) | 3.5" - 3.3" |
| Exit Pupil (Max mag. (mm) | 2.6 mm |
| Exit Pupil (min. mag. (mm) | 10.6 mm |
| Diopter Range (dpt) | +/- 2.0 |
| Parallax Adjustment | 10yds - infinity (100yds pa free) |
| Coating | Fully Multi-coated |
| MECHANICAL DATA |
|---|
| Tube Construction | One-piece tube, aircraft aluminum |
| Elevation Adjustment (value per click) | 0.1 mrad |
| Windage Adjustment (value per click) | 0.1 mrad |
| Turret Style (Elevation) | Low-profile, Zero-resettable |
| Turret Style (Windage) | Low-profile, Zero-resettable |
| Travel Per Rotation | 10 mrad |
| Elevation adj. range | 20 mrad |
| Windage adj. range | 20 mrad |
| Eye Piece Diameter (in) | 1.55'' |
| Eye Piece Diameter (mm) | 39.5 mm |
| Eye Piece Length (in) | 1.08'' |
| Eye Piece Length (mm) | 27.55 mm |
| Mounting Length rear (mm) | 55.70 mm |
| Mounting Length front (mm) | 30.00 mm |
| Tube Dia. (mm) | 30 mm |
| Length (in) | 9.52'' |
| Length (mm) | 242mm |
| Weight (g) | 487 |
| Weight (oz) | 17.17 |
| Surface Finish | Matte Black |
| ENVIRONMENT DATA |
|---|
| Functional temperature | -20 ~ 50 degree celcius |
| Storage temperature | -20 ~ 50 degree celcius |
| Submersion tightness | JIS 7 |
| RETICLE DATA |
|---|
| Reticle | SFPMH10X |
| Calibrated Ranging Power | 10X |
| Focal plane | Second |
| Illumination | Non-illuminated |
| DELIVERY INCLUDE |
|---|
| Standard Accessories | 2.5'' sunshade
Lens covers |
