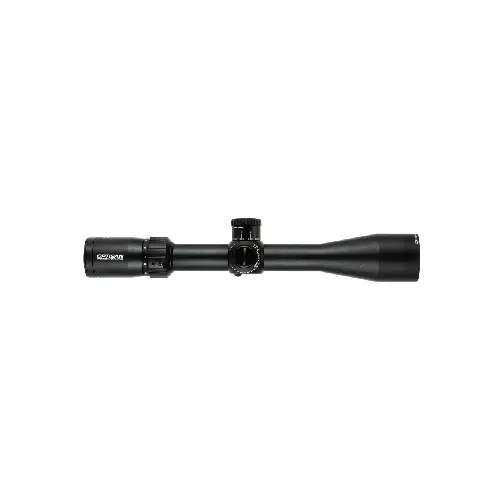

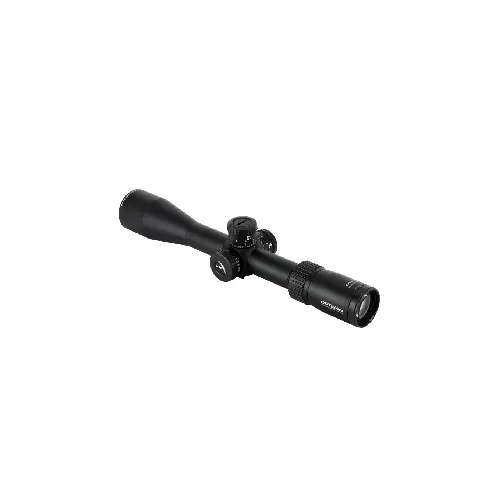

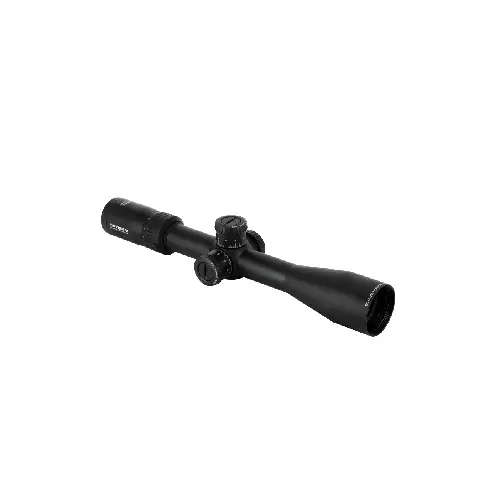

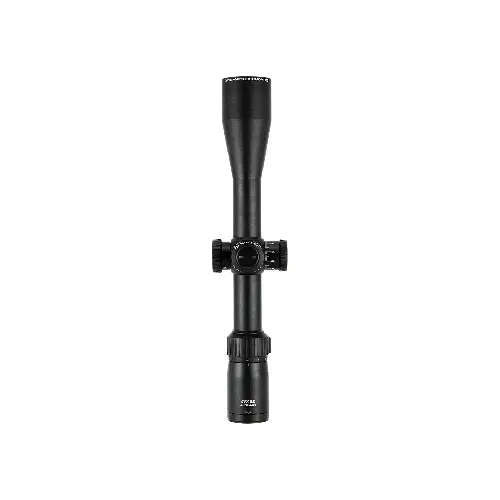

OPTISAN 04004 EVX G2 4-16X44F1
Optisan co-develops shooting systems with top shooters to withstand the rigors of the field while excelling at the demands of competition. Our meticulous testing and constant improvements have won the approval of European champion shooters. Before it becomes part of your shooting system, each of the 90-150 components that will become your optic are subjected to more than 200 quality control points, all of which are done 100% in-house.
Design for precision shooters
The EVX Gen II model expands on the dependable and consistent reputation established by our EVX line during its 15+ years of service. It has been meticulously crafted to deliver sub-MOA accuracy for precision shooting and has undergone rigorous field testing to ensure it can withstand muzzle velocities of up to 6000j post-barrel. With its Japanese optical system, this rifle scope delivers exceptional high-resolution imaging at high magnification levels, while still providing shooters with a comfortable eye box.

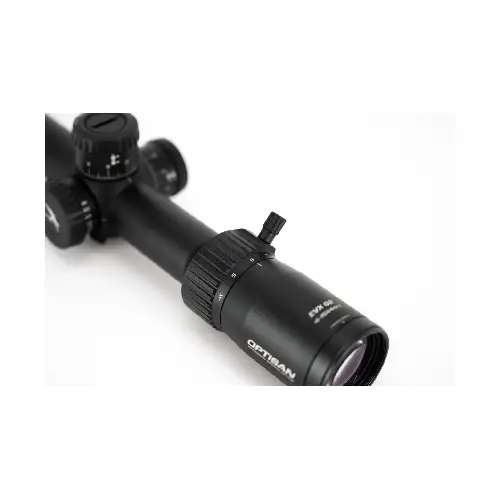

Stainless steel tactical turret
The distinguishing feature of the EVX scope is its stainless steel turret, which produces a distinct and audible clicking sound, providing shooters with clear feedback. The turret can be locked in place by pushing or pulling it, and resetting the zero is as easy as turning the coin-removable cap located on the top of the turret. Additionally, for those who wish to engrave their hold-over markings, an empty turret is included in the package.
In addition, all EVX scopes are now available in either MIL/MIL (10 MIL per turn) or MOA/MOA (20 MOA per turn), matching the turret/reticle configuration. Furthermore, the scope features a revamped mil-hash reticle that provides long-range holdover capabilities.
Springer Rated
EVX Gen II has undergone extensive testing by champion shooters for over a year, using a springer rifle. It has proven to be durable and reliable, making it suitable for use with centerfire rifles as well.
What comes in the box:
3" sunshade, Throw lever, Empty turret, Lens covers.
| OPTICAL DATA |
|---|
| Magnification (High) | 16X |
| Magnification (Low) | 4X |
| Objective Diameter (mm) | 44mm |
| Outer dia. Objective (mm) | 52mm |
| FOV (min.mag(ft/100yds) | 27.2 |
| FOV (max.mag(ft/100yds) | 6.5 |
| Eye relief (in) | 3.8'' - 3.5'' |
| Exit Pupil (Max mag. (mm) | 2.75mm |
| Exit Pupil (min. mag. (mm) | 11mm |
| Diopter Range (dpt) | +/- 2.0 |
| Parallax Adjustment | 10yds - infinity (100 yds pa free) |
| Coating | Fully multi-coated |
| MECHANICAL DATA |
|---|
| Tube Construction | One-piece tube, aircraft aluminum |
| Elevation Adjustment (value per click) | 0.1 mrad |
| Windage Adjustment (value per click) | 0.1 mrad |
| Turret Style (Elevation) | Lockable Target Turret |
| Turret Style (Windage) | Lockable Target Turret |
| Travel Per Rotation | 10 MRAD |
| Elevation adj. range | 20.40 mrad |
| Windage adj. range | 14 mrad |
| Eye Piece Diameter (in) | 1.73'' |
| Eye Piece Diameter (mm) | 44mm |
| Eye Piece Length (in) | 2.15'' |
| Eye Piece Length (mm) | 51.2mm |
| Mounting Length rear (mm) | 56.5mm |
| Mounting Length Front (mm) | 58.5mm |
| Tube Dia. (mm) | 30mm |
| Length (in) | 13.81'' |
| Length (mm) | 351mm |
| Weight (g) | 748g |
| Weight (oz) | 26.38oz |
| Surface Finish | Matte Black |
| ENVIRONMENT DATA |
|---|
| Functional temperature | -20 ~ 50 degree celcius |
| Storage temperature | -20 ~ 50 degree celcius |
| Submersion tightness | JIS 7 |
| RETICLE DATA |
|---|
| Reticle | F1MRAD16 |
| Calibrated Ranging Power | Not applicable |
| Focal plane | First |
| Illumination | Non-illuminated |
| DELIVERY INCLUDE |
|---|
| Standard Accessories | Lens covers blank elevation turret dial, 3'' sunshade, speed lever. |
