Compact design for the Optisan 04010 CP 4-16X40F1
Only 27 cm length and just 530g the CP is the perfect partner for compact and lightweight rifles.
Minimized Parallax error
With 40mm objective lens the CP is able to minimise the effects of Parallax error. This means you have a scope that experiences very small shifts of impact as you change your head position or distance to target.
This means that you can leave the parallax fixed and shoot targets at different distances without experiencing a shift of point of impact, this is very helpful in many competitive shooting situations.
Parallax adjustment range is from 10 yards up to 500 yards to infinity.
Springer Rated
Field-tested by champion shooters for more than one year on springer rifle. It is a robust riflescope that is capable of use on centerfire rifles.
Sleek Design
+ Extremely low profile turret
All stainless steel extremely low profile turret with 20 moa of adjustment per turn. No obstruction of view even when night vision eyepiece is attached.
What comes in the box:
2.5" sunshade, Lens covers.
Optisan 04010 CP 4-16X40F1 Reticle F1MOA16

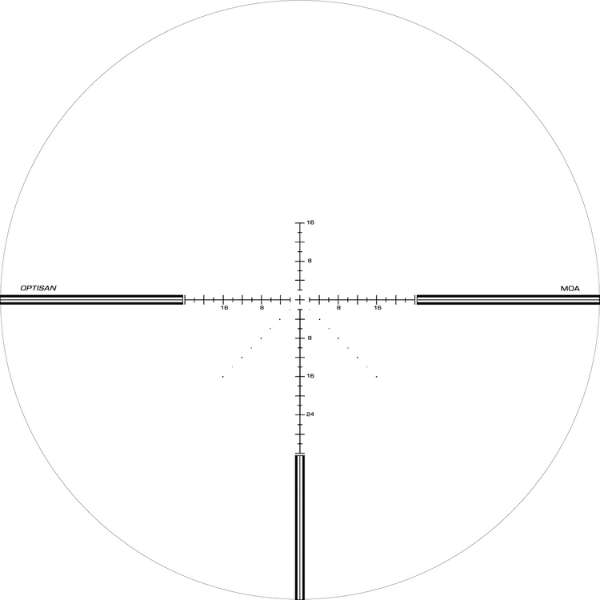

FULL VIEW
The F1MOA16 reticle is an all-round MOA based reticle designed for precision ranging at all magnifications with uncluttered view and fine windage correction reference marks.
SUBTENSION DETAIL
The graphic on the right shows how the reticle looks like at 8x, subtensions remain constant at all magnifications. The overall reticle image will vary with changes in the magnification.
OPTICAL DATA
- Magnification (High) 16X ±5%
- Magnification (Low) 4X ±5%
- Objective Diameter (mm) 40mm
- Outer dia. Objective (mm) 48mm
- FOV (min.mag）(ft/100yds) 26.20
- FOV (max.mag）(ft/100yds) 6.55
- Eye relief (in) 3.5" 3.3"
- Exit Pupil (Max mag.） (mm) 2.5 mm
- Exit Pupil (min. mag.） (mm) 10 mm
- Diopter Range (dpt) +/- 2.0
- Parallax Adjustment 10yds infinity (100yds pa free)
- Coating Fully Multi-coated
MECHANICAL DATA
- Tube Construction One-piece tube, aircraft aluminum
- Elevation Adjustment (value per click) 1/4 moa
- Windage Adjustment (value per click) 1/4 moa
- Turret Style (Elevation) Low profile
- Turret Style (Windage) Low profile
- Travel Per Rotation 10 mrad
- Elevation adj. range 18 mrad
- Windage adj. range 18 mrad
- Eye Piece Diameter (in) 1.55"
- Eye Piece Diameter (mm) 39.5 mm
- Eye Piece Length (in) 1.08"
- Eye Piece Length (mm) 27.55 mm
- Mounting Length rear (mm) 55.70 mm
- Mounting Length front (mm) 30.00 mm
- Tube Dia. (mm) 30 mmLength (in) 10.55"
- Length (mm) 268mm
- Weight (g) 530g
- Weight (oz) 18.69 oz
- Surface Finish Matte Black
ENVIRONMENT DATA
RETICLE DATA
- Reticle F1MOA16
- Focal plane FFP
- Illumination Non-illuminated
DELIVERY INCLUDE
- Standard Accessories 2.5" sunshade, ABS flip up covers
