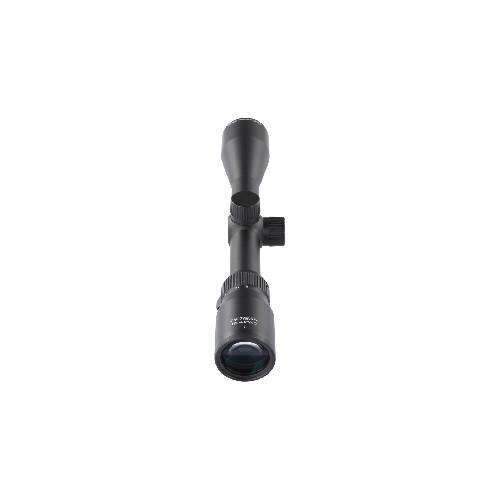

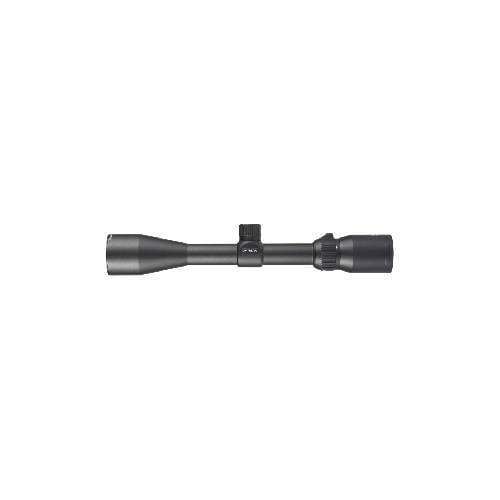

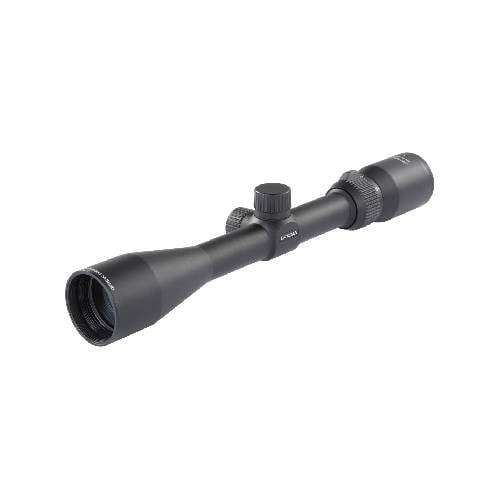

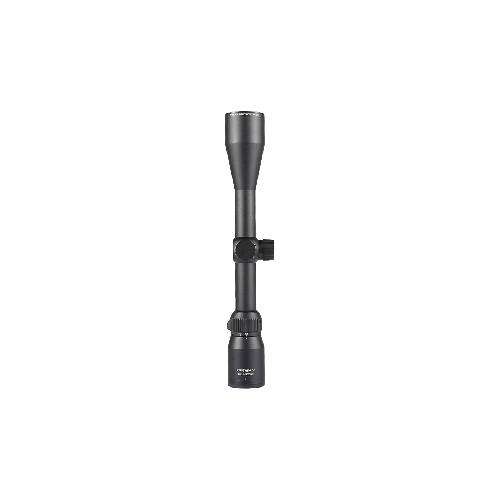

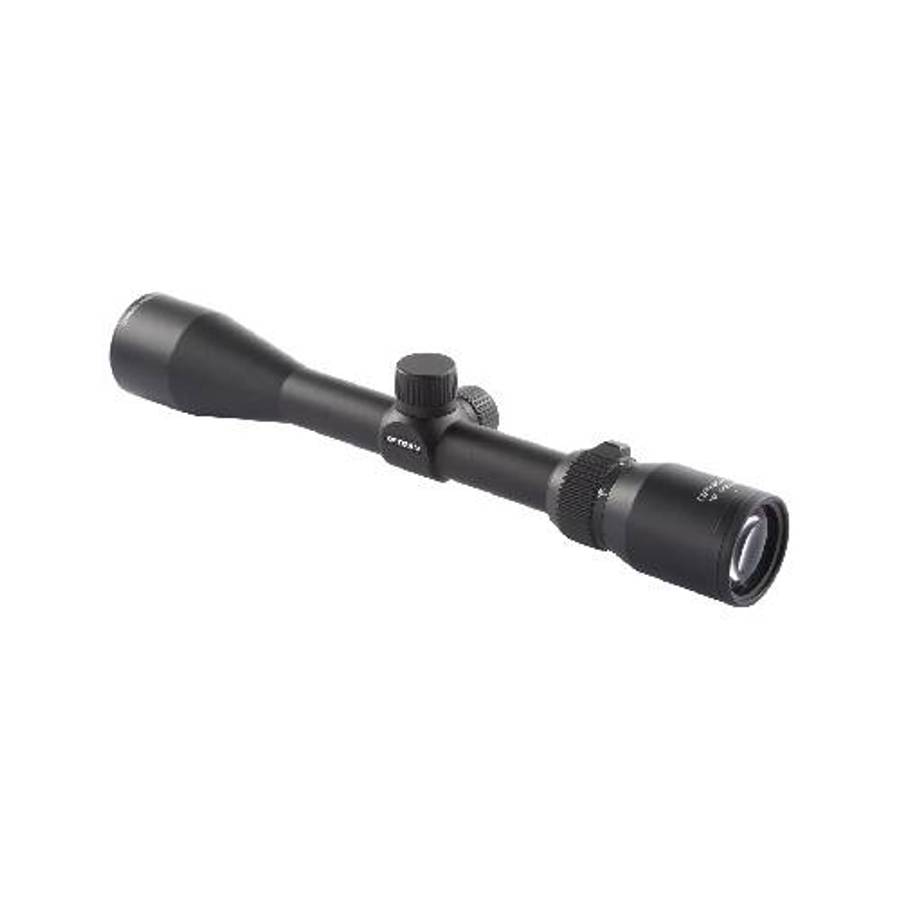

OPTISAN 37504 HX 4-12X40 DUPLEX

2 available / new
Only 2 left – grab it before it’s gone!
R4,470.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 4 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
RNS38051
Bob Shop ID
591648405

OPTISAN 37504 HX 4-12X40 DUPLEX



Optisan co-develops shooting systems with top shooters to withstand the rigors of the field while excelling at the demands of competition. Our meticulous testing and constant improvements have won the approval of European champion shooters. Before it becomes part of your shooting system, each of the 90-150 components that will become your optic are subjected to more than 200 quality control points, all of which are done 100% in-house



Description



The new HX line is Optisan new entry-level scopes redesigned to have a 25% larger field of view than most existing 3-9X40 in the market. They are built as a family of simple sturdy scope that holds most magnum centerfire calibers such as .270 Win .308, .30-06. Windage elevation adjustment comes with a no-tool-required finger resettable zero feature. Choice of the reticle for non-AO HX scopes include (a) standard duplex reticle and (b) BCR reticle (ballistic compensated reticle) both are good for most centerfire magnum caliber. Duplex for shooters looking for classic simple crosshair and BCR for precise holdover marks up to 500 yards. For rimfire / air-rifle target shooters, we have HX 4-12X40AO ready with parallax free at 35 yards. Reticle comes in an enhanced mildot reticle.



OPTICAL DATA
Magnification (High)12X
Magnification (Low)4X
Objective Diameter (mm)40mm
Outer dia. Objective (mm)48mm
FOV (min.mag(ft/100yds)34
FOV (max.mag(ft/100yds)11.35
Eye relief (in)3.5'' - 3.3''
Exit Pupil (Max mag. (mm)3.33mm
Exit Pupil (min. mag. (mm)10mm
Diopter Range (dpt)+2/-3
Parallax AdjustmentParallax free at 100yds
CoatingFully Multi-coated
MECHANICAL DATA
Tube ConstructionOne-piece tube, aircraft aluminum
Elevation Adjustment (value per click)1/4 MOA
Windage Adjustment (value per click)1/4 MOA
Turret Style (Elevation)Low profile, tooless resettable zero
Turret Style (Windage)Low profile, tooless resettable zero
Travel Per Rotation12 MOA
Elevation adj. range>= 40 MOA
Windage adj. range>= 40 MOA
Eye Piece Diameter (in)1.76''
Eye Piece Diameter (mm)44.8mm
Eye Piece Length (in)3.42''
Eye Piece Length (mm)87mm
Mounting Length rear (mm)55.6mm
Mounting Length front (mm)57mm
Tube Dia. (mm)25.4mm
Length (in)12.52''
Length (mm)318mm
Weight (g)430g
Weight (oz)15.16oz
Surface FinishMatte Black
ENVIRONMENT DATA
Functional temperature-20 ~ 50 degree celcius
Storage temperature-20 ~ 50 degree celcius
Submersion tightnessJIS 7
RETICLE DATA
ReticleDuplex
Calibrated Ranging Power12X
Focal planeSecond
IlluminationNon illuminated



Check out other Optisan Products

Manufacturer Website
