Optisan 37569 EVE 2.5-10X50I The EVE line from Optisan is designed and engineered with rugged precision for hunters to take on every challenge. EVE 2.5-10X50i is an all round hunting scope that gives benefit of huge field of view at 2.5X and precision shot placement at 10X. Comes with a simple clean German No.4 reticle that block minimal target possible enabling quick target acquisition and a fine aiming red dot fine enough to allow precision shot up to 300 yards.
MIL-G4Ai10X

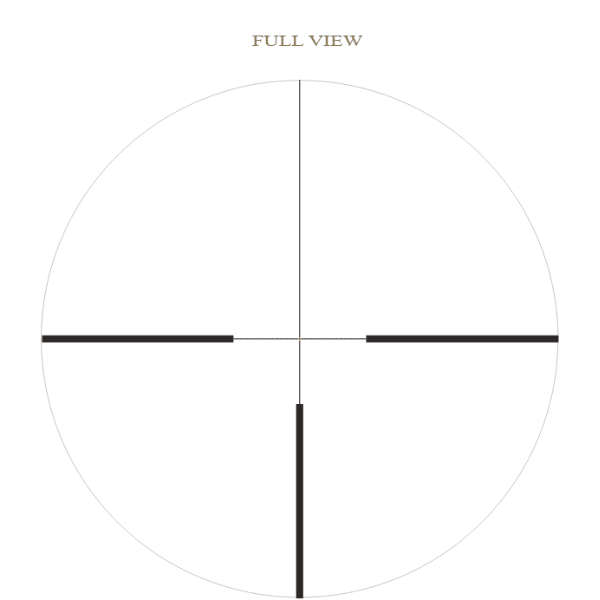

The G4Ai10X is a second focal plane reticle that is designed for quick target engagement with three plex and a fine dot for precise shot placement. Subtension detail for the EVE 2.5-10X50i with MIL-G4Ai10X reticle as below. Reticle subtensions correct at 10X.
Second focal plane reticle. Reticle subtensions correct at 10X. Subtension detail for the EVE 2.5-10X50i with MIL-G4Ai10X reticle shown above. Reticle illuminated in red as shown.
OPTICAL DATA
- Magnification (High) 10X
- Magnification (Low) 2.5X
- Objective Diameter (mm) 50mm
- Outer dia. Objective (mm) 59mm
- FOV (min.mag）(ft/100yds) 42
- FOV (max.mag）(ft/100yds) 10.5
- Eye relief (in) 3.8" 3.5"
- Exit Pupil (Max mag.） (mm) 5mm
- Exit Pupil (min. mag.） (mm) 20mm
- Diopter Range (dpt) +2/-2
- Parallax Adjustment Parallax free at 100yds
- Coating Fully Multi-coated
MECHANICAL DATA
- Tube Construction One-piece tube, aircraft aluminium
- Elevation Adjustment (value per click) 0.1 mrad
- Windage Adjustment (value per click) 0.1 mrad
- Turret Style (Elevation) Low profile, tooless resettable zero
- Turret Style (Windage) Low profile, tooless resettable zero
- Travel Per Rotation 6 mil
- Elevation adj. range >= 15 mil
- Windage adj. range >= 15 mil
- Eye Piece Diameter (in) 1.73"
- Eye Piece Diameter (mm) 44mm
- Eye Piece Length (in) 2"
- Eye Piece Length (mm) 51.2mm
- Mounting Length rear (mm) 58mm
- Mounting Length front (mm) 48mm
- Tube Dia. (mm) 30mm
- Length (in) 13.26"
- Length (mm) 337mm
- Weight (g) 664g
- Weight (oz) 23.42oz
- Surface Finish Matte Black
ENVIRONMENT DATA
- Functional temperature -20 ~ 50 degree celsius
- Storage temperature -20 ~ 50 degree celsius
- Submersion tightness JIS 7
RETICLE DATA
- Reticle MIL-G4Ai10X
- Calibrated Ranging Power 10X
- Focal plane Second
- Illumination 6 Steps illumination with off setting in between
DELIVERY INCLUDE
- Standard Accessories 3 Sunshade
- ABS filp up covers
