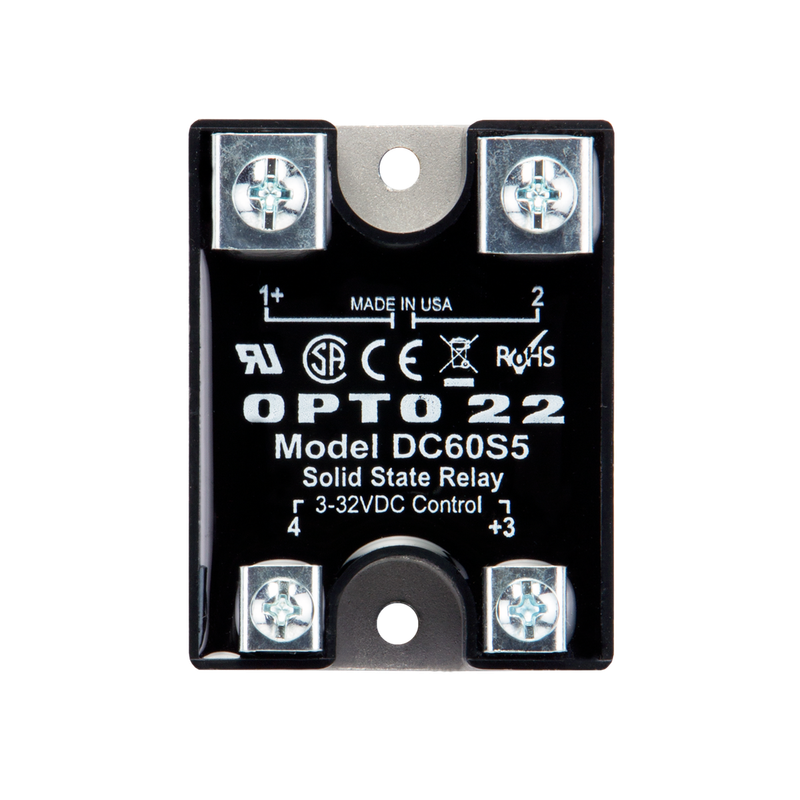

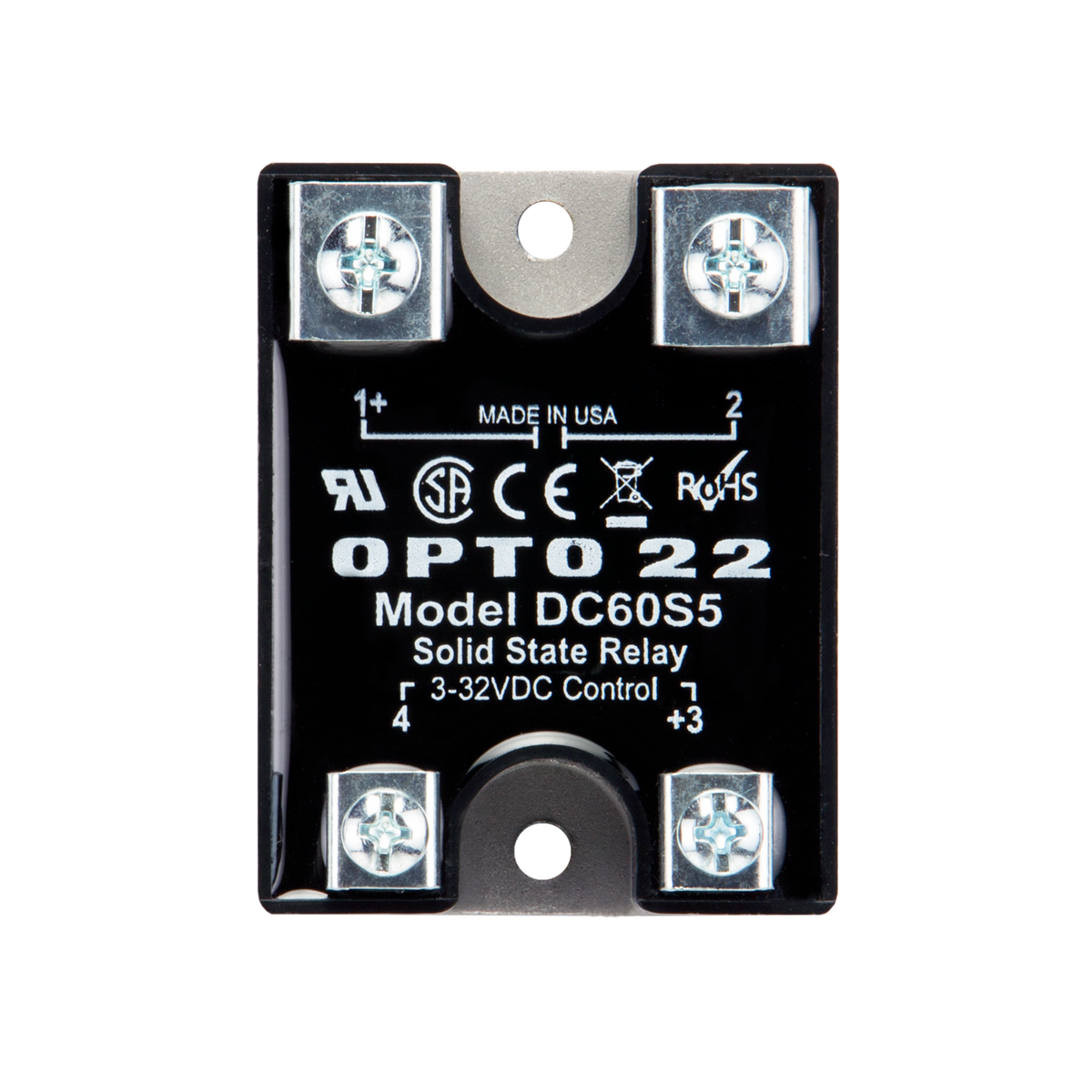

Product InformationContact Configuration: -Load Current: 5AOperating Voltage Max: 60VDCRelay Mounting: Panel MountRelay Terminals: ScrewSwitching Mode: DC SwitchOperating Voltage Min: 5VDCControl Voltage Min: 3VDCControl Voltage Max: 32VDCProduct Range: DCProduct OverviewThe DC60S5 is a Solid State Relay with aluminium base plate, UL94V-0 housing,SPST-NO contact, DC switching mode and screw terminals. This DC60-series panelmount relay features improved SEMS screw and washer, redesigned housing withanti-rotation barriers.Epoxy-free designAC or DC ControlBi-polar transistor output1.2VDC Maximum on-state voltage drop4000Vrms Dielectric strength1500R Nominal input impedance0.1ms Turn-on and 0.3µs Turn-off maximum time-30 to 80°C Ambient operating temperature rangeApplicationsIndustrial
