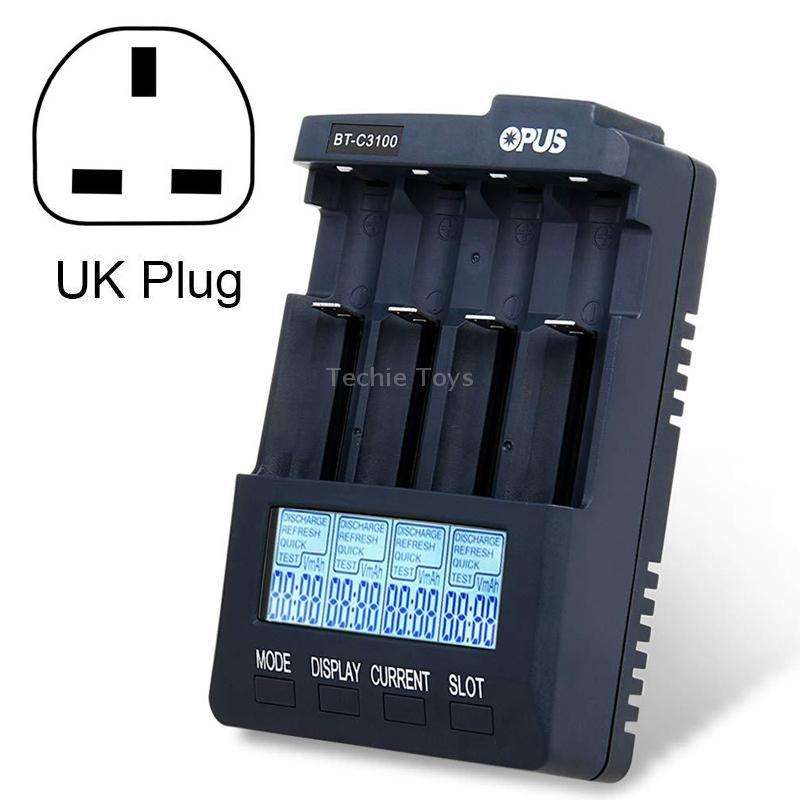

OPUS BT-C3100 Smart Smart Digital Intelligent 4-Slot Battery Charger(UK Plug)
TBD0579132301C

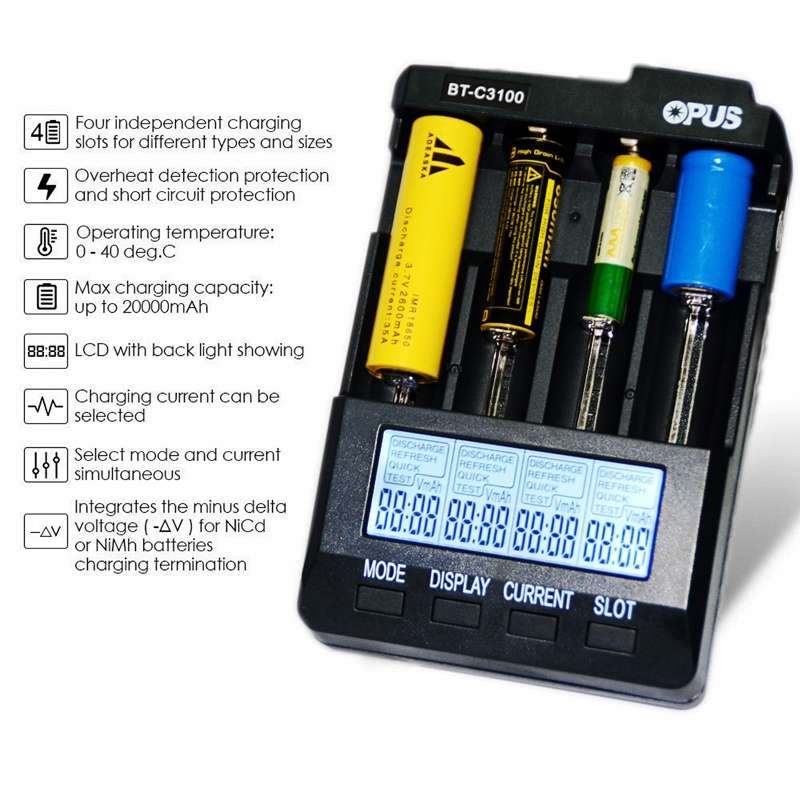

1. Four independent charging channels: With independent charging control chip, precise control of the charging situation of each charging slot, the working power of the charger is 12V-3A, and a dedicated DC switching power supply is used
2. There are four levels of charging current available for selection, 200/300/500/700/1000mA, among which, if there is only 1, 4 channels with batteries, the current levels are: 200/300/500/700/1000 / 1500/2000mA, the discharge battery can be set to 200/300/500/700/1000mA
3. The discharging mode does not switch to charging, and the battery discharge capacity is displayed. In charging mode, the 4.21V charger is judged to be fully charged
4. LCD screen: Can display the real-time charge/discharge capacity, voltage, current, and time of the 4 channels of batteries
5. Four working modes: Charge, discharge, repair and capacity test and battery internal resistance test

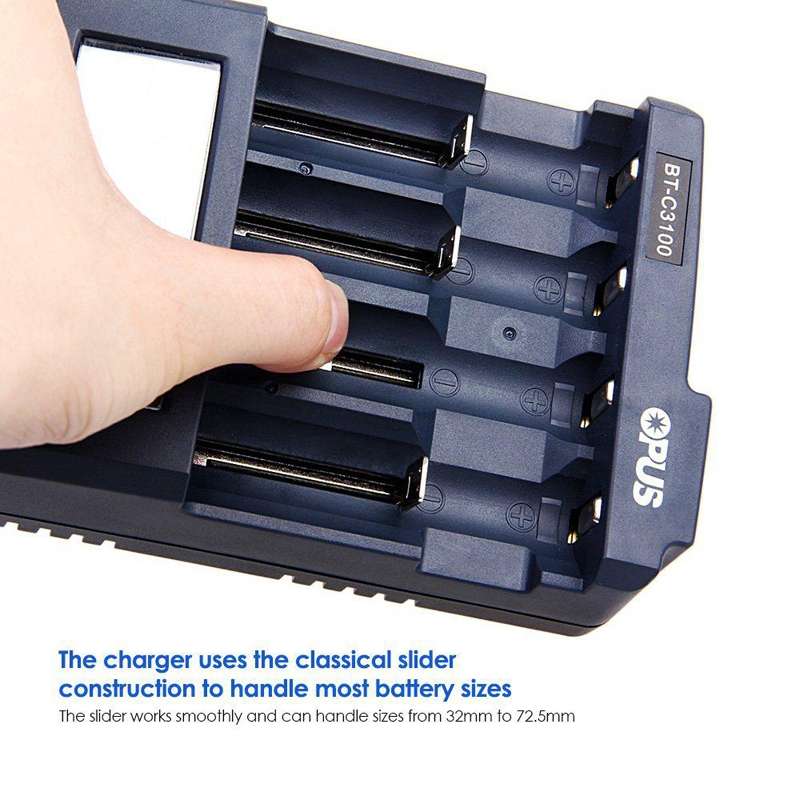

6. Applicable battery type: Lithium battery, model: 10440, 14500, 16340, 18500, 18650, 26650, 26500; Ni-MH battery, model: AA, AAA, C, D
7. Working temperature: 0 to 40 degrees celsius

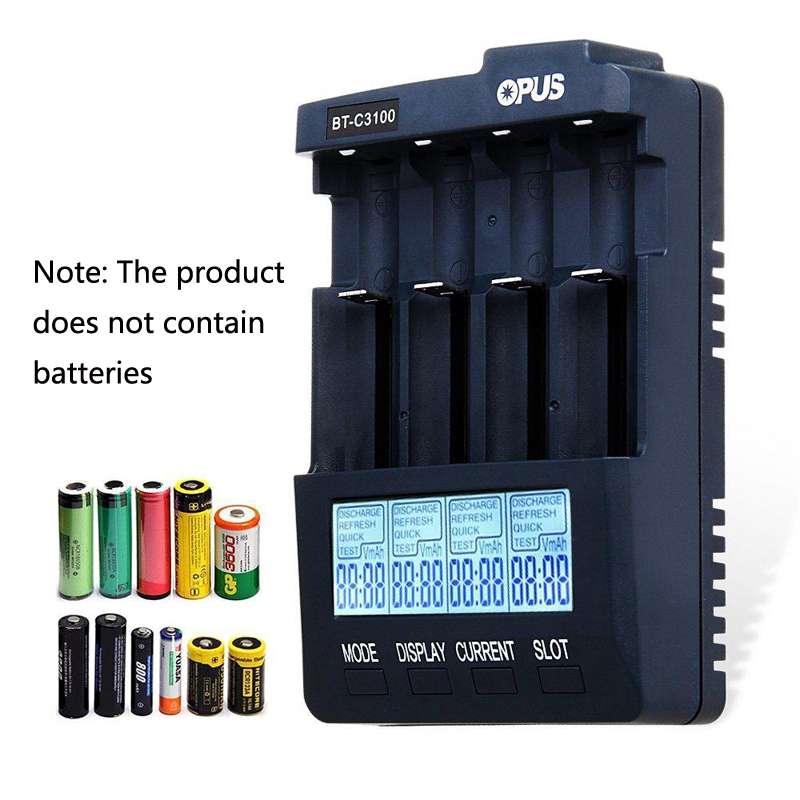

8. Note: The product does not contain batteries

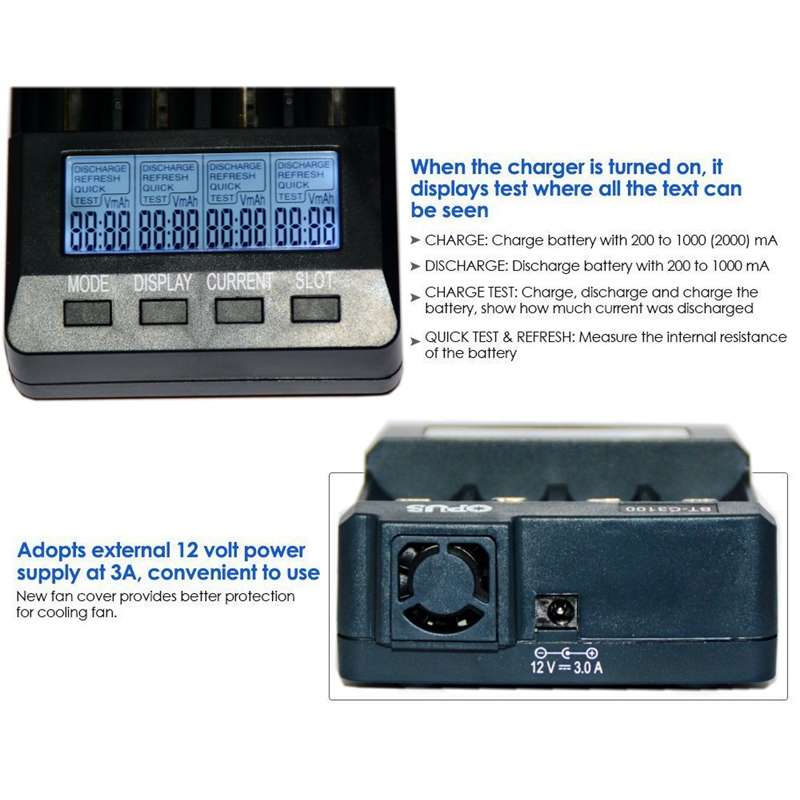

Function button:
1. MODE operating mode selection button
2. DISPLAY display mode button
3. CURRENT current adjustment button
4. SLOT, can individually adjust the working mode of each channel
The specific operation method of the charger:
1. Long press MODE for 2 seconds to enter the working mode to select, and then press this key to have four working modes to choose from, namely charge, discharge, repair capacity test and battery internal resistance test
2. Press DISPLAY to display the charge current, battery voltage, battery power, and battery charge and discharge time respectively.
3. When power on, the charger defaults to the charging mode and the charging current is 500mA
4. When powering on, press CURRENT to adjust the current. When entering work, if you want to adjust the current again, you need to switch the working mode to press this key to be effective. The charge and discharge current can be adjusted.
5. Press SLOT to adjust the working mode of each channel individually
6. When the temperature of the battery exceeds 40 degrees when the battery is charged or the temperature of the PCB board exceeds 40 degrees, the fan will start to rotate.
7. Select the capacity test working mode, the current can be the same as charging
