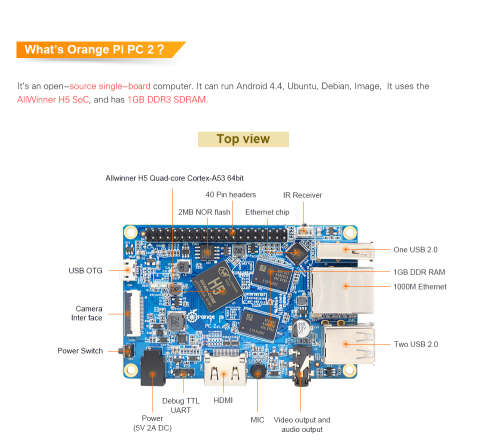

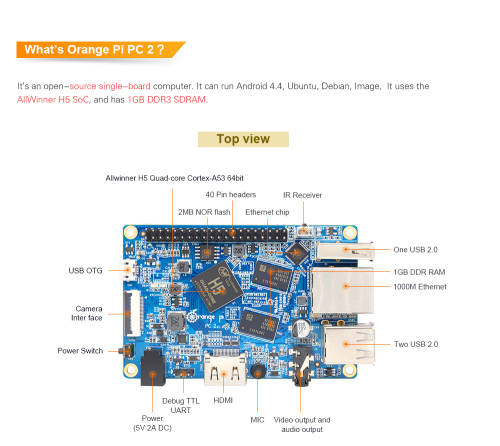

Hardware specification
CPU
• H5 High Performance Quad-core 64-bit Cortex-A53
• Integrated multimedia acceleration engine
• Hardware Java acceleration
• Integrated hardware floating-point coprocessor
GPU
• Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage
• High Performance Hexa-core Mali450
• OpenGL ES 2.0/1.1/1.0, OpenVG 1.1, EGL
• 40 GFlops, Pixel fill rate greater than 2.7GPixel/s
Memory (SDRAM)
1GB DDR3 (shared with GPU)
Onboard Storage
TF card (Max. 32GB) / NOR flash(2MB)
Onboard Network
1000M/100M Ethernet RJ45
Video Input
A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Video Outputs
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS
Audio Output
3.5 mm Jack and HDMI
Power Source
DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports
Three USB 2.0 HOST, one USB 2.0 OTG
Buttons
Power Button(SW4)
Low-level peripherals
40 Pins Header,compatible with Raspberry Pi B+
GPIO(1x3) pin
UART, ground.
LED
Power led & Status led
Key
IR input, POWER
Supported OS
Android, Ubuntu, Debian, Raspbian
Product size
85 mm × 55mm
Weight
70g
