- Who’s it for?

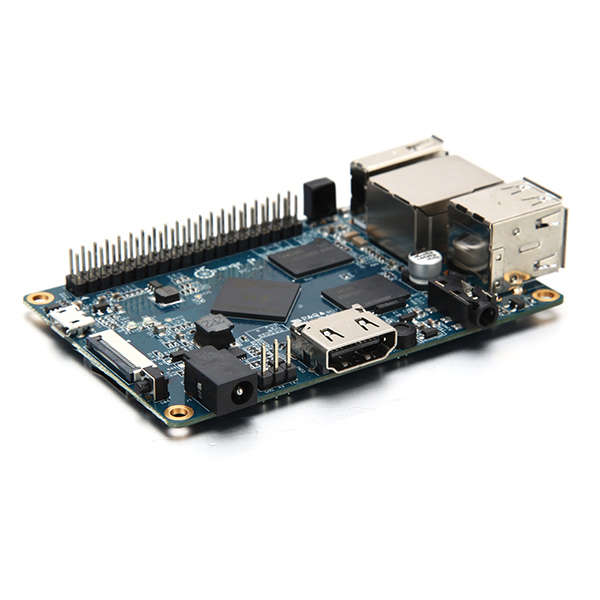

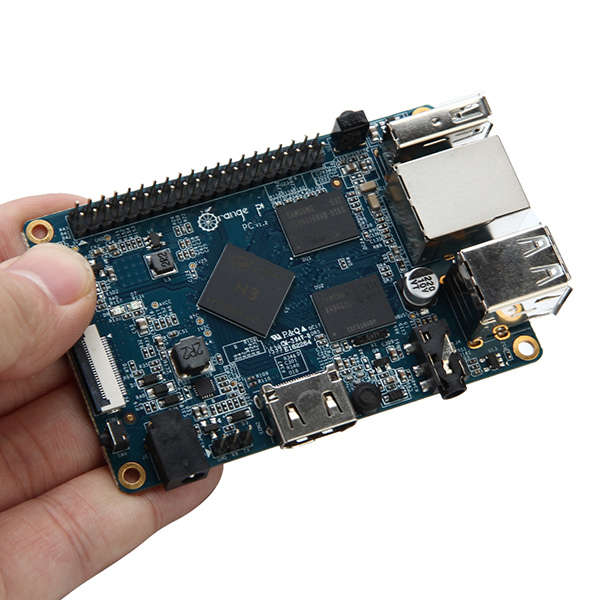

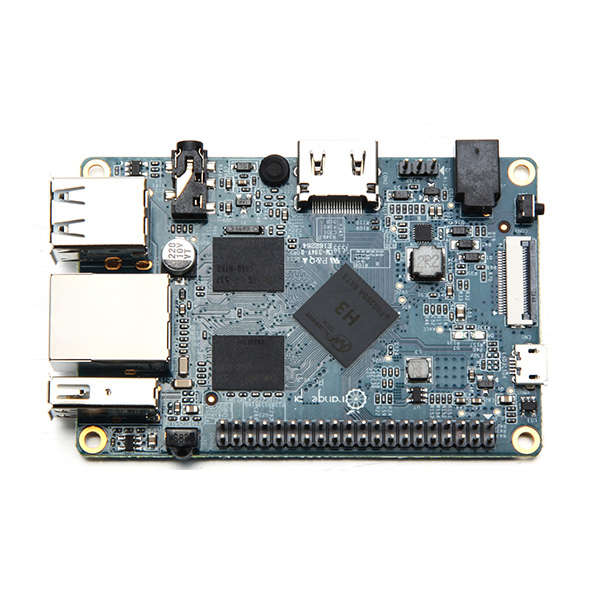

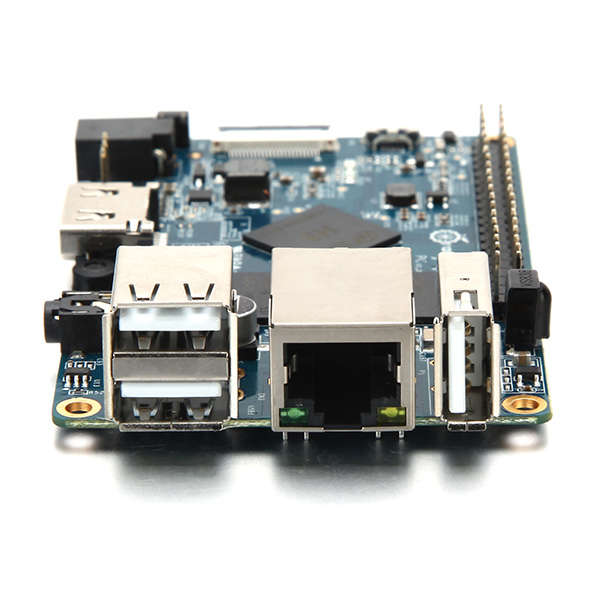

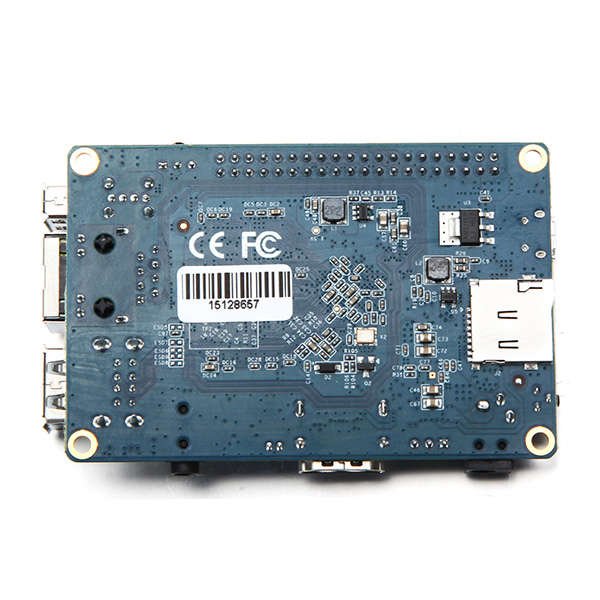

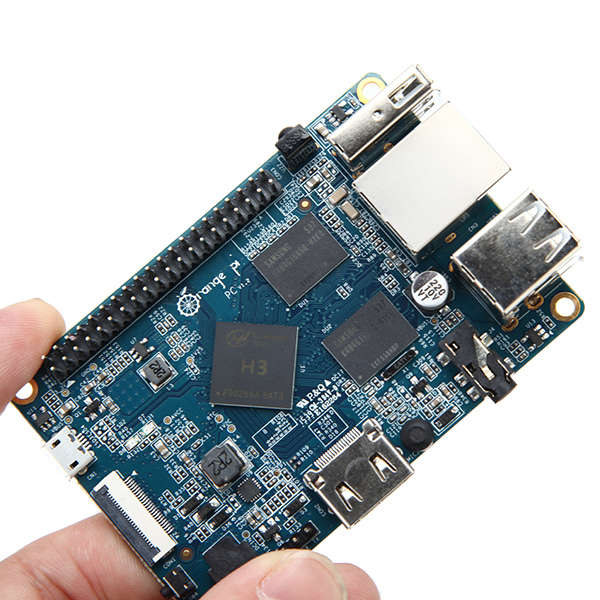

Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification | |
CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
GPU | ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 |
Memory (SDRAM) | 1GB DDR3 (shared with GPU) |
Onboard Storage | TF card (Max. 64GB) / MMC card slot |
Onboard Network | 10/100 Ethernet RJ45 |
Video Input | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps |
Audio Input | MIC |
Video Outputs | Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS |
Audio Output | 3.5 mm Jack and HDMI |
Power Source | DC input, USB OTG input don't supply power |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
