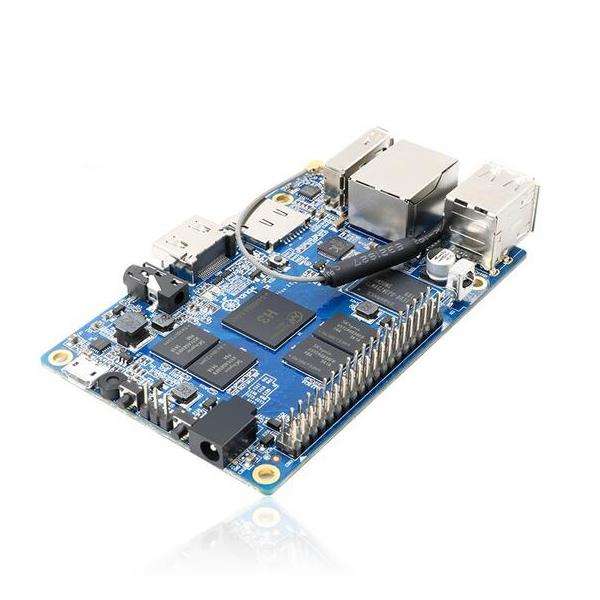

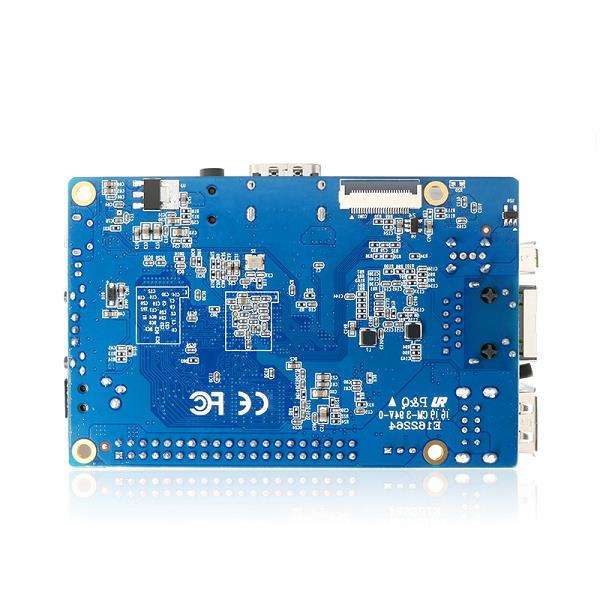

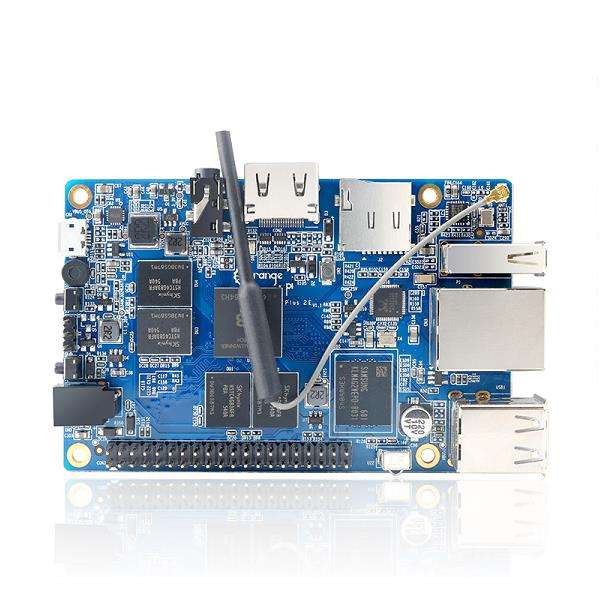

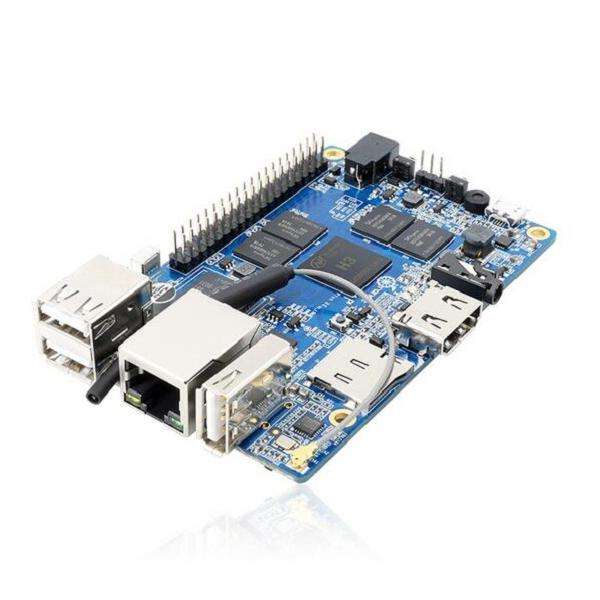

Hardware specification | |
CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
GPU | ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 |
Memory (SDRAM) | 2GB DDR3 (shared with GPU) |
Onboard Storage | TF card (Max. 64GB) / MMC card slot 16GB EMMC Flash |
Onboard Network | 10/100/1000M Ethernet RJ45 |
Onboard WIFI | Realtek RTL8189ETV, IEEE 802.11 b/g/n |
Video Input | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps |
Audio Input | MIC |
Video Outputs | Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS |
Audio Output | 3.5 mm Jack and HDMI |
Power Source | DC input, USB OTG input don't supply power |
USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG |
Buttons | Power button: Next to Reset button UBoot button (optional): Behind HDMI connector |
Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi B+ |
GPIO(1x3) pin | UART,ground. |
LED | Power led & Status led |
Key | IR input,UBOOT,POWER |
Supported OS | Android, Lubuntu, Debian, Rasberry Pi Image |
Interface definition | |
Product size | 108mm × 67mm |
Weight | 52g |
Power supply | 5V 3A |
Operating Temperature | -10 ~ 65¿¿¿ |
Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited |
