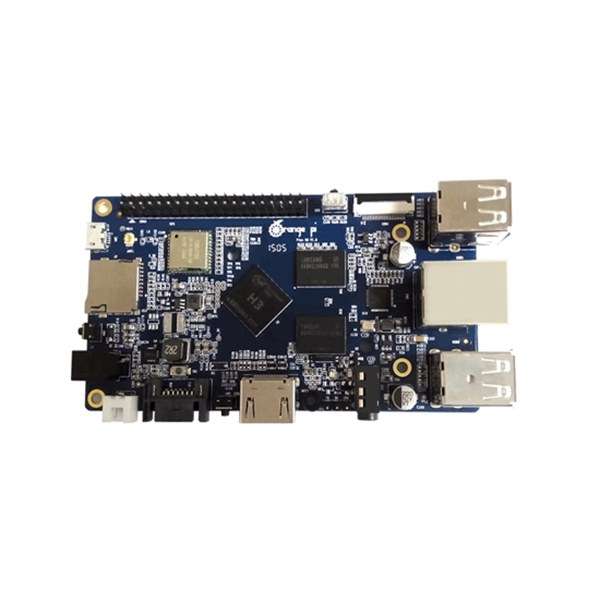

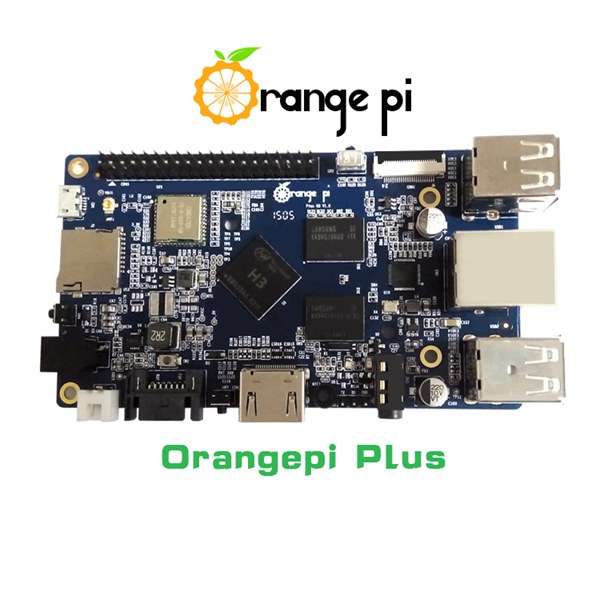

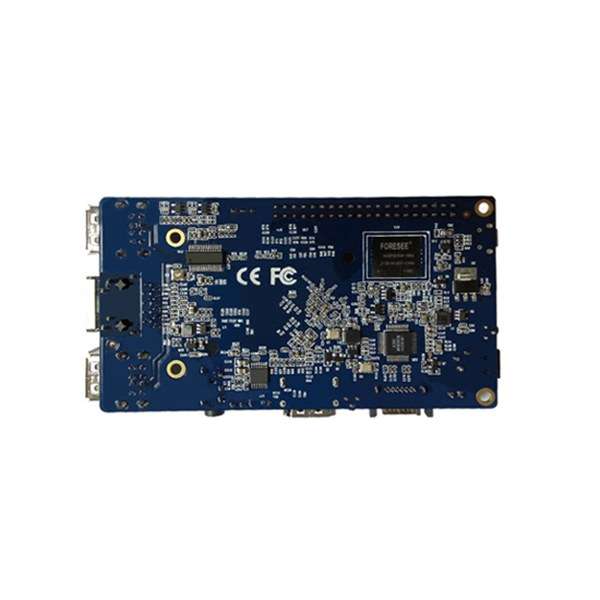

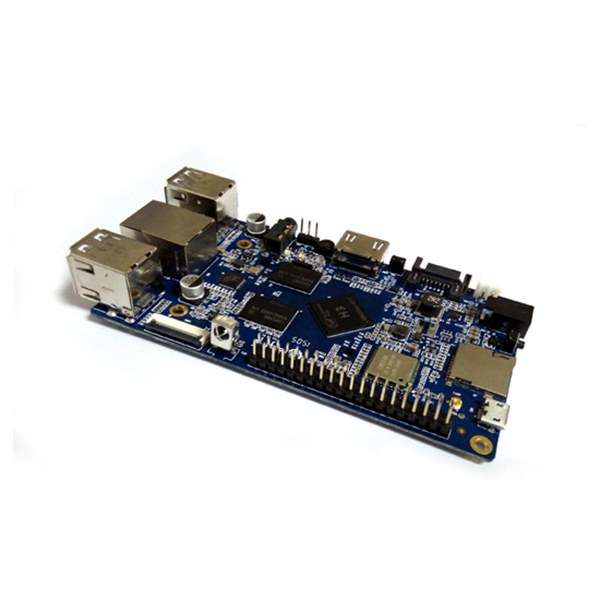

Orange Pi Plus H3 Arm Quad-Core Learning Development Board

What’s Orange Pi Plus?

It’s an open-source single-board computer. It can run Android 4.4 , Ubuntu, Debian, Rasberry Pi Image, it uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM


What can I do with Orange Pi Plus?

Build…

  • A computer
  • A wireless server
  • Games
  • Music and sounds
  • HD video
  • A speaker
  • Android
  • Scratch
  • Pretty much anything else, because Orange Pi Plus is open source



Who’s it for?

Orange Pi Plus is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you

Hardware specification

CPU

H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU

·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0

Memory (SDRAM)

1GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 64GB) / MMC card slot , up to 2T on 2.5 SATA disk
8GB EMMC Flash

Onboard Network

10/100/1000M Ethernet RJ45

Onboard WIFI

Realtek RTL8189ETV, IEEE 802.11 b/g/n

Video Input

A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps

Audio Input

MIC

Video Outputs

Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS

Audio Output

3.5 mm Jack and HDMI

Power Source

DC input can supply power, but USB OTG input don’t supply power

USB 2.0 Ports

Four USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button(SW4), Recovery Button(SW2), Uboot Button(SW3)

Low-level peripherals

40 Pins Header,compatible with Raspberry Pi B+



GPIO(1x3) pin

UART, ground.

LED

Power led & Status led

Other

IR input

Supported OS

Android, Ubuntu, Debian, Rasberry Pi Image

Interface definition

Product size

108mm × 60mm

Weight

50g


Package included:
1 x Orange Pi plus Learning Development Board
