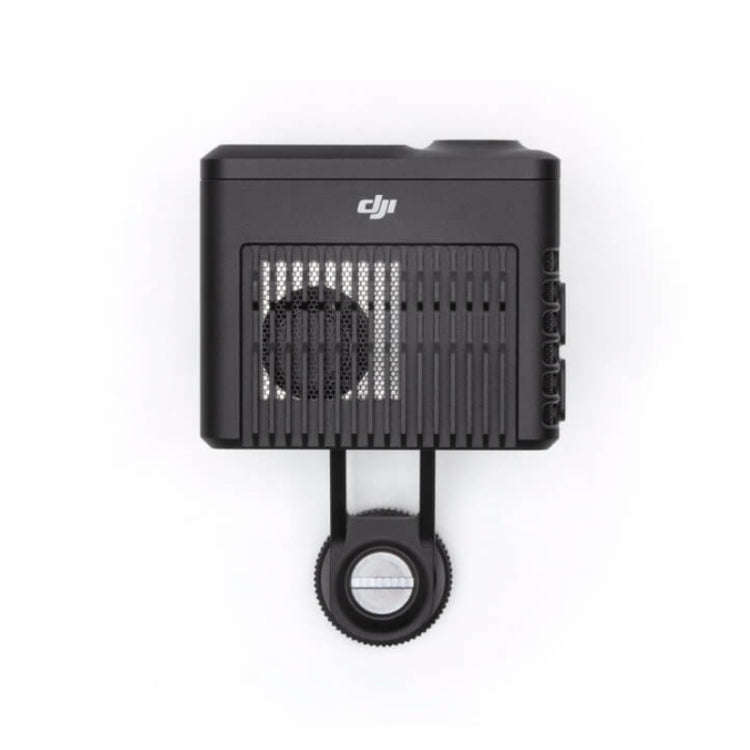

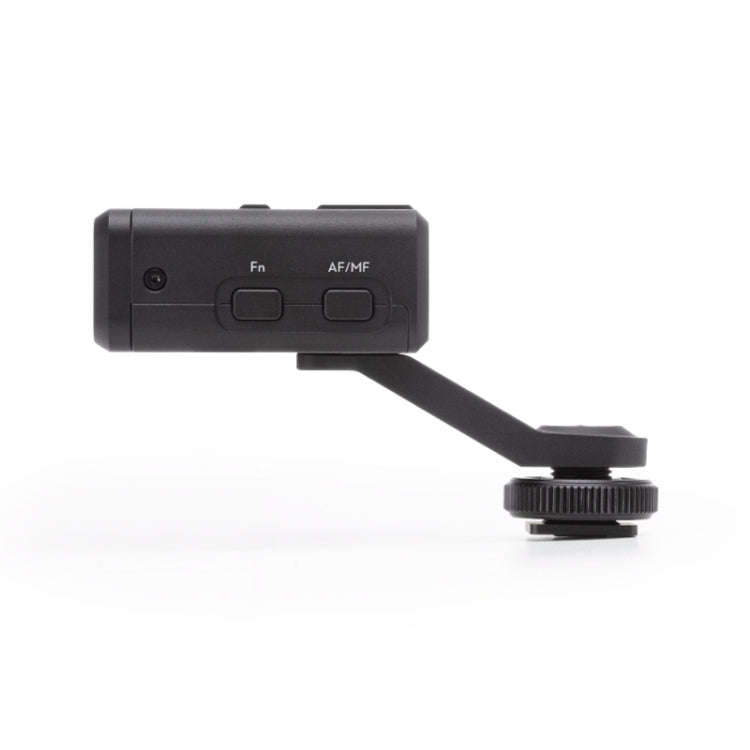

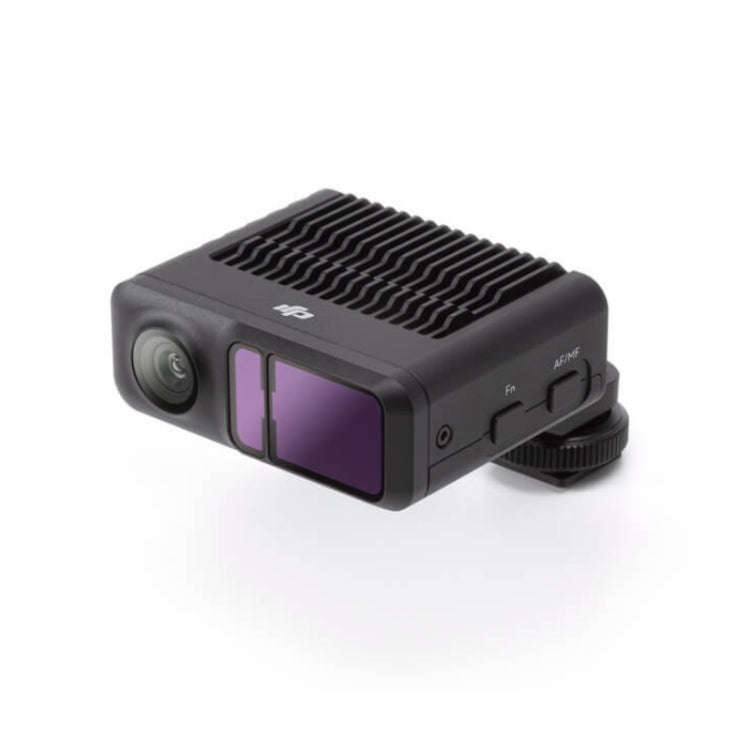

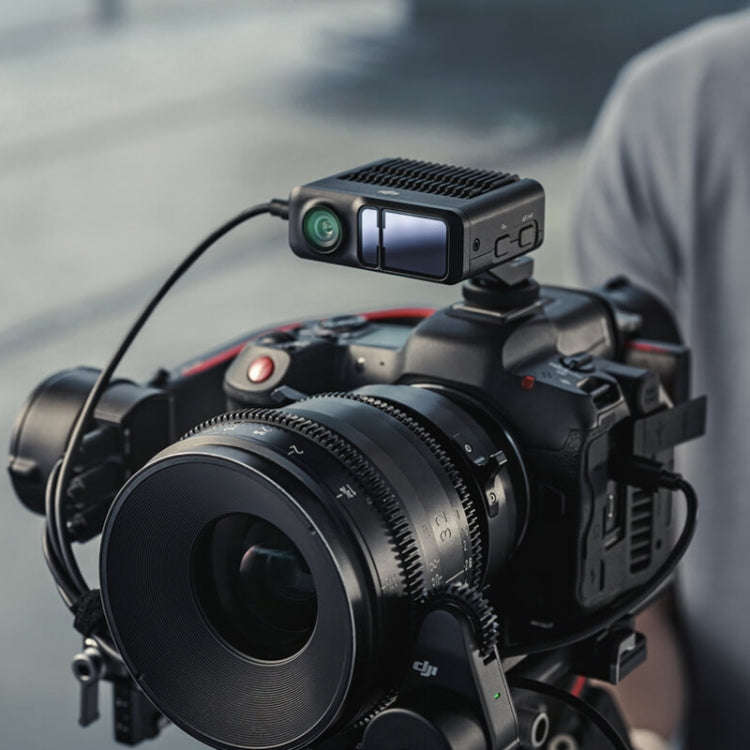

Original DJI LiDAR Focus Rangefinder

1. It can achieve a detection distance of 14 meters, and a built-in camera with an equivalent focal length of 30 mm, with a wide field of view of 70 degrees
2. When used with the new focus motor, the manual lens can perform automatic focus
3. The target recognition and follow-up performance of intelligent follow is even better
4. The laser follow focus system not only reduces the difficulty of follow focus when shooting handheld, but also does not need to rely on the texture of the object, and can also focus stably in low-light environments or complex scenes with multiple targets
5. It can project 43,200 ranging points, which can meet the focus needs of most scenes
6. Measured under no strong light conditions, in a normal shooting environment, the detection distance of people is 7 meters
7. Image sensor resolution: touch screen display 448×298
8. Field of view: 57.4 degrees (horizontal), 44.6 degrees (vertical), 70.1 degrees (diagonal)
9. Equivalent focal length: 30 mm
10. ToF sensor resolution: 240×180
11. ToF sensor detection distance: 0.5m to 14m
12. Support simultaneous recognition of 5 targets (MAX), and you can choose one of them to follow
13. Recognition distance: 9 meters
14. Power consumption: 6.8 watts
15. Input voltage: 7V to 16V
16. Dimensions: Length 66mm, Width 57mm, Height 24mm
17. Weight: about 130 grams
18. Mount height: 30mm
19. Calibration-free lens: DZOFILM Vespid Cyber 35/50/75 mm

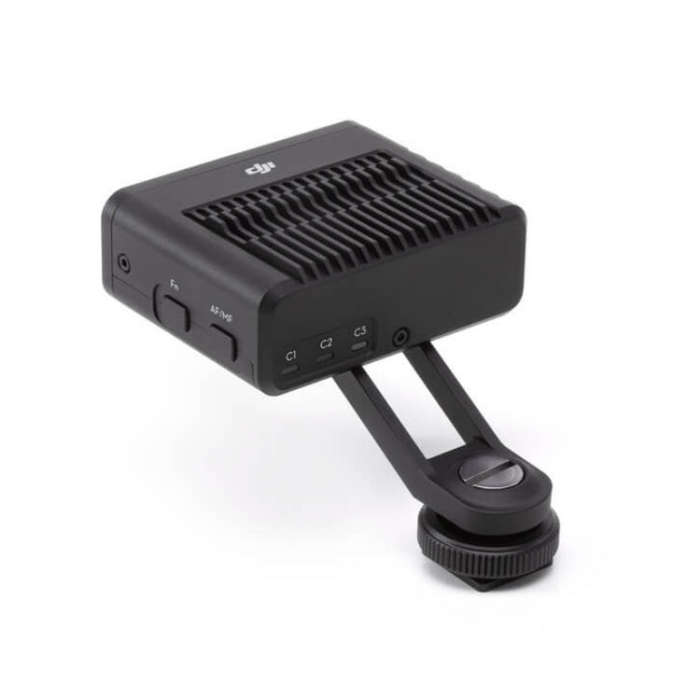

Accessory interface:
- Cold shoe interface
- 1/4-20 mounting holes
- USB-C interface
- USB-C power/CVBS/CAN data interface

Packing list:
- LiDAR Focus Rangefinder (RS) x 1

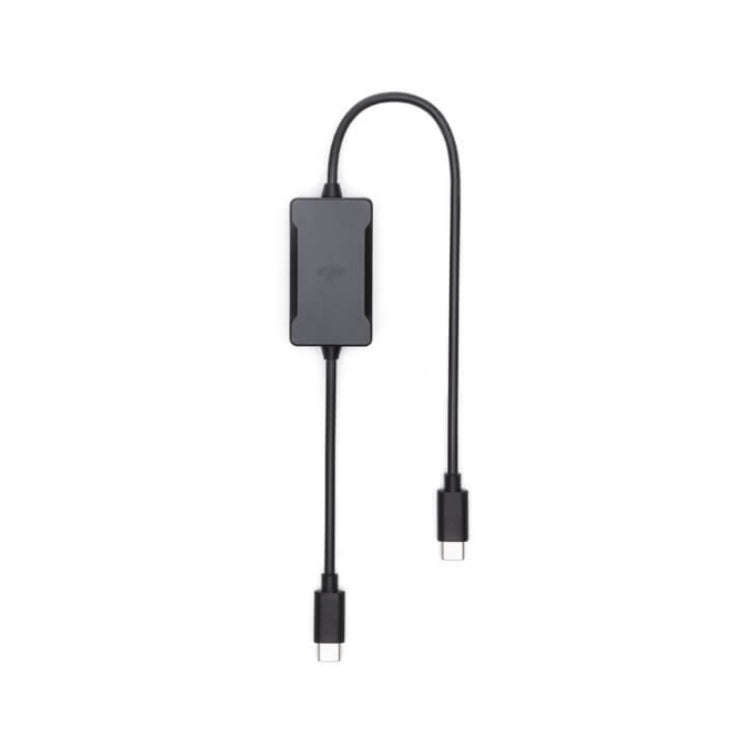

- Camera Control Cable (USB-C, 30cm) x 1
- LiDAR Control Cable (USB-C, 30cm) x 1
