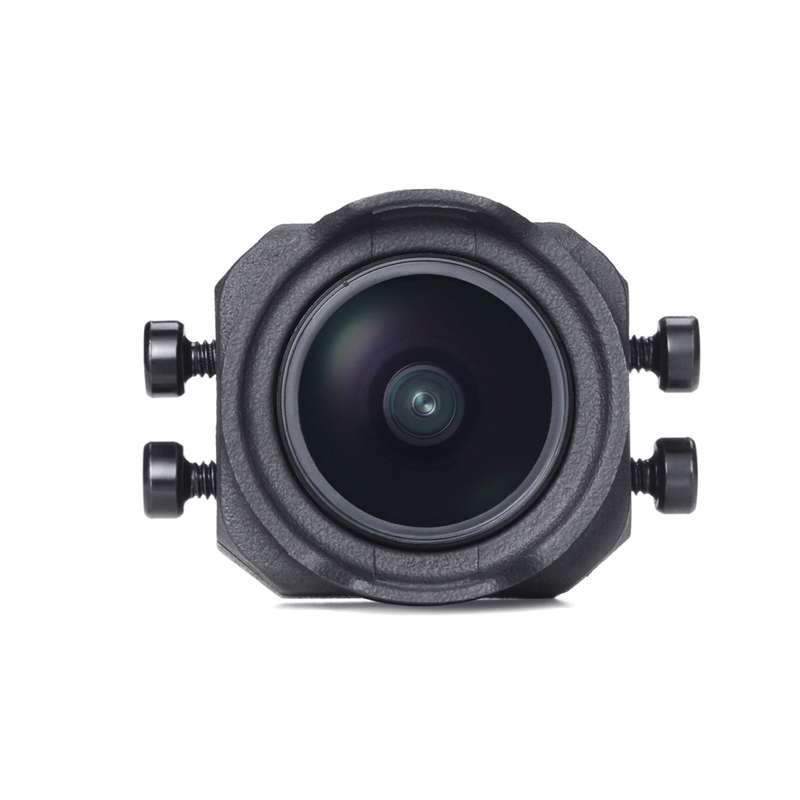

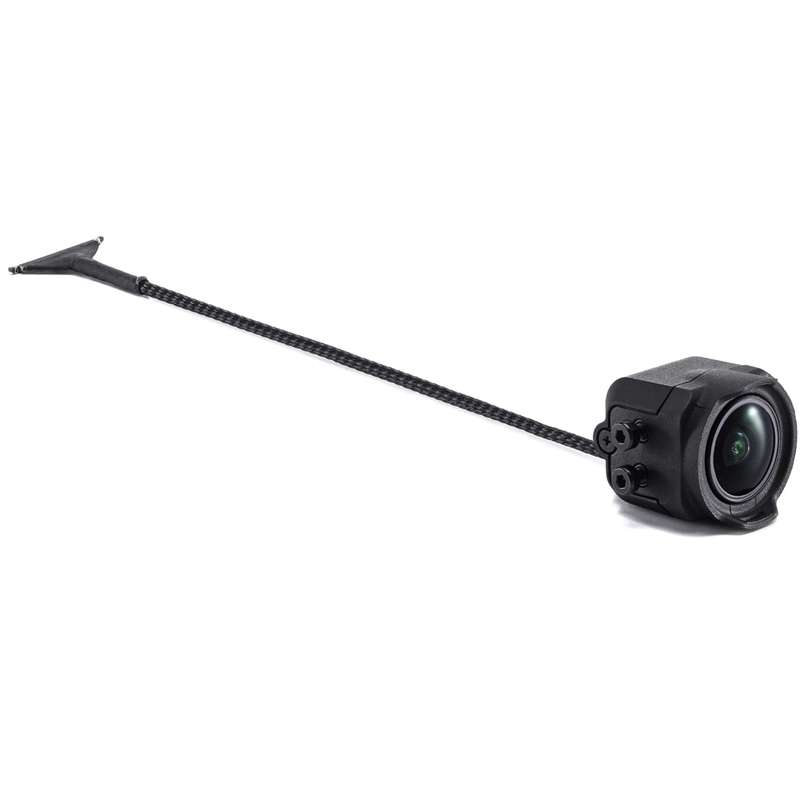

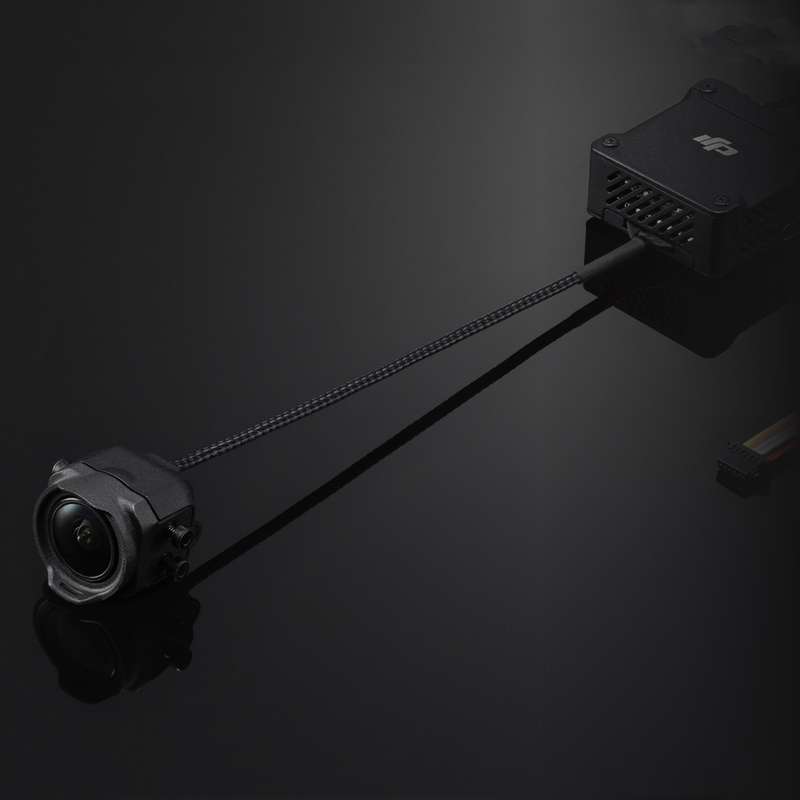

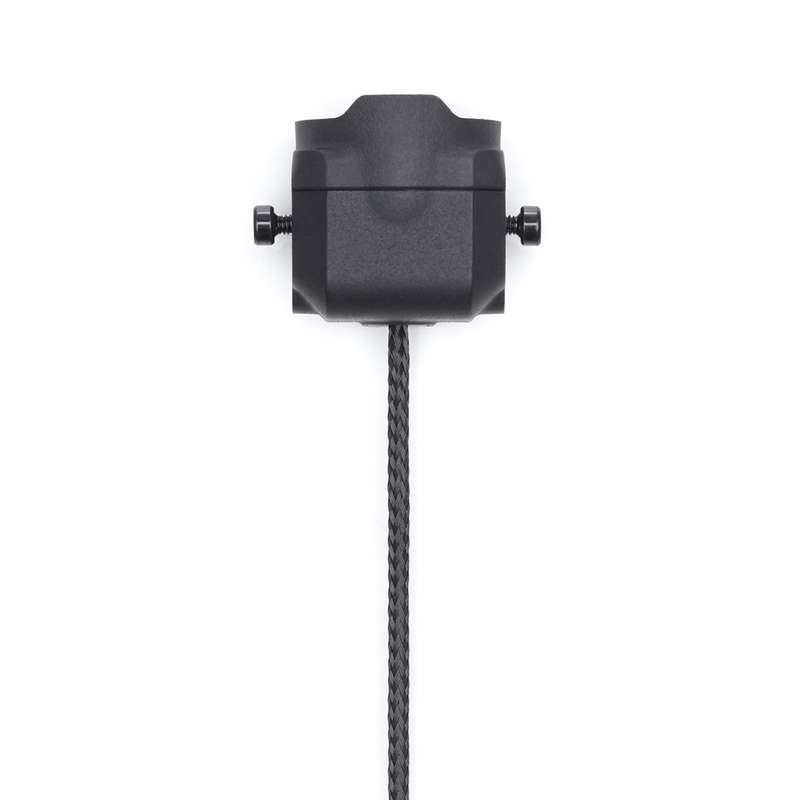

Original DJI O3 Air Unit Camera Module With Coaxial Cable

1. Use with DJI O3 Air Unit for repair and replacement.
2. Dimensions: length 21.2 mm, width 20 mm, height 19.5 mm
3. Weight (including coaxial cable): about 8.3 grams
4. Coaxial cable length: 115 mm
5. Image sensor: 1/1.7-inch image sensor, effective 48 million pixels
6. Lens: Field of view (FOV): 155 degrees
7. Equivalent focal length: 12.7 mm
8. Actual focal length: 2.34 mm
9. Aperture: f/2.8
10. Focusing mode: FF
11. Focus range: 0.6 m to infinity
12. ISO range: 100-6400 (auto), 100-25600 (manual)
13. Shutter: Rolling shutter
14. Video resolution:
-with Goggles 2: 4K-50/60fps, 2.7K-50/60/100fps, 1080p-50/60/100fps
-with FPV Goggles V2: 4K-50/60fps, 2.7K-50/60/100/120fps, 1080p-50/60/100/120fps
Video format: MP4

Packing list:
DJI O3 Air Unit camera module × 1
Coaxial cable ×1
Screws (M2×4) ×4
