Original DJI RS 2 / RSC 2 Multifunctional Camera Follow Focus Motor + Installation Kit

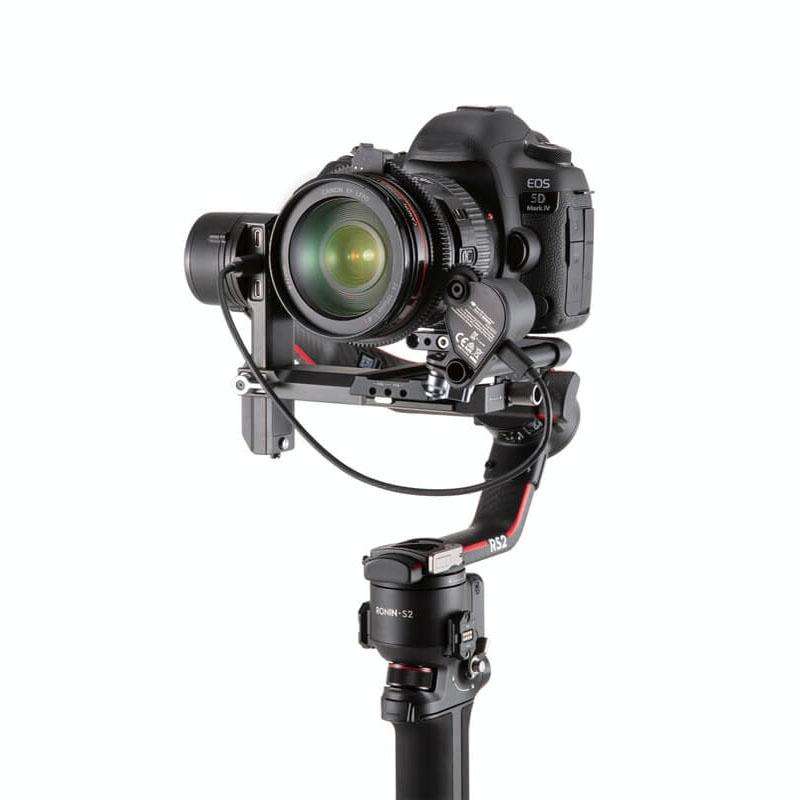

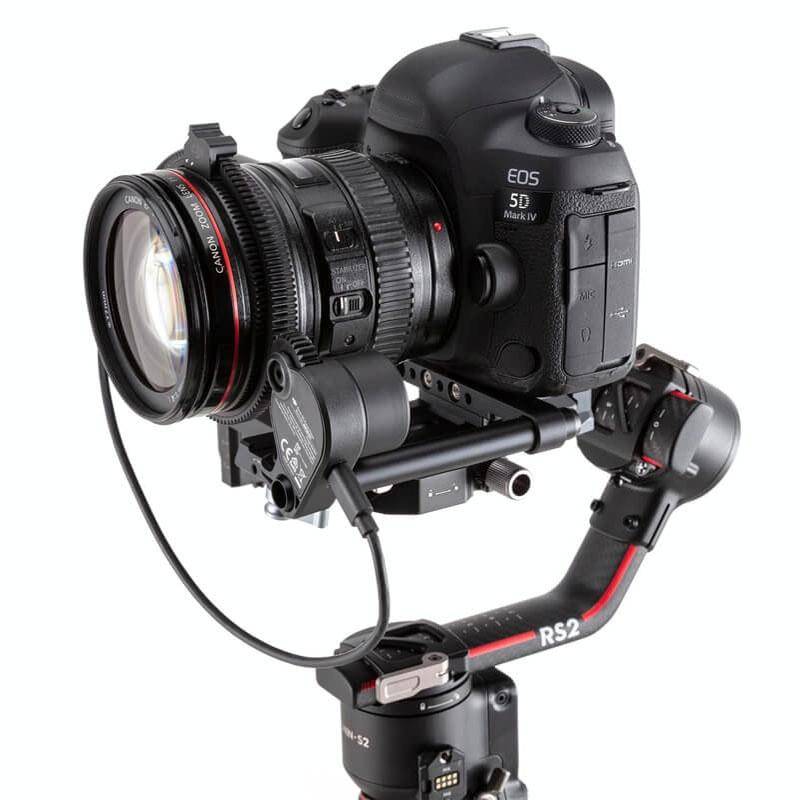

1. On the DJI RS 2, the focus motor can be used with the DJI R follow focus wheel or the front dial to realize the focus, zoom or aperture adjustment of the camera lens
2. Installing two Ronin follow focus motors on the DJI RS 2 can realize a dual channel follow focus system (DJI R follow focus wheels need to be purchased separately)
3. Note: The DJI R focus motor can be used with the front dial to control the follow focus, zoom or aperture of the camera lens on the DJI RSC 2, but the DJI R follow focus wheel is not suitable for the DJI RSC 2

Product parameters:
1. Torque: 0.27 Nm (MAX)
2. Operating speed: 100 RPM (MAX)
3. Working voltage: 5V/8V
4. Mounting hole size: 12 mm
5. Working temperature: minus 20-45 degrees Celsius
6. Adaptive lens diameter range of follow focus rack: 30-110 mm
7. Total length of follow focus rack: 377 mm
8. Dimensions: 714734mm
9. Weight: 88g
10. Compatible products: DJI RS 2, DJI RSC 2

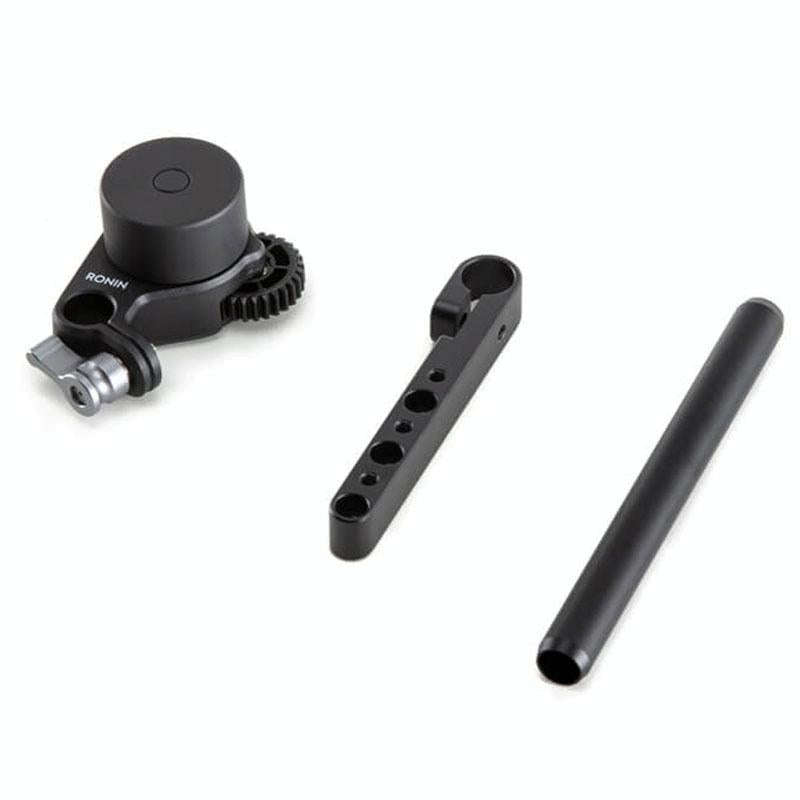

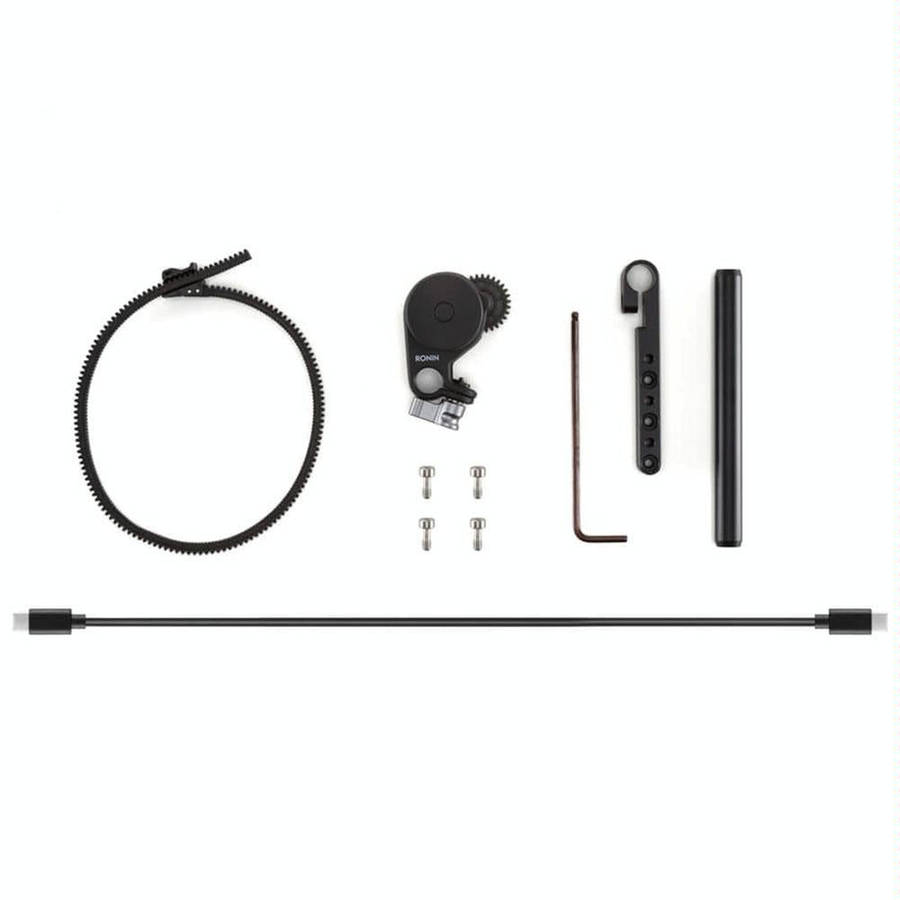

Packing list
-Follow focus motor 1
-fixed components 1
-12 mm conduit 1
-M4 screws (10 mm) 4
-Follow focus gear follow focus rack 1
-Camera control cable (USB-C, 30 cm) 1
-Wrench (3 mm) 1
