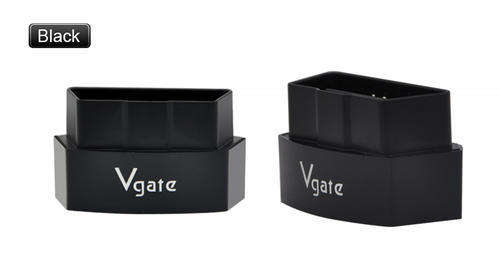

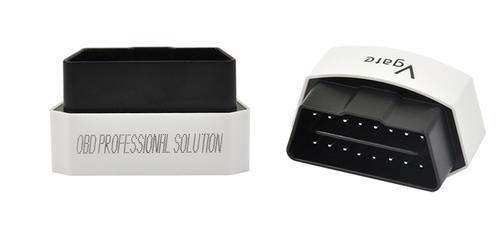

Original Vgate iCar3 iCar III Elm327 Bluetooth Diagnostic Interface Tool for Android IOS PC
Brand New
Bluetooth 3.0
Colours available: Black, White & Blue
Retail boxed
R375 each
Available for Countrywide Postage.
Registered Letter R30 (5-7 days)
Economy Courier (Major Centres only) R60
Speedpost overnight to counter R82
Overnight Courier to Door (only Jhb, Pta, Bloem, Kimberley, Nelspruit, Dbn, PMB, Pietersburg) R75
Overnight Courier to Door (only C. Town, PE, EL & George) R85
Door Courier to All other areas (1-2 day delivery) R100
ELM327 Vgate iCar 3 Bluetooth
OBD2 Diagnostic Interface for Android/Iphone (jail break) PC Auto Car Scanner
Attention: There are 3 colour choices available only
Features:
1.Supply voltage(VDD):12V
2.Work temperature range: -20 ~ +70
3.Storage temperature range: -40 ~ +125
4.RF sensitivity(Basic Rate): -85db
5.Modulation Mode: GFSK
6.Frequency Range:2402 ~ 2480MHZ
7.Transmission Range:10M
8.Bluetooth Profile:SPP
9.UART Params:38400,8,n,1
10.Small size, compact structure. Plug and never unplug
11.Stable wireless connection
12.No wires or batteries (adapter is powered by the diagnosis size sockets)
13.Stop communication, wait half an hour, auto sleep
14.Supports all OBDII protocols
15.The adapter uses the fastest and most reliable ARM chips
The device is a small adapter that plugged into the vehicle OBD-connector.
On Bluetooth, it connects to any computer, tablet or smartphone, With
associated diagnostic procedures.
Functions:
1.Read, erase and display code descriptions problems - both standard and
spetskodov manufacturers.
2.Measure the fuel consumption.
3.Display real-time operating performance of the car, such as momentum,
vehicle speed, oil pressure, coolant temperature, engine load, intake manifold
pressure, throttle position, the values of oxygen sensors, air intake
temperature, and more.
4.Turn off the MIL (signal Check Engine).
5.Download data to external media in a variety of formats for later printing.
6.Record various parameters, display graphics in real time, and more.
With iCar3 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
iCar 3 scan tool is a high-quality automotive scanning tool, supports all OBD-II protocols Automatic.
Support Cars:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)

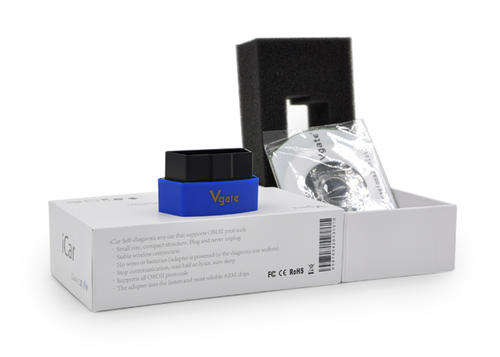

Package List:
1x iCar 3 Bluetooth OBD2
1x Software CD
1x Retail box
1 x Manual
