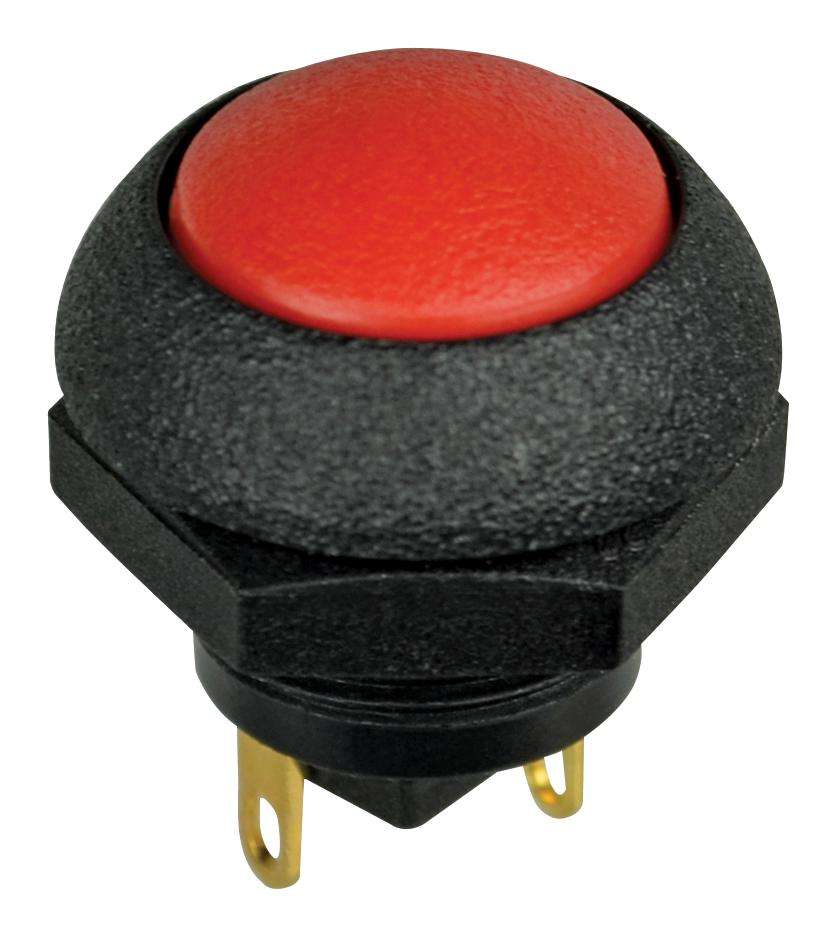

Otto Controls (P9-113121W) Industrial Pushbutton Switch, 12 mm

Industrial Pushbutton Switch, Watertight to IP68S, P9, SPDT-DB, Momentary,Flush, RedProduct InformationPushbutton Switch Type: IndustrialProduct Range: P9Contact Configuration: SPDT-DBContact Voltage AC Nom: 115VPanel Cutout Diameter: 12mmContact Voltage DC Nom: 28VSwitch Operation: MomentaryPushbutton Actuator Style: FlushContact Current Max: 5AActuator / Cap Colour: RedContact Current AC Max: 4AContact Voltage VAC: 115VContact Current DC Max: 4AContact Voltage VDC: 28VIP Rating: IP69K, IP68SSwitch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe P9 series sealed dome Pushbutton Switch with gold plated silver alloycontacts. It is made of plastic housing and thermoplastic case/bezel. The P9series comes with a threaded case for hex nut mounting or with a snap in case.The switch series features short behind-panel depth. They also offer excellentmechanical and electrical performance while operating under severe conditionsfound in demanding applications. The OTTO P9 Dome series is offered in dusttight and moisture proof sealed construction. High contacts pressure and uniquecontacts design provide low contacts resistance for low level switchingcapability as well as full rated service. Positive tactile feedback signallingthe operator when the switch is operated is available in snap-action models butnot shorting bar models. The P9 Dome series is a quality precision switchdesigned for use in panels, control grips, instruments, heavy equipment andother demanding applications.Withstands extreme shock & vibrationTwo button heightsSolder, PC Pin and 0.110" Quick connect terminal stylesApplicationsIndustrial
