Outdoor Dual Beam ABT-150 Photoelectric Security Infrared Movement Sensor Kit (10002677)
Detailed Features
Beam Interruption time Adjustable
Form C relay providing more applications
Tamper Switch
Selectable beam frequency, suitable for long distance and stack use
LED digital tube display received signal strength,easy to debug
Wide voltage and energy saving design
Digital communication function
Alignment angle +/- 90 degree horizontally, +/-10 degree vertically
Digital filtering, environment adaptive function, minimum false alarm
The lowest beam interference, can used in all kinds of complicated environment
Parameters
1.New 2 beams frequency adjustment active infrared detector
2.Used for wall,passage etc.
3.Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system
4.Up and down optical lens can adjust the mechanical design,making adjustments more faster,convenient and accurate.
5.Fully sealed design,rain-proof(fog),dust-proof(worm)
6.With high levels of anti-RFI/EMI capability
7.Professional anti-jamming optical housing
8.Case Material: PC
Technical specifications:

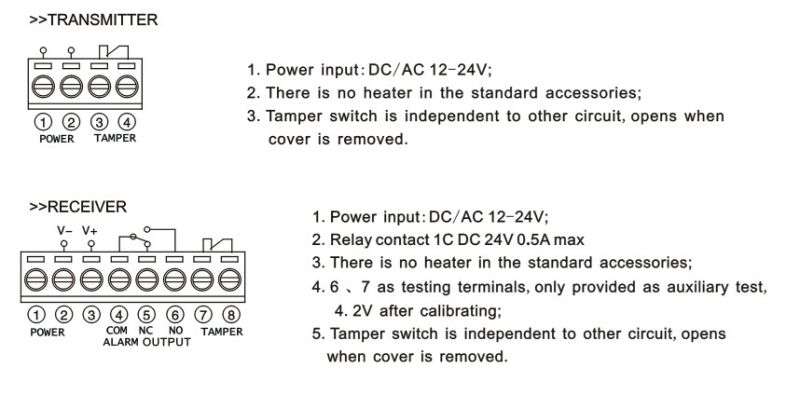

Terminals

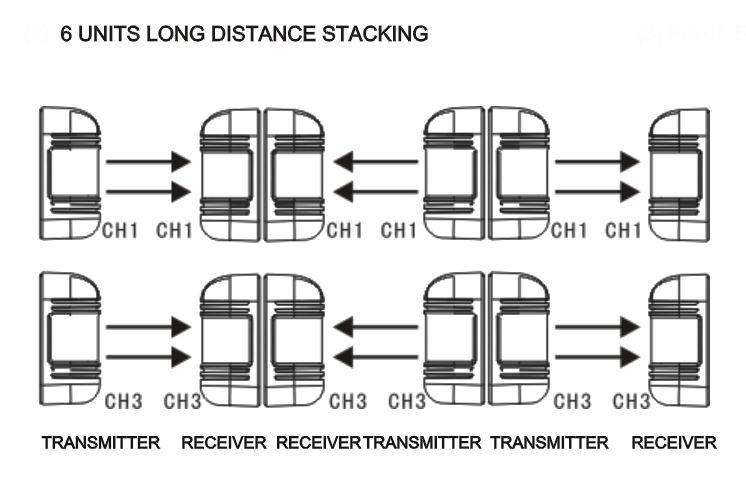

6 Units Long Distance installation

Model | ABT-30F | ABT-60F | ABT-100F | ABT-150F |
Outdoor Alert Distance | 30m | 60m | 100m | 150m |
Indoor Alert Distance | 90m | 180m | 300m | 450m |
Beam | 2 |
Induction Speed | 50-700ms |
Alarm Output | NC/NO;Contact rating:30V/0.5A |
Gangled Alarm | Yes |
Working Voltage | DC 12-24V;AC 11-18V |
Working Current | <100mA |
Tamper Output | NC;Contact rating:24V/0.5A |
Horizontal Angle Adjustment | 180 90 |
Vertical Angle Adjustmentvv | 10 |
Case Material | PC |
Dimensions | 171*82*77mm |
