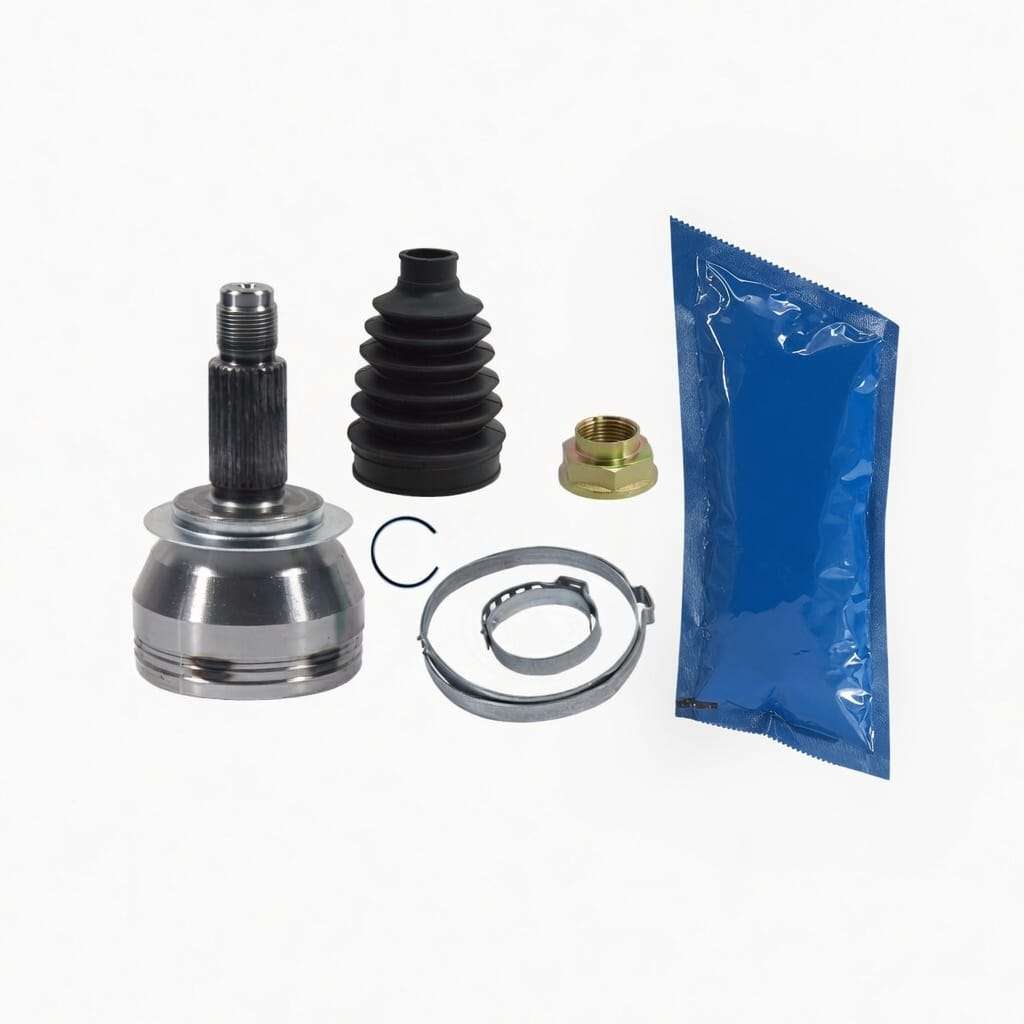

Outer CV Joint for Subaru Forester SH, Legacy & Outback - MAP-100995

Outer CV Joint for Subaru Forester SH, Legacy & Outback - MAP-100995

New 10 available
R710.00
Shipping
Free shipping is available from Modern Auto Parts for all orders above R2,000.00, using one of our trusted couriers.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 4 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Modern Auto Parts3372
97.90 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MAP-100995
Bob Shop ID
676235958

Vehicle Fitment & Part Details

This outer CV joint is listed for the Subaru Forester SH 2.0 AWD FB20 (2010-), OE 28391SG030. Confirm compatibility by matching the listed fitment details, any OEM reference numbers supplied, and VIN/engine/chassis information where variants exist.

Key Details

SKU
MAP-100995
Component
CV Joint
Position
Outer
GTIN / Barcode
6928947301100
OEM References
  • Subaru: 28391SG030
  • Subaru: 28391SC000
  • Subaru: 28391SC002
  • Subaru: 28391SC001
Primary Fitment
Subaru Forester SH 2.0 AWD FB20 (2010-)
Included
Lock ring, inside
Specs
Length 139 mm; thread M22 x 1.5; 27 external teeth / 32 internal teeth (wheel side); seal ring diameter 52 mm

Key Benefits

  • 4 Subaru OEM cross-reference numbers listed for matching before ordering
  • 27 external / 32 internal tooth count on the wheel side with 52 mm seal ring diameter
  • Inside lock ring included

Product Specifications

SpecificationValue
Length139 mm
Thread SizeM22 x 1.5
External Toothing (Wheel Side)27
Internal Toothing (Wheel Side)32
Seal Ring Diameter52 mm
Supplementary InfoLock ring, inside
Trade NumberGCO99339

Vehicle Fitment

Includes 14 supplied applications.

View Full Vehicle Fitment (14 applications)
ModelChassisEngineYearsPower
Subaru Forester 2.0 AWDSHJFB20 Petrol2010-110 kW / 150 PS
Subaru Forester 2.0 AWDSH5EJ204 Petrol2008-2013110 kW / 150 PS
Subaru Forester 2.5 AWDSH9EJ25 Petrol2009-2013126 kW / 171 PS
Subaru Forester 2.5 AWDSH9EJ255 Petrol2008-2013169 kW / 230 PS
Subaru Forester 2.0 D AWDSHH / SHD / SHNEE20Z Diesel2008-2013108 kW / 147 PS
Subaru Forester 2.0 BiFuel AWD-EJ204 Petrol/LPG2009-2011110 kW / 150 PS
Subaru Forester 2.5 Turbo AWDSH9EJ255 Petrol2011-2013193 kW / 262 PS
Subaru Forester 2.0 i AWDSJ5FB20 Petrol2013-110 kW / 150 PS
Subaru Forester 2.0 XT AWDSJGFA20 Petrol2013-177 kW / 241 PS
Subaru Forester 2.0 D AWDSJDEE20Z Diesel2013-108 kW / 147 PS
Subaru Legacy IV 2.0 D AWDBL / BP (BLD, BPD)EE20Z Diesel2008-2009110 kW / 150 PS
Subaru Legacy V 2.0 D AWDBM / BR (BMD, BRD)EE20Z Diesel2009-2014110 kW / 150 PS
Subaru Outback 2.0 D AWDBP (BPD)EE20Z Diesel2008-2009110 kW / 150 PS
Subaru Outback 2.0 D AWDBR (BRD)EE20Z Diesel2009-110 kW / 150 PS

Fitment Notes

  • Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
  • Left or right outer CV joint fits either side when tooth counts and seal ring diameter match the removed unit.

Important: With CV joints and driveshafts, a VIN check can still return multiple possible variants within the same model range. First confirm whether you need an inner CV joint, outer CV joint, CV boot, or complete driveshaft. Then match the removed unit by outer spline count, inner spline count, seal size (mm), outer diameter (mm), groove position, overall length (mm), and ABS ring tooth count where applicable. The only reliable way to confirm the correct part is to physically inspect and measure the old unit and match these specifications before ordering.

Returns Notice: CV joints, driveshafts, and boots that are greasy or incomplete are not returnable.

Installation / Use / Maintenance Tips

  • Measure and match the removed CV joint by outer spline count, inner spline count, seal diameter, and overall length before ordering and before fitment.
  • Replace the circlip / lock ring during installation; do not reuse the old one.
  • Fully pack the new CV joint with the supplied or specified CV grease before fitting the boot.
  • Seat the boot evenly on both lips and secure both clamps; a poorly clamped boot will fail quickly and void any claim.
  • Torque the axle nut to the vehicle manufacturer's specification with the vehicle on the ground or the hub loaded.

Common Questions

Will this outer CV joint fit my Subaru Forester?
This part (MAP-100995) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.

What OEM part numbers does this cross-reference?
Cross-reference numbers are listed in the Key Details section above. Match at least one to your original part before ordering.

What is included?
Lock ring, inside.

How do I confirm fitment if there are multiple variants?
Use VIN, engin...
