Vehicle Fitment & Part Details

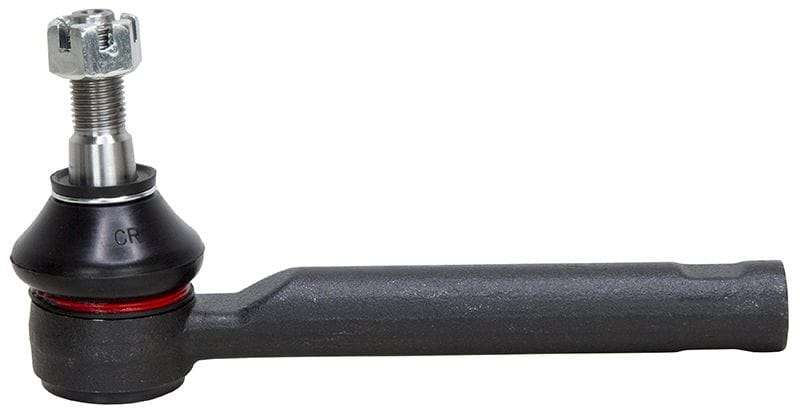

This outer tie rod end set (female) is listed for the Mazda CX-5 KF (2017-), cross-referenced to OE K123-32-280. It is supplied with 13.6 mm cone, 1/8 cone pitch, M14X1.5 thread size 1, M12X1.25 thread size 2, 148 mm length. Confirm compatibility by matching the listed fitment details and any OEM reference numbers supplied. Verify VIN/engine.
Key Details
- SKU
- TR06535
- Component
- Outer Tie Rod End (Female)
- Position
- Front Axle, Outer
- Configuration
- Set
- OEM References
- Primary Fitment
- Mazda CX-5 KF (2017-)
- Specs
- 13.6 mm cone, 1/8 cone pitch, M14X1.5 thread size 1, M12X1.25 thread size 2, 148 mm length
Listing Highlights
- Listed for selected Mazda CX-5 KF applications shown in the fitment table.
- Front axle outer tie rod end (female type) with 13.6 mm cone, 1/8 cone pitch, M14X1.5 thread size 1, M12X1.25 thread size 2, 148 mm length.
Product Specifications
| Specification | Value |
|---|
| Fitting Position | Front Axle, Outer |
|---|
| Type | Female |
|---|
| Cone Size | 13.6 mm |
|---|
| Cone Pitch | 1/8 |
|---|
| Thread Size 1 | M14X1.5 |
|---|
| Thread Size 2 | M12X1.25 |
|---|
| Length | 148 mm |
|---|
Vehicle Fitment
Includes 1 supplied application covering Mazda CX-5 KF. Use the full table below to confirm model, engine option and year range before ordering.
| Make | Model / Application | Year Range |
|---|
| Mazda | CX-5 (KF) 2.0 121kw (PEX3, PEXB, PEXP), 2.2 129kw (SHY6)(2017-), 2.2 140kw (SHY8)(2018-), 2.5 143kw (PYZ8, PYZC), 2.5 143kw (PY-VPS, PY-Y8, PY-ZA, PYZ8, PYZC) | 2017- |
|---|
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Verify VIN/engine.
- Open-ended dates, such as "2017-", reflect supplier catalogue data and must be confirmed against the vehicle before ordering.
Compatibility Verification Notes
- Confirm compatibility using VIN, engine code, chassis / platform, OE reference and original part comparison before ordering.
- Match the supplied dimensions to your original part, including the 13.6 mm cone, 1/8 cone pitch, M14X1.5 thread size 1, M12X1.25 thread size 2, 148 mm length.
- This female outer tie rod end is supplied as a set. Confirm the type, position and quantity you require before ordering.
- Fitment data may vary by production date, market, import history and engine variant.
- This listing is for part identification and compatibility checking only. Installation must be carried out according to the vehicle manufacturer's service information by a suitably qualified person.
Common Questions
Will this outer tie rod end set (female) fit my Mazda CX-5 KF?
This part (TR06535) is listed for the fitments shown on this page. Confirm by matching the fitment details. Verify VIN/engine.
What OEM part numbers does this cross-reference?
Cross-reference numbers are listed in the Key Details section above. Match at least one to your original part before ordering.
Is this sold as a single unit or a set?
This listing is sold as a set. Confirm the quantity and type you require before ordering.
How do I confirm fitment if there are multiple variants?
Compare the supplied fitment details, thread and taper sizes, and original part details before ordering. Verify VIN/engine.
