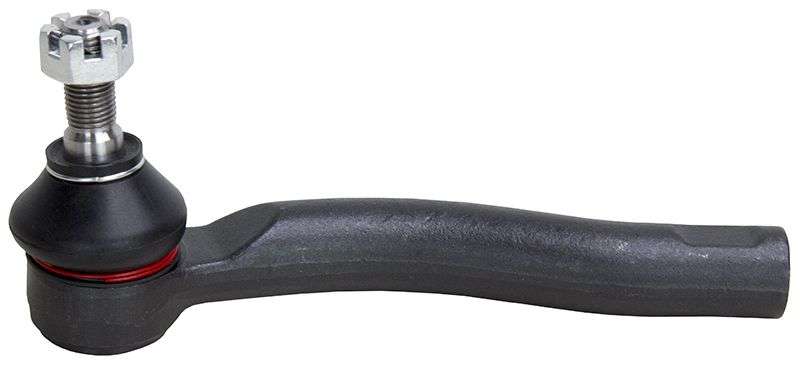

Outer Tie Rod End Set (Female) for Toyota C-HR (AX1, AX5) - TR06514

Vehicle Fitment & Part Details

This outer tie rod end set (female) is listed for the Toyota C-HR X1 (2016 -). It is supplied with M16 x 1.5 thread. Confirm compatibility by matching the listed fitment details and any OEM reference numbers supplied. Verify VIN/engine.

Key Details

SKU

TR06514

Component

Outer Tie Rod End (Female)

Position

Front Axle, Outer

Configuration

Set

OEM References

45046F4010, 45046F9010, 4504609890, 4504649255, 45047F4010, 45047F9010, 4504709420, 4504749195

Primary Fitment

Toyota C-HR X1 (2016 -)

Specs

M16 x 1.5 thread

Listing Highlights

• Listed for selected Toyota C-HR X1 applications shown in the fitment table.
• Front axle outer tie rod end (female type) with M16 x 1.5 thread.

Product Specifications

Vehicle Fitment

Includes 4 supplied applications covering Toyota C-HR AX1, Toyota Corolla E210, Toyota Corolla Quest E180, Toyota Corolla Cross ZVG1. Use the full table below to confirm model, engine option and year range before ordering.

Fitment Notes

• Always match the listed vehicle details before ordering. Verify VIN/engine.
• Open-ended dates, such as "2016 -", reflect supplier catalogue data and must be confirmed against the vehicle before ordering.

Compatibility Verification Notes

• Confirm compatibility using VIN, engine code, chassis / platform, OE reference and original part comparison before ordering.
• Match the supplied dimensions to your original part, including the M16 x 1.5 thread.
• This female outer tie rod end is supplied as a set. Confirm the type, position and quantity you require before ordering.
• Fitment data may vary by production date, market, import history and engine variant.
• This listing is for part identification and compatibility checking only. Installation must be carried out according to the vehicle manufacturer's service information by a suitably qualified person.

Common Questions

Will this outer tie rod end set (female) fit my Toyota C-HR X1?
This part (TR06514) is listed for the fitments shown on this page. Confirm by matching the fitment details. Verify VIN/engine.

Is this sold as a single unit or a set?
This listing is sold as a set. Confirm the quantity and type you require before ordering.

How do I confirm fitment if there are multiple variants?
Compare the supplied fitment details, thread and taper sizes, and original part details before ordering. Verify VIN/engine.
