Name: Output 1.25-36V 5A Constant Current Constant Voltage Lithium Battery Charger Po
SKU: 1173979
Price: 82.39 ZAR
Availability: SoldOut

Output 1.25-36V 5A Constant Current Constant Voltage Lithium Battery Charger Po

30 were available / new

Indicative market price: R199.00

R82.39

59% off

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

1173979

Bob Shop ID

333243932

Package weight: 0.02 kg
Specifications:
Input: IN + input positive, IN- input negative
Output way: OUT + output positive, OUT- output negative
Input voltage: 4-38V
Output voltage: 1.25-36V continuously adjustable
Output current: adjustable, maximum 5A
Output Power: 75W maximum
Working temperature: -40 to + 85 ￢ﾄﾃ
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Short circuit protection: Yes (limit current 8A)
Overtemperature protection: (automatically shut off the output after overtemperature)
Input reverse polarity protection: None, (if necessary, please enter the string into the high current diode)
Installation: four 3mm screws
Module dimensions: 51 x 26 x 15mm (L x W x H)

Features:
1. High power, high efficiency, 5A, low ripple;
2. Triple:
(1) Use as a normal blood pressure modules with overcurrent protection capability;

(2) As the various voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery) charger for solar panels, wind turbines and other occasions;

(3) Used as a high-power LED constant current drive module;

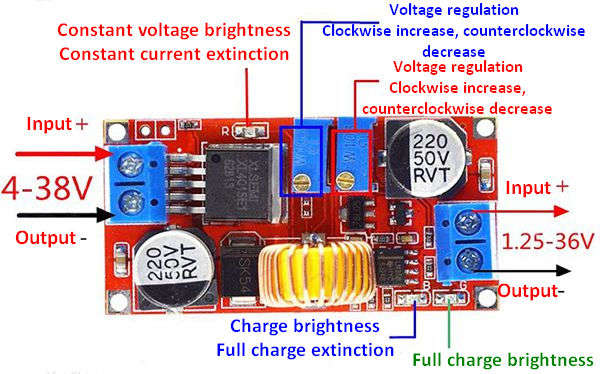

3. With constant pressure and constant current modes, there are light indicates which mode is currently in module;

4. When used as a lithium battery charger, you can set the float voltage and the charge current size, there is light indicates is being charged or has been filled;

5. Has the current limit protection, output short circuit even if it will not burn module.

6. This module uses machine placement, reflow soldering, and each module shipments have been two hours before the aging tests to ensure high reliability.
Note: When you use this product, the module inputs and outputs to the ground and do not co-together, this will cause the board power current sense resistor is bypassed, so that the module can not adjust the output current size, the case then load easy to burn power chip module.

Package included:
1 x 5A constant current constant voltage LED driver module
