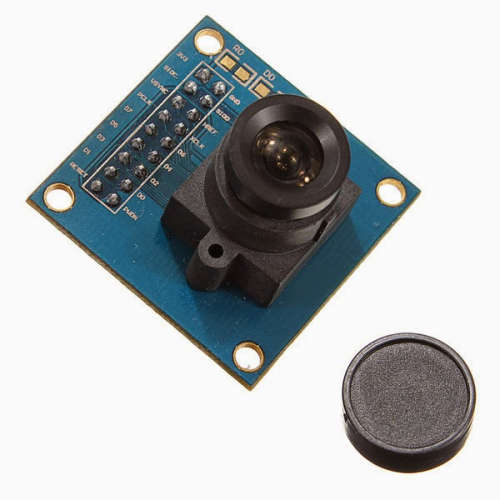

OV7670 300KP VGA 640 x 480 12C Camera Module for Arduino ***LOCAL STOCK***

OV7670 300KP VGA 640 x 480 12C Camera Module for Arduino

• High sensitivity for low-light operation.
• Low operating voltage for embedded application.
• Standard SCCB interface compatible with I2C interface.
• Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2) output format.
• Support VGA, CIF and from CIF to 40 x 30 format.
• Vario Pixel method for sub-sampling.
• Auto Image Control: AEC, AGC, AWB, ABF, ABLC.
• Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming.
• ISP includes noise reduction and defect correction.
• Support image scaling.
• Lens shading correction.
• Flicker 50/60Hz auto detection.
• Color saturation level auto adjust.
• Edge enhancement level auto adjust.
• De-noise level auto adjust.

• Photosensitive Array: 640 x 480.
• IO Voltage: 2.5V to 3.0V.
• Operating Power: 60mW/15fpsVGAYUV.
• Sleeping Mode: <20μA.
• Operating Temperature: -30 to 70 deg C.
• Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit).
• Lens Size: 1/6".
• Vision Angle: 25 degree.
• Max. Frame Rate: 30fps VGA.
• Sensitivity: 1.3V / (Lux-sec).
• Signal to Noise Ratio: 46 dB.
• DynamicRange: 52 dB.
• Browse Mode: By row.
• Electronic Exposure: 1 to 510 row.
• Pixel Coverage: 3.6μm x 3.6μm.
• Duck Current: 12 mV/s at 60¿.
• PCB Size (L x W): Approx.  3.5 x 3.5 cm.

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
