OV7670 300KP VGA 640 x 480 12C Camera Module for Arduino ***LOCAL STOCK***

8 were available / new
R170.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
XT Comp10348
99.76 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
1 ratings
Bob Shop ID
285985422

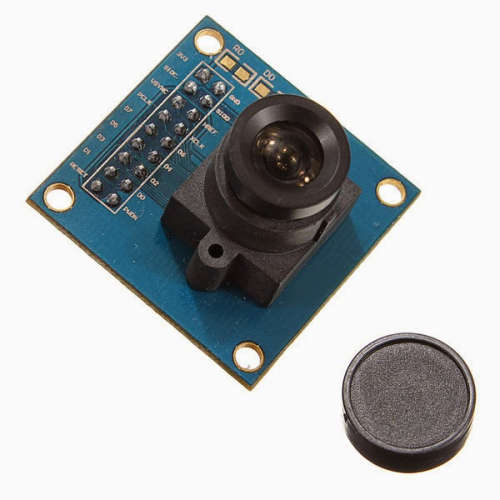

OV7670 300KP VGA 640 x 480 12C Camera Module for Arduino



  • High sensitivity for low-light operation.
  • Low operating voltage for embedded application.
  • Standard SCCB interface compatible with I2C interface.
  • Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2) output format.
  • Support VGA, CIF and from CIF to 40 x 30 format.
  • Vario Pixel method for sub-sampling.
  • Auto Image Control: AEC, AGC, AWB, ABF, ABLC.
  • Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming.
  • ISP includes noise reduction and defect correction.
  • Support image scaling.
  • Lens shading correction.
  • Flicker 50/60Hz auto detection.
  • Color saturation level auto adjust.
  • Edge enhancement level auto adjust.
  • De-noise level auto adjust.



  • Photosensitive Array: 640 x 480.
  • IO Voltage: 2.5V to 3.0V.
  • Operating Power: 60mW/15fpsVGAYUV.
  • Sleeping Mode: <20μA.
  • Operating Temperature: -30 to 70 deg C.
  • Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit).
  • Lens Size: 1/6".
  • Vision Angle: 25 degree.
  • Max. Frame Rate: 30fps VGA.
  • Sensitivity: 1.3V / (Lux-sec).
  • Signal to Noise Ratio: 46 dB.
  • DynamicRange: 52 dB.
  • Browse Mode: By row.
  • Electronic Exposure: 1 to 510 row.
  • Pixel Coverage: 3.6μm x 3.6μm.
  • Duck Current: 12 mV/s at 60¿.
  • PCB Size (L x W): Approx.  3.5 x 3.5 cm.
