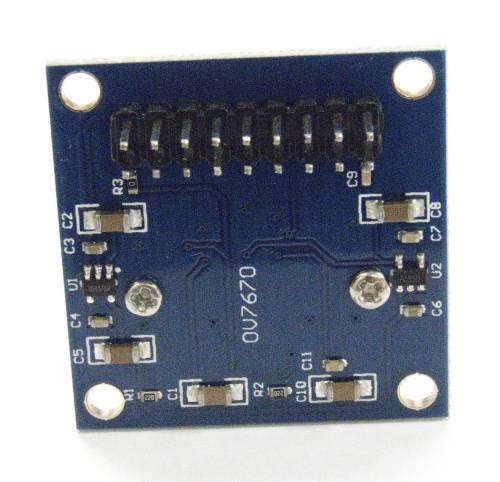

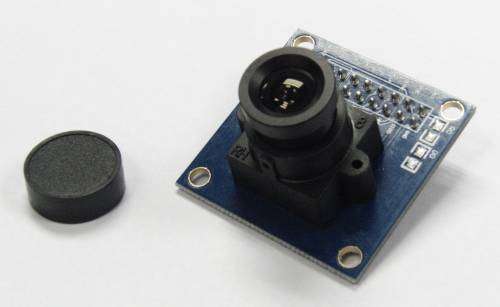

OV7670 300KP VGA Camera Module for Arduino ***LOCAL STOCK***

Low light sensitivity for low illumination applications

Standard SCCB interface, compatible with the I2C interface

RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format

Second-ranking supports VGA, CIF, and from CIF to 40 x of various sizes

VarioPixel sampling method

Automatic control functions including: automatic exposure control, automatic gain control, automatic white balance, automatic eliminate the light stripes, black level calibration automatically. The image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM

50/60 hz automatic detection

Automatically adjust the low saturation (UV)

Edge enhancement automatic adjustment



Key parameters

Sensitive array 640 x480

IO voltage of 2.5 V to 3.0 V

Power dissipation work 60 mw / 15 fpsvgayuv

Dormancy < 20 mu A

Operating temperature - 30 C to 70 C

The output format (8 bits) YUV/YCbCr4:2-2 RGB565/555/444 GRB4:2-2 Raw RGB Data

Optical size 1/6"

View Angle of 25 °

Rate 30 FPS VGA

Sensitivity of 1.3 V/(Lux - SEC)

46dB SNR

Dynamic range of 52 dB

Browse mode line by line

Electronic exposure lines 1 through 510

Pixel area of 3.6 mu m x 3.6 microns

Dark current 12 mV/s at 60C

• Package Includes:
• 1 x OV7670 300KP VGA Camera Module for Arduino

 *** Item Is In Stock And Ready To Ship ***
