Over-Discharge Low Voltage Disconnect and Battery Protection Charger Board

Over-discharge Low Voltage Disconnect  Board Battery Charger Protection 30A 6-48v  (10005418)

NOTE! supports low cut off voltages set between 10 and 11v, so it is not compatible with LiFePo4 type batteries. Only compatible with lead and Gel batteries

6-48V 30A

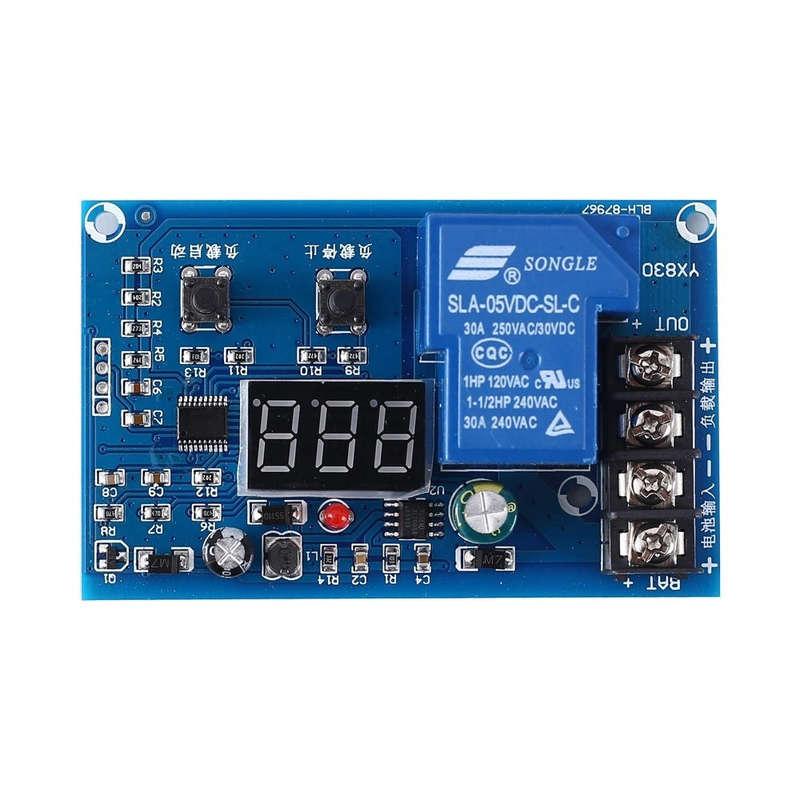

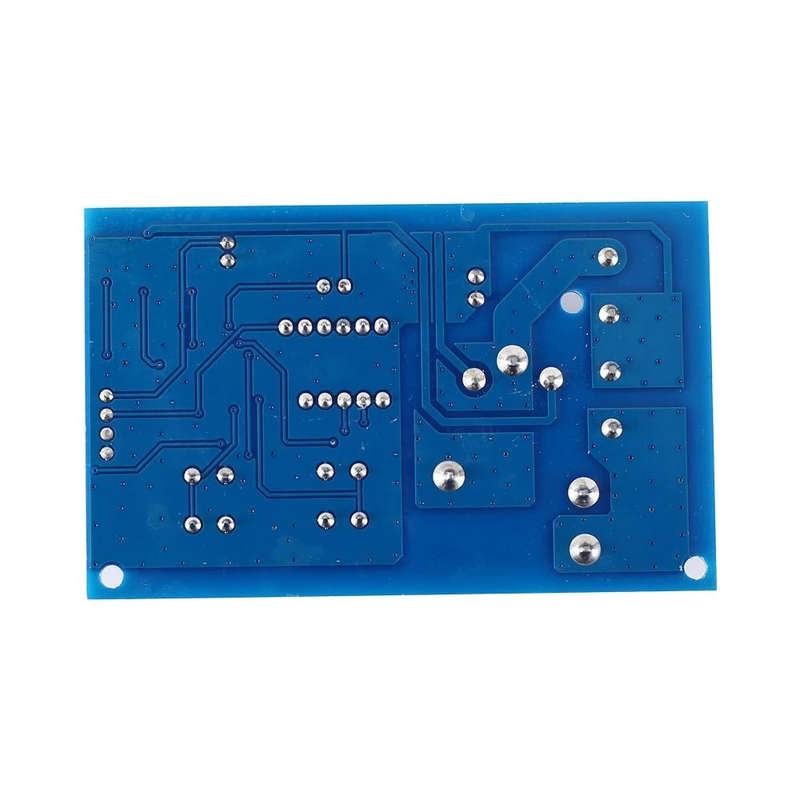

Description: YX830 is a over-discharge protection display module. The load is automatically disconnected when the battery is under voltage, and is automatically connected when the battery is over voltage.

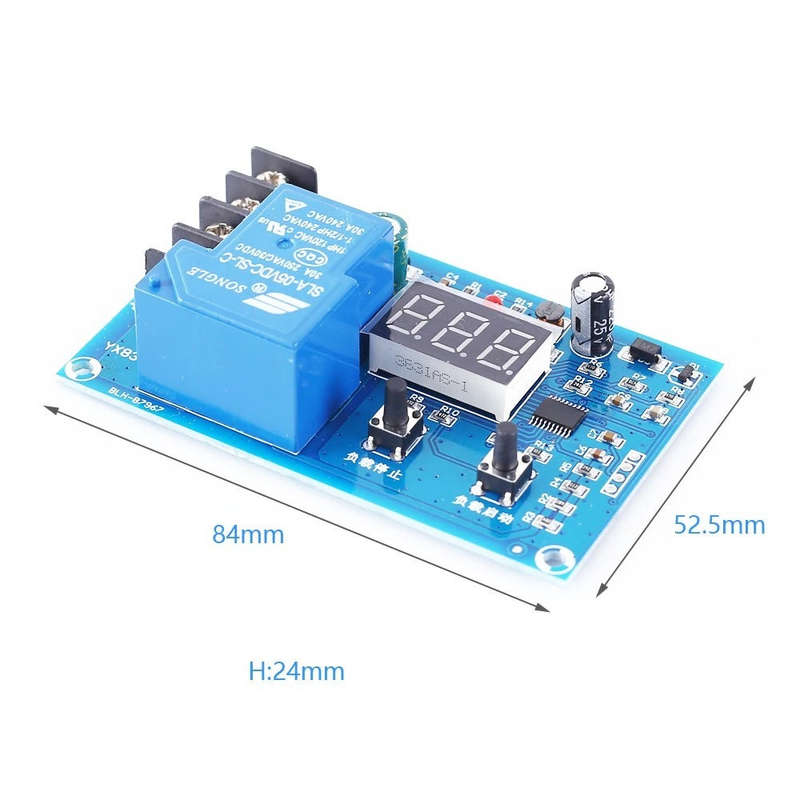

Feature: Suitable for 6V-48V batteries Battery over-discharge protection Charging protection Support set parameters Real-time display voltage Automatic recovery function Parameter power-off memory function Load delayed power-off protection Parameters: Model: YX830 Control Voltage: 6V~60V Voltage Accuracy: 0.1V Control Current: 30A(MAX) Scope of Application: Storage Batteries or Lithium Batteries Work Temperature: -25~85 Work Humidity: 5%~95%RH Size: 84*52.5*24mm Button Setting:

How to use voltage setting one by one ：

>In the normal state of setting values (i.e. when the digital tube is flashing)

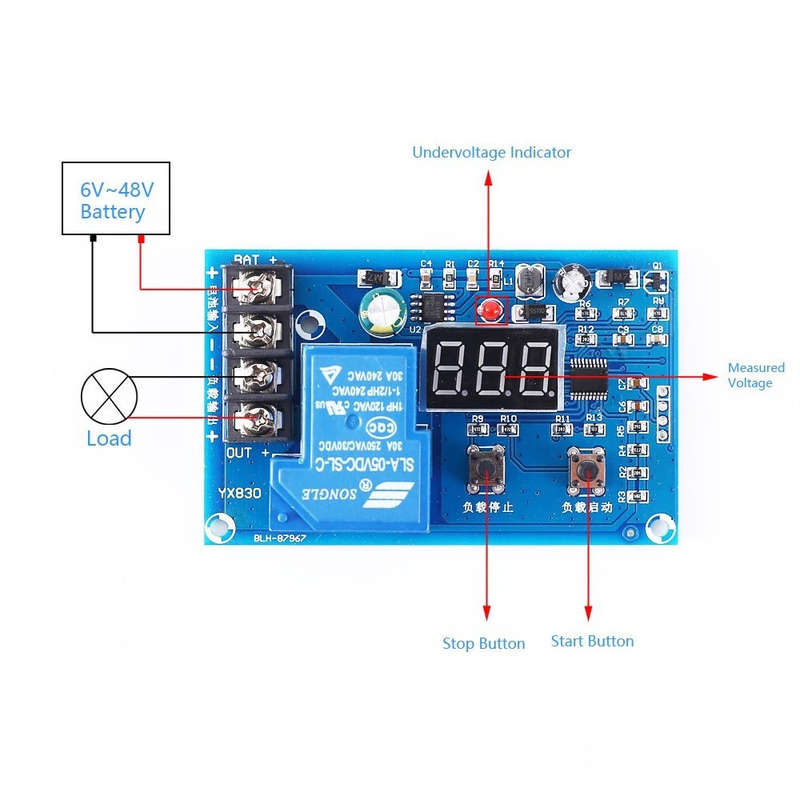

S1 button plays the role of downward voltage adjustment (-minus voltage button) S 2 button plays the role of upward voltage adjustment (+ voltage button)

S1 load stop setting

Under normal display voltage normal state, press S1 button to display current setting load stop voltage.

Long press S1 key to stop the digital tube flashing, set the load stop voltage by S1 and S2 keys.

S2 load start setting

Under normal display voltage normal state, press S2 key to display current setting load start voltage.

Long press S2 key to set the load start voltage by S1 and S2 keys when the digital tube flashes.

Restore the original setting

>Press S1 and S2 keys at the same time, the digital tube will display 888 and the original setting will be restored successfully.

Note: When the load stop voltage value cannot be adjusted upward, set the load start voltage value first.

Package Contents: 1pcs Over-discharge Protection Display Module
