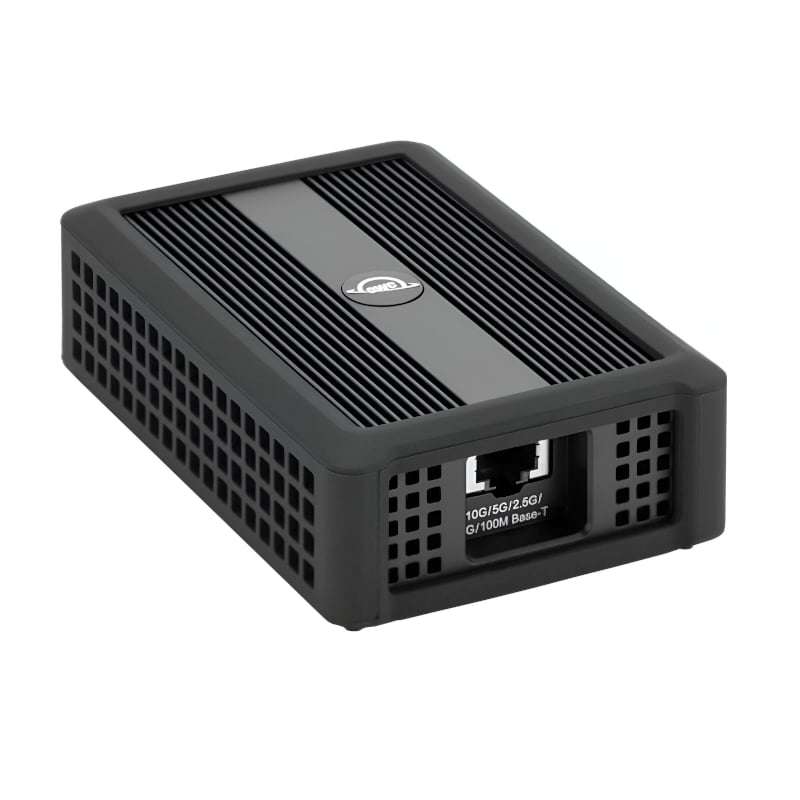

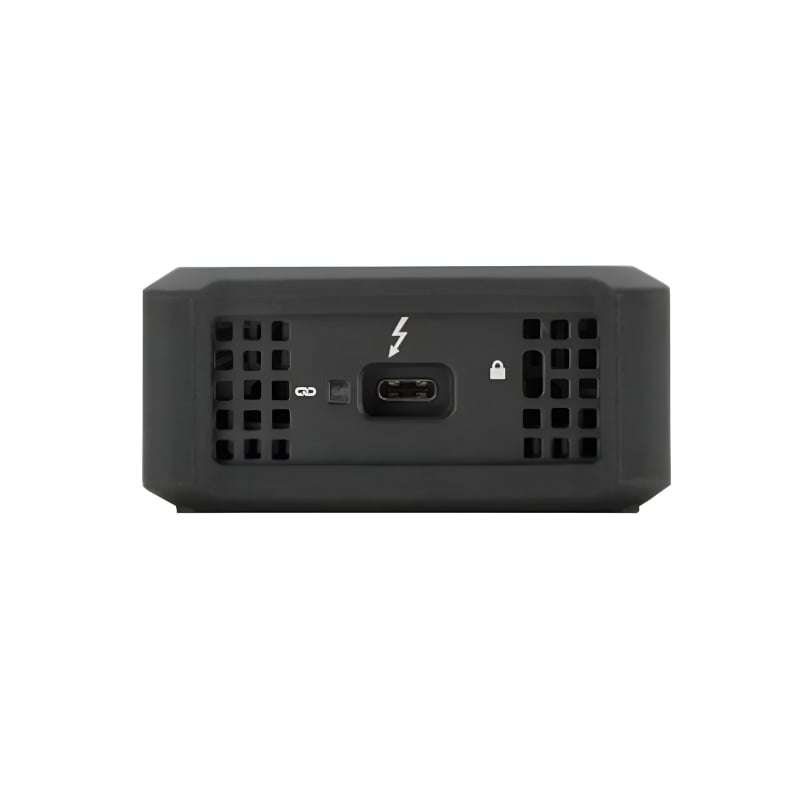

Connecting the OWC Thunderbolt 3 10G Ethernet Adapter to your Thunderbolt 3 Mac or PC allows you to transfer files at lightning-fast speeds. You can now use 10GBASE-T 10Gb Ethernet networks and other devices, such as a Network Attached Storage (NAS) system, to transfer large multimedia files at over 900 MB/s in real-world speeds. While providing the fastest network connection possible, the adapter is also backwards compatible with other Ethernet standards such as 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-Tx.
To ensure maximum efficiency in post-production, multiple editors must collaborate and work as a team. The Thunderbolt 3 10G Ethernet Adapter keeps projects on track and within budget by providing multiple editing workstations with the bandwidth required to share and edit data-intensive creative content such as video, animation, and graphics. Editing can now be done directly from files on a shared RAID storage device or NAS, such as the OWC Jupiter Mini or OWC Jupiter Callisto, saving time from having to download files to individual workstations.
Audio Video Bridging (IEEE 802.1Qav, AVB)-ready gear is required for time-sensitive data such as audio and video media streams. No sweat...The Thunderbolt 3 10G Ethernet Adapter can stream massive amounts of high-quality data to multiple destinations in real-time with extremely low latency over the existing network cable.
FEATURES:
- Warp Speed File Transfers
- Bottleneck-free Editing Collaboration
- Ideal For Ethernet-limited computers
- Dramatically Increases Performance And ROI of Existing Network
- Runs Silently Cool With Rugged And Efficient Portability
SPECIFICATIONS:
- Standards Support_
- 10GBASE-T
- 5GBASE-T
- 2.5GBASE-T
- 1000 BASE-T
- 100 BASE-T
- Ethernet Speeds (RJ-45):
- 10Gb/s (10GBASE-T)
- 5Gb/s (5GBASE-T)
- 2.5Gb/s (2.5GBASE-T)
- 1Gb/s "Gigabit" (1000BASE-T)
- 100Mb/s (100BASE-T)
- 10Mb/s (10BASE-T)
- Jumbo Frame Support_ Yes
- Receive/Transmit Buffer Size_ 320/160 KB per port
- Data Rate_ 10 Gbps
- Thunderbolt 3_ Intel JHL6540
- Ethernet: Aquantia AQC107S
- Mac OS Compatibility_ macOS 10.13 High Sierra
- External Power Adapter_ No
- Power Supply_ Bus-powered
- Wattage: 8.2W
- Housing Material_ Aluminium with protective rubber sleeve
- Input Connection_ RJ-45
- Output Connection_ Thunderbolt 3, Ethernet
- Dimensions: 12.6 x 3.8 x 8.0 cm
- Weight: 458g
WHAT'S IN THE BOX_
- OWC Thunderbolt 3 Ethernet Grey x1
- Thunderbolt Cable x1
- Quick Start Guide x1
Lenght: 13
Width: 5
Height: 16
Colour:
Warranty: 12 Months
