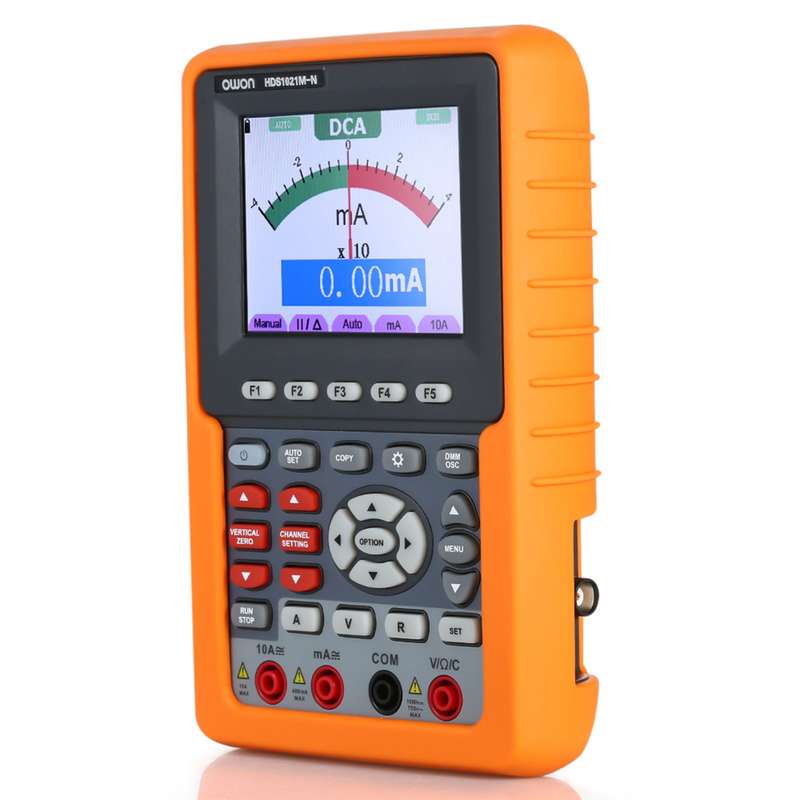

Owon HDS1021M-N Single Channel Oscilloscope Handheld Oscilloscopes Digital Storage Oscillosco

Features:
Digital oscilloscope, multimeter, and frequency meter, 3-in-1.
20MHz bandwidth.
500MS/s real-time sampling rate.
Multiple advanced trigger functions, trigger sensitivity adjustable.
Built-in lithium battery, convenient for outdoor working.
Auto range function, convenient for testing and debugging.
Support SCPI function.
3.7 color LCD screen displayed.

Specifications:

Functions & Specifications of HDS1021M-N
Bandwidth	20MHz
Sample Rate (real time)	500MS/s
Horizontal Scale(s/div)	5ns/div ~ 100s/div, step by 1 ~ 2.5 ~ 5
Rise Time (at input, typical)	￢ﾉﾤ17.5ns
Display	3.7 inch color display with TFT panel (640ￃﾗ480 pixels, 65535 colors)
Channel	single
Input Impedance	1Mￎﾩ ￂﾱ 2%, in parallel with 20pF ￂﾱ 5pF
Record Length	max 6k points on each channel
Interpolation	sin (x) / x
Probe Attenuation Factor	1X￯ﾼﾌ10X￯ﾼﾌ100X￯ﾼﾌ1000X
Input Coupling	DC, AC, and GND
DC Accuracy (average)	average>16: ￂﾱ(5% reading + 0.05div) for ￢ﾖﾳV
Vertical Sensitivity	5mV/div ~ 5V/div (at input)
Vertical Resolution (A/D)	8 bits (2 channels simultaneously )
Max. Input Voltage	400V (PK - PK) (DC + AC, PK - PK, 1Mￎﾩ input impedance, probe attenuation 10 : 1), CAT II
Trigger Type	Edge, Video, Alternate
Trigger Mode	Auto, Normal, Single
Trigger Level	ￂﾱ6 divisions from screen center
Acquisition Mode	Sample, Peak Detect, and Average
DC Gain Accuracy	ￂﾱ3%
Automatic Measurement	Vpp, Vavg, Vrms, Freq ,Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A￢ﾆﾒB , Delay A￢ﾆﾒB
Waveform Math	+, -, ￃﾗ, ￃﾷ, invert, FFT
Waveform Storage	4 waveforms
Lissajous Figure Bandwidth	full bandwidth
Lissajous Figure Phase Difference	ￂﾱ3 degrees
Communication Interface	USB
Power Supply	220V (EU/UK plug), 110V (US plug), 50/60Hz
Plug Type	EU / UK / US (Optional)
Li-ion Battery	7.4V, 6 hours operation
Material	ABS+copper+tin
Screen Size	75 * 56mm / 2.95 * 2.20in
Item Size	186 * 122 * 43mm / 7.32 * 4.80 * 1.69in
Net Weight	1160g / 40.93oz
Package Weight	1607g / 56.68oz
Package Size	34 * 24 * 8cm / 13.39 * 9.45 * 3.15in

Package List:
1 * Oscilloscope
1 * Adapter
1 * Powerline
1 * Probe
1 * Extension Module
1 * CD
1 * Output Terminal
2 * Multimeter Test Lead
1 * USB Cable
1 * Package of Accessory
1 * Quick Guide (English)
