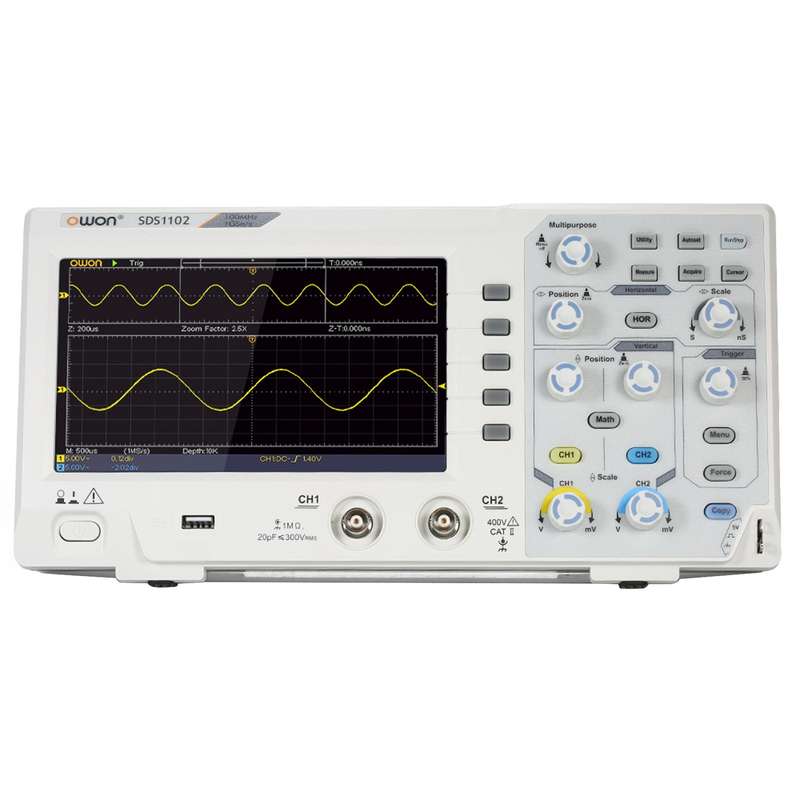

Owon SDS1102 Oscilloscope Oscillometer Digital Storage Oscilloscope 2CH 100MHz 1GS/s 7-inch L

Features:
100MHz bandwidth.
1GS/s sample rate.
Time base range: 2ns/div~100s/div.
3.5ns rise time.
2 channels.
7.0-inch high resolution LCD display.
Support for SCPI and LabVIEW.

Specifications:

Functions & Specifications of SDS1102
Bandwidth	100MHz
Sample Rate	1GS/s
Horizontal Scale(s/div)	2ns/div - 100s/div, step by 1-2-5
Rise Time (at input, typical)	￢ﾉﾤ3.5ns
Channel	2
Display	7 color LCD, 800 ￃﾗ 480 pixels
Input Impedance	1Mￎﾩ ￂﾱ 2%, in parallel with 20pF ￂﾱ 5pF
Channel Isolation	50Hz:100:1, 10MHz:40:1
Max Input Voltage	400V (PK-PK) (DC+AC, PK-PK)
DC Gain Accuracy	ￂﾱ3%
Record Length	10k
DC Accuracy (average)	Average￢ﾉﾥ16: ￂﾱ(3% reading+0.05div) for ￢ﾖﾳV
Probe Attenuation Factor	1X, 10X, 100X, 1000X
LF Respond (AC, -3dB)	￢ﾉﾥ10Hz (at input, AC coupling, -3dB)
Sample Rate / Relay Time Accuracy	ￂﾱ100ppm
Interpolation	sin (x) / x
Interval(￢ﾖﾳT) Accuracy (full bandwidth)	Single: ￂﾱ(1 interval time + 100ppm ￃﾗ reading + 0.6ns), Average￯ﾼﾞ16: ￂﾱ(1 interval time + 100ppm ￃﾗ reading + 0.4ns)
Input Coupling	DC, AC, and GND
Vertical Resolution (A/D)	8 bits (2 channels simultaneously )
Vertical Sensitivity	5mV/div - 5V/div (at input)
Trigger Type	Edge, Video
Trigger Mode	Auto, Normal, and Single
Trigger Level	ￂﾱ5 divisions from screen center
Line / Field Frequency (video)	NTSC, PAL and SECAM standard
Cursor Measurement	￢ﾖﾳV, and ￢ﾖﾳT between cursors
Automatic Measurement	Vpp, Vavg, RMS, Frequency ,Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A￢ﾆﾒB , Delay A￢ﾆﾒB
Waveform Math	+, -, ￃﾗ, ￃﾷ, invert, FFT
Waveform Storage	16 waveforms
Lissajous Figure Bandwidth	full bandwidth
Lissajous Figure Phase Difference	ￂﾱ3 degrees
Communication Interface	USB host, USB device
Frequency Counter	available
Power Consumption	￯ﾼﾜ15W
Fuse	2A, T class, 250V
Power Supply	220V (EU/UK plug), 110V (US plug), 50/60Hz, CAT II
Plug Type	EU / UK / US (Optional)
Item Size	300 * 76 * 153mm / 11.81 * 2.99 * 6.02in
Net Weight	1403g / 3.09lb
Package Weight	1601g / 3.53lb
Package Size	37 * 18 * 11.5cm / 14.57 * 7.09 * 4.53in

Package List:
1 * Oscilloscope
2 * Oscilloscope Probe
1 * Oscilloscope Powerline
1 * Data CD
1 * USB Cable
1 * Package of Accessory
1 * Quick Guide (English)

Note:
Please read the instruction manual in CD carefully to avoid injury and prevent damage to this product.
