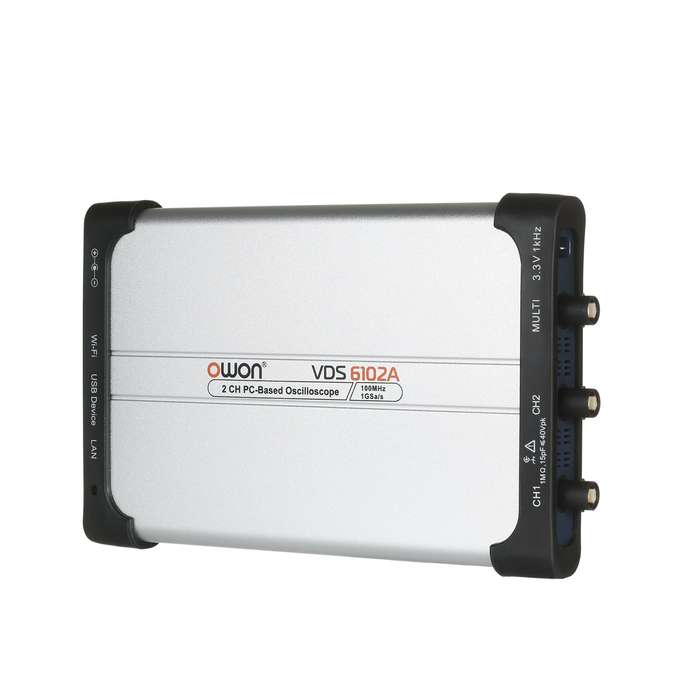

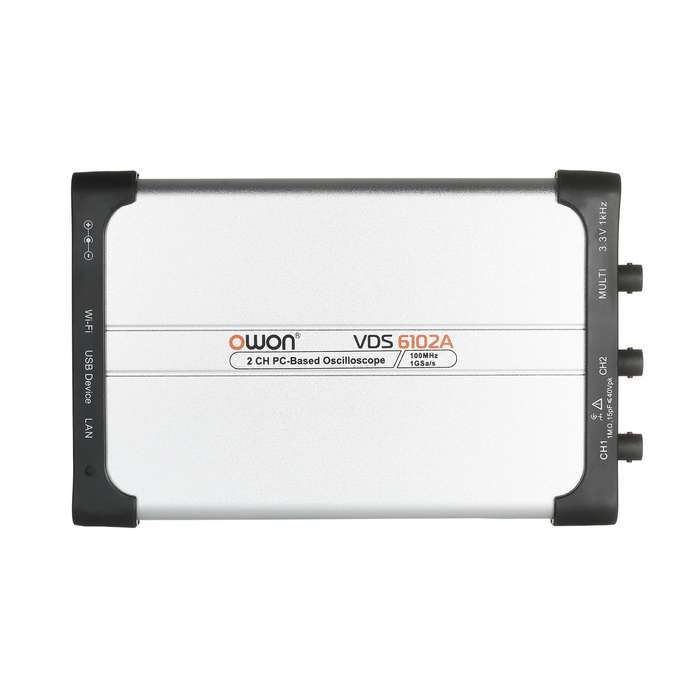

The Owon VDS6102A 2 channel 100 MHz USB oscilloscope is thin and lightweight, which can be connected to the computer via USB, but also via LAN or an optional WiFi module, so the oscilloscope can be used in any workplace. The VDS6000 USB oscilloscopes support both LabVIEW and SCPI protocols, making them easy to control and read. There is also an extra channel that serves as output for a simple 5 MHz function generator, which is also a nice addition to this scope.
All in all, the VDS6000 series oscilloscopes are a nice option when mobility and performance is an important requirement.
Features:
2 channel ultra thin and lightweight design with USB Type-C connect which can be powered by a 5V/2A power bank, so you can use this PC oscilloscope in any workplace. Furthermore, the type-c port support data transform, so you can share oscilloscope data with the computer for secondary analysis.
Up to 100MHz bandwidth, and max 1GS/s real-time sample rate, 14-bit vertical accuracy, more accurate measurement. Standard built-in 5MHz signal generator. Max. 10M record length. Friendly UI, X-Y and waveform can be displayed on the same screen.
Standard SCPI protocol supported, LabVIEW supported.
Secondary development supported on Windows, Linux, Android, and iOS platform.
Multiple Trigger Functions, Supports trigger functions such as edge, video, slope and pulse. Trigger types include NTSC, PAL, and SECAM standard. The trigger mode is automatic, normal, and single adjustable.
This VDS6102A oscilloscope is widely used in electronic circuit testing, circuit function testing, design and manufacturing testing, education and technical training.
Speicification:
Brand: OWON ￂﾠ
Model: VDS6102A
Plug: EU/US/UK (optional)
Model:VDS6102
Bandwidth: 100MHz
Vertical Resolution (A/D): 14bits
Channel: 2+1 (signal source)
Sample Rate: 1 GS/s
Rise Time: ￢ﾉﾤ3.5 ns
Horizontal Scale (s/div): 5ns/divﾽﾞ100s/div, step by 1ﾽﾞ2ﾽﾞ5
Sampling Mode: General sampling, peak detection, average
Record Length: Max 10M
Input Coupling: DC, AC, GND
Input Impedance: 1Mￎﾩￂﾱ2%, in parallel with15pFￂﾱ5pF
Max Input Voltage: 40V Peak value(DC + AC Peak value)
DC Gain Accuracy: ￂﾱ2% when ￢ﾉﾥ2mV
Vertical Sensitivity:2mV/divﾽﾞ5V/div
Trigger Type:Edge, Pulse,Video, Slope
Trigger Mode :Auto, Normal, and Single
Line / Field Frequency (video):NTSC, PAL, and SECAM standard
Automatic Measurement:Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A￢ﾆﾒB , Delay A￢ﾆﾒB , +Width, -Width, +Duty, -Duty
Time Base Accuracy: ￂﾱ25ppm
Interval (￢ﾖﾳT) Accuracy(full bandwidth):Single:ￂﾱ(1interval time+100ppmￃﾗreading+0.6ns),
Average >16:ￂﾱ(1 interval time+100ppmￃﾗreading+0.4ns)
Bandwidth limitation:20 MHz,full bandwidth
Probe Attenuation Factor:1X,10X,100X,1000X
Isolation between channels:50Hz: 100 : 1,10MHz: 40 : 1
Interpolation:Sin(x)/x
Displacement range:ￂﾱ20 V (100 mV/div ￢ﾀﾓ 500 mV/div);
ￂﾱ40 V (1 V/div ￢ﾀﾓ 5 V/div)
Single Bandwidth:full bandwidth
Low frequency response(AC coupling, - 3dB):￢ﾉﾥ5Hz(in BNC )
Cursor Measurement:￢ﾖﾳV, and ￢ﾖﾳT between cursors
Communication Interface:USB (Typ-c);LAN, WIFi
Power Source: 5-15V DC/1.2A
Power Consumption:￢ﾉﾤ8W
Dimensions (W ￃﾗ H ￃﾗ D):190mmￃﾗ120mmￃﾗ18mm
Device Weight:384g
Packing List:
1 * VDS6102A PC Oscilloscope
1 * Power Cord
1 * Adapter
1 * Type-C Cable
1 * Q9 Cable
2 * Probes
1 * Probe Adjust
1 * CD
1 * User Manual
