PH 305

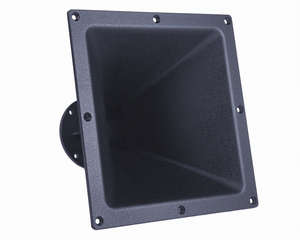

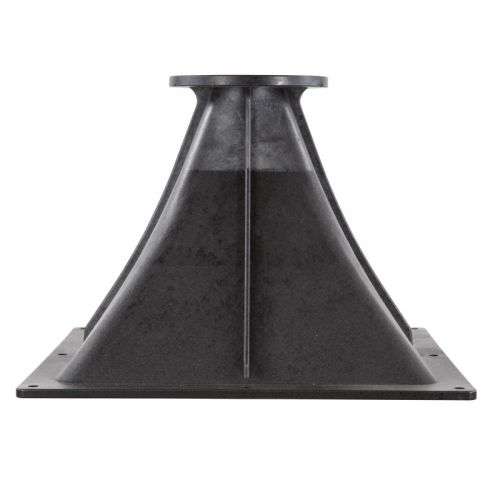

The P Audio PH-305 is a wide bandwidth high frequency horn. The PH-305 is flare rate optimized for additional mid band acoustic loading. The square mouth allows a rotatable directivity configuration. The PH-305 may be rotated between a nominal 60 degree horizontal and 40 degree vertical pattern to a nominal 40 degree horizontal by 60 degree vertical coverage pattern. The flat front design allows the PH-305 to be used in modern professional sound reinforcement systems where a flat front system geometry is specified. The nominal included angles of 60 degrees and 40 degrees make the PH-305 a very high performance medium to long throw high frequency wave guide. This makes the horn ideal for high Q coverage requirements. The PH-305 features a 1.4 inch (35.5mm) diameter throat and is compatible with many high performance compression drivers.
