P100 Power Test Electric Circuit Tester Car Diagnostic Tool for Cars Trucks

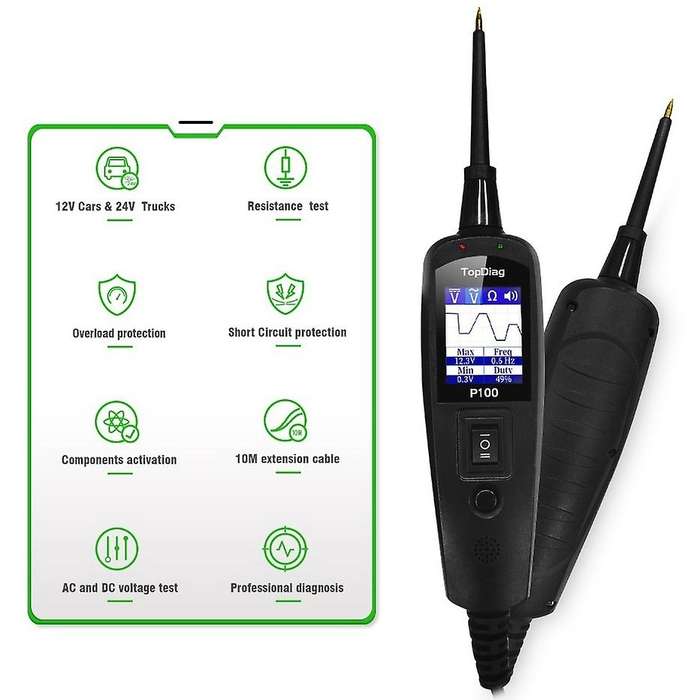

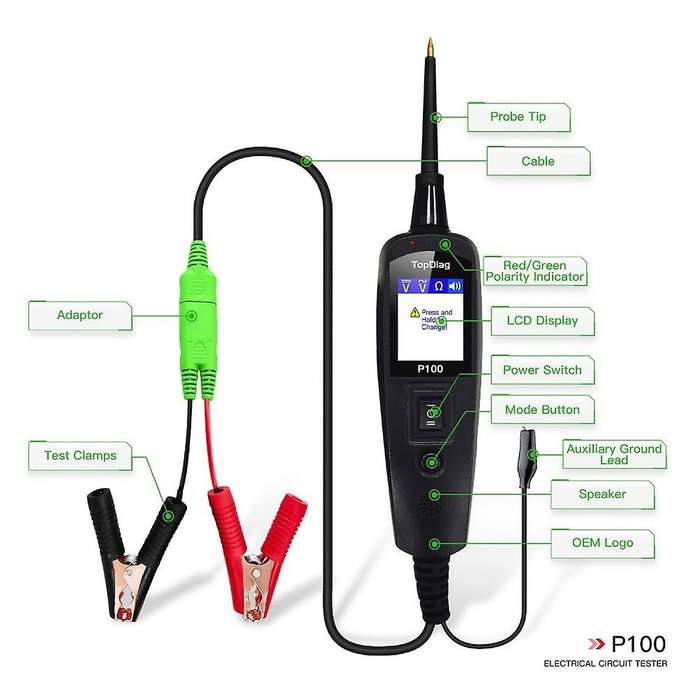

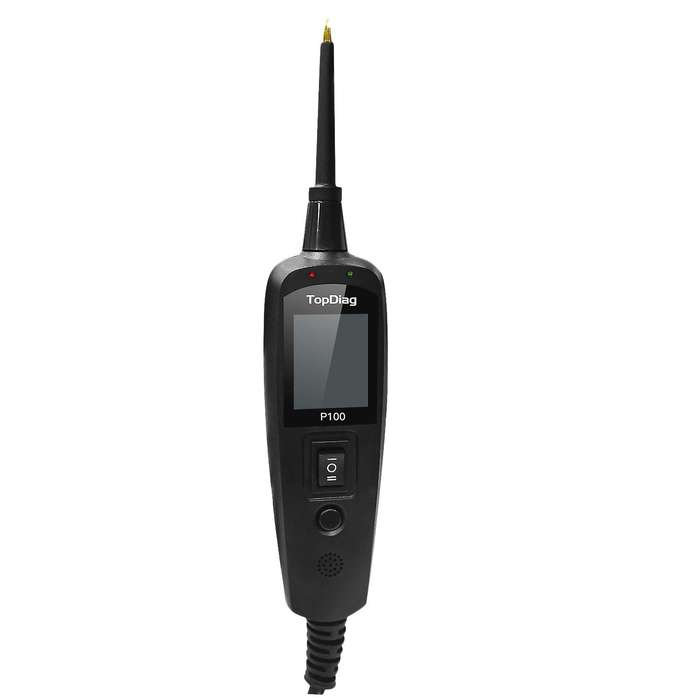

Automotive Electrical Circuit System Tester for Cars and Trucks 0V - 70V1.Voltage & Polarity Testing-Determine DC\/AC Voltage and Postive\/Negative quickly.2.Resistance Continuity Testing- LCD Screen display the value of resistance.3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.4.Components Activation in your hand, in the vehicle or W\/Ground.5.Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.6.Checking for Bad Ground Contacts and Locating Short Circuits.:1. Display: TFT color display (160 x 128 dpi)2. Operating Temperature: 0 to 60 Celsius (32 to 140 Fahrenheit)3. Storage Temperature: -40 to 70 Celsius (-40 to 185 Fahrenheit)4. External Power: 12.0 or 24.0 V power provided via vehicle batteryTest Tool : range : 0-65V +1 digitResistance range : 0-200 K ohmFrequency response of tone pass through0Hz to 10K hz.Circuit BreakerRating current: 1-10 AmpTesting Standard:100% current : no trip150% current: trip in one hour200% current: trip in 3-.300% current: trip in 0.5-4.0 seconds.Colour:BlackMaterial:ABS plasticPackage Contents:1 x P100 Electric Circuit Tester1 x 10M Extension Cable2 x Other Accessories1 x User ManualOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
