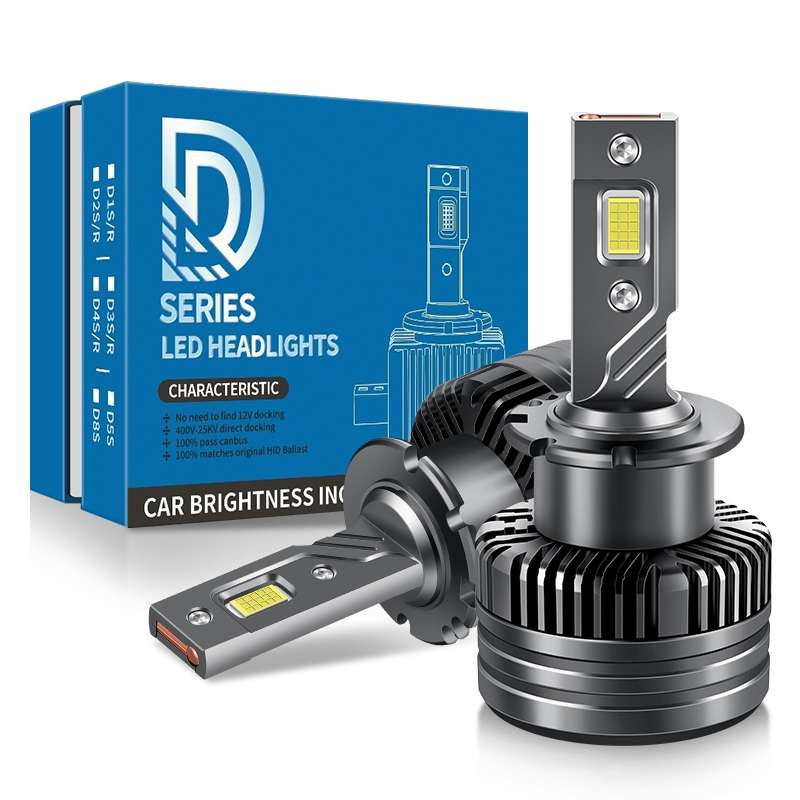

P15 1 Pair D2S / D2R DC10-32V / 35W / 6000K / 4000LM IP68 Waterproof Car LED Headlight

1. New design: Compared with the traditional D series xenon lamp, the new product adopts high-quality LED chip, the color temperature is more stable, green and environmentally friendly, stable and long life, and the new product also adds an adjustable switch, which can adapt to different models.
2. High brightness: The new product uses 30 4070-D series LED chips, high luminous flux, uniform light pattern, no dark spots, super bright light center, providing a wider range of illumination angles and a longer range to illuminate the road.
3. Double copper substrate heat conduction: The lamp bead substrate is composed of two high-quality copper sheets, which has better heat conduction effect and achieves double-sided heat conduction effect. The substrate and the aluminum lamp body are closely combined and fully contacted, allowing the temperature of the lamp bead to be transferred quickly To the bottom fan, the heat dissipation effect is greatly improved.
4. Built-in double-effect integrated heat dissipation system: equipped with a hydraulic fan, the speed can reach 12000rmp, faster heat dissipation, the fan shaft is made of copper, the fan is stable, the noise is lower, and the product life can last up to 50000 hours.
5. The driving scheme adopts a constant current intelligent temperature control module, which can intelligently control the current, maximize the LED efficacy, protect the lights and improve driving safety.
6. The lamp body is made of die-cast aluminum, and the whole lamp body is treated with double-layer oxidation sandblasting, which is rust-proof and durable.
7. Parameters:
- Lamp beads: 30pcs 4070-D series LED chips
- Light type: spotlight
- Color temperature: 6000K
- Brightness: 4000LM
- Power: 35W
- Material: aviation aluminum alloy
- Lifespan: more than 50000H
- Voltage: wide voltage 10-32V
- Working temperature: low temperature -40 degrees Celsius - high temperature 85 degrees Celsius
- Heat dissipation principle: heat dissipation of aviation aluminum double copper substrate; hydraulic fan heat dissipation
- Waterproof grade: IP68
