ASTRA Vertex S+ ONE OF THE HIGHEST EFFICIENCY PANELS ON THE MARKET
Mechanical Characteristics
Solar Cells Monocrystalline
No. of cells 144 cells
Module Dimensions 1762113430 mm (69.0643.151.18 inches)
Weight 21.0kg (46.30 lb)
Front Glass 1.6 mm (0.06 inches), High Transmission, AR Coated Heat Strengthened Glass
Encapsulant material POE/EVA
Back Glass 1.6mm(0.06 inches), Heat Strengthened Glass
Frame 30mm (0.06 inches) Anodized Aluminium Alloy, Black
J-Box IP 68 rated
Cables Photovoltaic Technology Cable 4.0mm2 (0.006 inches2), Portrait: 350/280 mm(13.78/11.02 inches)
Length can be customized
Connector MC4 EVO2 / TS4 Plus / TS4*

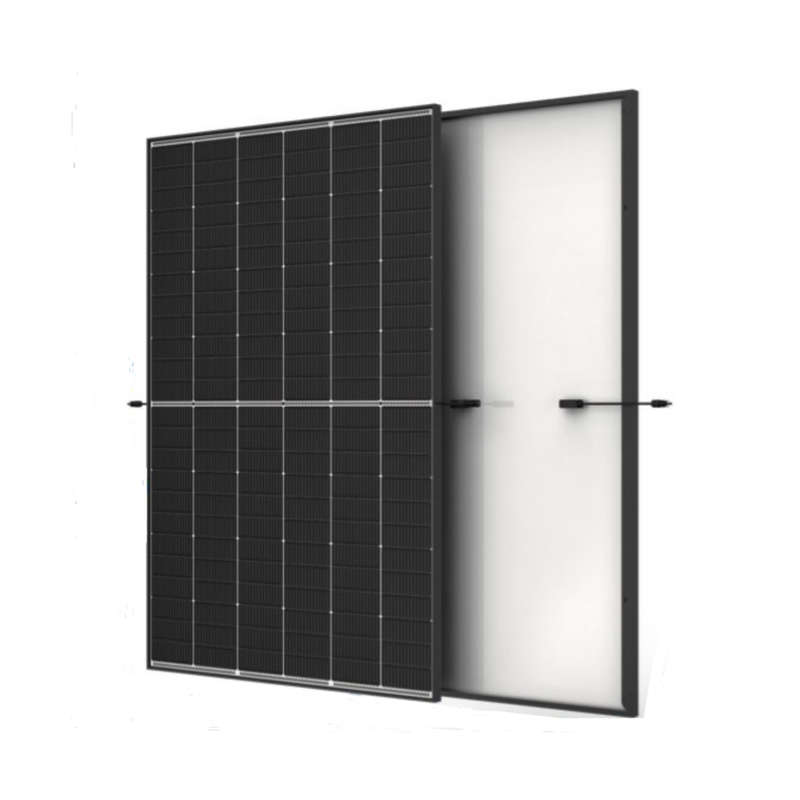

DUAL GLASS MONOCRYSTALLINE MODULE
420W MAXIMUM POWER OUTPUT
O~+5W POSITIVE POWER TOLERANCE
PRODUCT RANGE: 415-440w
22.0% MAXIMUM EFFICIENCY
Smail in size, bigger on power
* Up to 420W, 22.0% module efficiency with high density
Comprehensive Products and System Certificates
o 10 9001: Quality Management System
150 14001: Environmental Management System
18014064: Greenhouse Gases Emissions Verification
interconnect technology
* Multi-busbar technology for better light trapping, lower series
resistance, improved current collection and enhanced reliability
* Reduce installation cost with higher power bin and efficiency
* Boost performance in warm weather with low temperature
coefficient and operating temperature
Dual-glass Design, more secure and sustainable
* Upgraded dual glass of Vertex S, less prone to micro-cracks and
scratches on the back during installation
* Double-glass + innovative non-destructive cutting for improved
mechanical resistance and strength
* Excellent fire rating, weather resistance, salt spray, sand dust,
ammonia performance which is fully applicable in coastal, high
temperature, humidity area and harsh environment
Ultra-low Degradation, longer warranty, higher output
First-year degradation 1% and annual degradation at 0.4%
* Up to 25 years product warranty and 30 years power warranty
Universal solution for residential and C&l rooftops
* Easy for integration, designed for compatibility with existing
mainstream inverters and diverse mounting systems
Perfect size and low weight for handling and installation
* Most valuable solution on low load capacity rooftops (weight
similar to backsheet version)
* Mechanical performance up to 5400 Pa positive load and 4000 Pa
negative load
