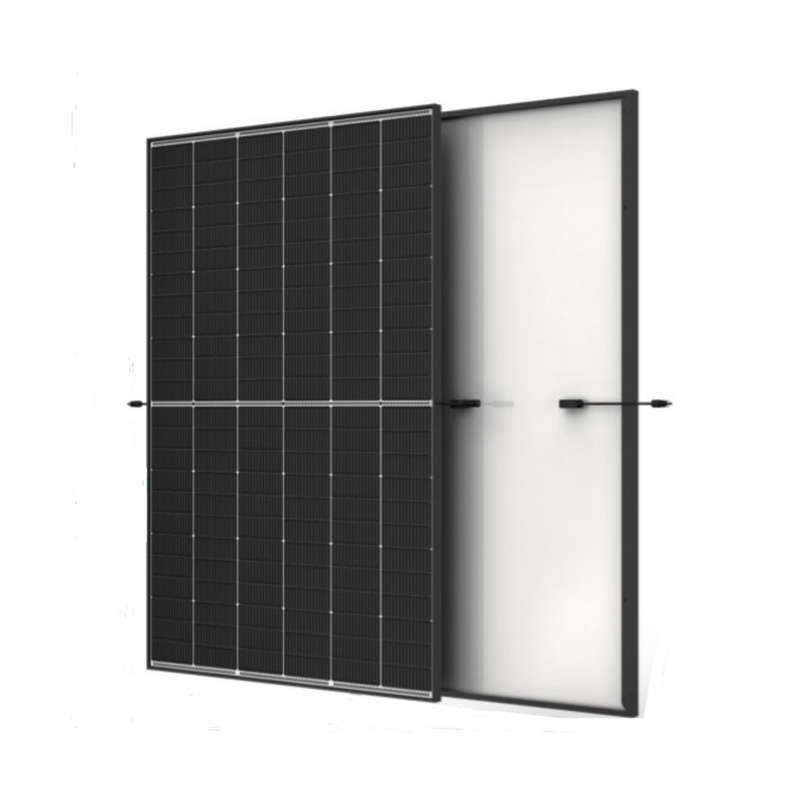

ASTRA Vertex S+ ONE OF THE HIGHEST EFFICIENCY PANELS ON THE MARKET
Mechanical Characteristics
Solar Cells Monocrystalline
No. of cells 144 cells
Module Dimensions 1762×1134×30 mm (69.06×43.15×1.18 inches)
Weight 21.0kg (46.30 lb)
Front Glass 1.6 mm (0.06 inches), High Transmission, AR Coated Heat Strengthened Glass
Encapsulant material POE/EVA
Back Glass 1.6mm(0.06 inches), Heat Strengthened Glass
Frame 30mm (0.06 inches) Anodized Aluminium Alloy, Black
J-Box IP 68 rated
Cables Photovoltaic Technology Cable 4.0mm2 (0.006 inches2), Portrait: 350/280 mm(13.78/11.02 inches)
Length can be customized
Connector MC4 EVO2 / TS4 Plus / TS4*
DUAL GLASS MONOCRYSTALLINE MODULE
420W MAXIMUM POWER OUTPUT
O~+5W POSITIVE POWER TOLERANCE
PRODUCT RANGE: 415-440w
22.0% MAXIMUM EFFICIENCY
Smail in size, bigger on power
* Up to 420W, 22.0% module efficiency with high density
Comprehensive Products and System Certificates
o 10 9001: Quality Management System
150 14001: Environmental Management System
18014064: Greenhouse Gases Emissions Verification
interconnect technology
* Multi-busbar technology for better light trapping, lower series
resistance, improved current collection and enhanced reliability
* Reduce installation cost with higher power bin and efficiency
* Boost performance in warm weather with low temperature
coefficient and operating temperature
Dual-glass Design, more secure and sustainable
* Upgraded dual glass of Vertex S, less prone to micro-cracks and
scratches on the back during installation
* Double-glass + innovative non-destructive cutting for improved
mechanical resistance and strength
* Excellent fire rating, weather resistance, salt spray, sand dust,
ammonia performance which is fully applicable in coastal, high
temperature, humidity area and harsh environment
Ultra-low Degradation, longer warranty, higher output
¢ First-year degradation 1% and annual degradation at 0.4%
* Up to 25 years product warranty and 30 years power warranty
Universal solution for residential and C&l rooftops
* Easy for integration, designed for compatibility with existing
mainstream inverters and diverse mounting systems
« Perfect size and low weight for handling and installation
* Most valuable solution on low load capacity rooftops (weight
similar to backsheet version)
* Mechanical performance up to 5400 Pa positive load and 4000 Pa
negative load
