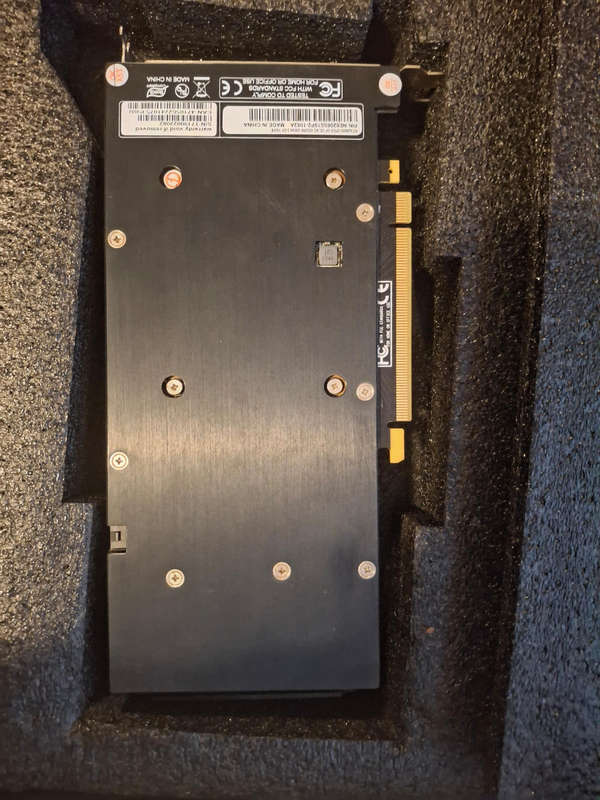

Palit RTX 2060 Super 8GB

In good condition runs all the latest games. Tested and working 100 percent.

Graphics Processor

GPU Name

TU106

GPU Variant

TU106-410-A1

Architecture

Turing

Foundry

TSMC

Process Size

12 nm

Transistors

10,800 million

Density

24.3M / mm²

Die Size

445 mm²

Chip Package

BGA-2228

Graphics Card

Release Date

Jul 9th, 2019

Generation

GeForce 20

Predecessor

GeForce 10

Successor

GeForce 30

Production

Active

Bus Interface

PCIe 3.0 x16

Clock Speeds

Base Clock

1470 MHz

Boost Clock

1650 MHz

1710 MHz (+4%)

Memory Clock

1750 MHz

14 Gbps effective

Memory

Memory Size

8 GB

Memory Type

GDDR6

Memory Bus

256 bit

Bandwidth

448.0 GB/s

Render Config

Shading Units

2176

TMUs

136

ROPs

64

SM Count

34

Tensor Cores

272

RT Cores

34

L1 Cache

64 KB (per SM)

L2 Cache

4 MB

Theoretical Performance

Pixel Rate

105.6 GPixel/s

109.4 GPixel/s

Texture Rate

224.4 GTexel/s

232.6 GTexel/s

FP16 (half)

14.36 TFLOPS

14.88 TFLOPS (2:1)

FP32 (float)

7.181 TFLOPS

7.442 TFLOPS

FP64 (double)

224.4 GFLOPS

232.6 GFLOPS (1:32)

Board Design

Slot Width

Dual-slot

Length

229 mm

235 mm

9 inches

9.3 inches

Width

113 mm

112 mm

4.4 inches

Height

35 mm

40 mm

1.4 inches

1.6 inches

TDP

175 W

Suggested PSU

450 W

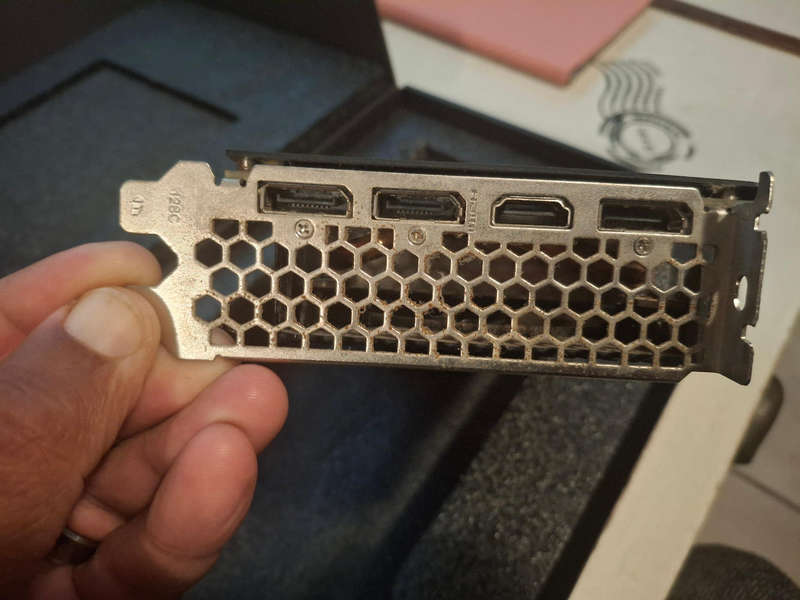

Outputs

1x DVI

1x HDMI 2.0

2x DisplayPort 1.4a

1x USB Type-C

1x HDMI 2.0

3x DisplayPort 1.4a

Power Connectors

1x 8-pin

Board Number

PG160 SKU 65
