51.2V 100Ah (5.12kWh) Lithium Battery featuring 16 x cells.
This portable unit is equipped with lockable caster wheels for mobility and includes additional brackets for secure wall mounting. It comes with a color touchscreen interface, allowing selection between supported inverter models (limited range). Also featured are large, easy-to-read battery status LEDs and foldable carry handles for convenience.
Features:
- Colour touch-screen
- New / 1st life - LiFePO4 cells (A Grade, Top quality, First life cells)
- Low environmental impact
- Superior thermal stability
- High peak power rating
- Long cycle life
- Intelligent Battery Management System (BMS)
- BMS communication compatibility with various Inverter manufacturers (detailed list in user manual)
- RS485 BMS communication
- CAN bus
- Parallelable up to 16 battery packs to a total of 81kWh
Specifications:
| Battery Type | LifePO4 |
| Model | 51.2V100AH |
| Normal Charging Voltage | 58.4V |
| Nominal Capacity | 100Ah |
| Rated Energy | 5.12kWh |
| Net Weight | 45Kg |
| Combination method | 16S |
| Operating Temperature | -20°C ~ 65°C |
| Discharge Cut-off Voltage | 44.8V |
| Voltage range | 43.2V - 58.4V |
| Floating Charge Voltage | 55.2V - 56V |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Recommended Charge Current | 20A |
| Communication | CAN/RS485/RS232/Dry Contact |
| IP Level | IP30 |
| Weight | 390KG |
| Dimensions | 96 x 76 x 112cm |
| Temperature | Charging : 0 ~ 55°C Discharging : -20 ~ 60°C Storage : -10 ~ 30°C |
Here is a guide from Battery University on how to prolong Li-battery life.
To determine how long the batteries will last for a specific load, please click here.
Settings:
The correct settings on the inverter will aid in ensuring optimal battery life. PLEASE ENSURE CORRECT INVERTER SETTINGS.
Intelligent BMS features:
- Overcharge detection
- Over-discharge detection
- Overcurrent detection
- Short detection
- Temperature detection
- Auto cell balancing
- Communication
Communication:
The BMS has three RS485 ports, one CAN port & one RS232 port.
Two RS485 ports are used for the parallel connection of multiple batteries.
The RS485 and CAN ports are used for inverter-battery communication.
The RS232 port allows for real-time monitoring of the following:
- Total battery bank capacity
- Individual cell capacity
- Battery bank current
- Environment temperature
- Cell temperature
- Charging/discharging current
- Cycle count estimate
The values can be logged on a connected computer or the BMS and can be downloaded on request.
Warranty:
The battery pack comes with a factory-backed 5-year warranty. 70% of rated capacity within 5 years, or 6000+ cycles. Please take note of the full warranty terms and conditions.
Delivery:

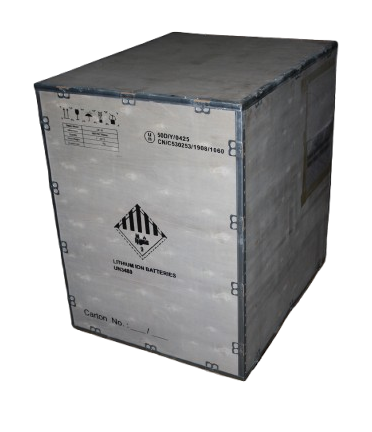

There is no delivery for palettes available. Collection only.
What's in each box:
- Battery.
- Two brackets.
- Bolts and nuts to mount the battery onto a wall.
- 25mm Battery Cable 1m length.
- RS485 Communication Cable 1m length.
- User manual.
Note:
It is not recommended to parallel an older battery with a new battery. The internal resistances of the batteries and the firmware may differ.
