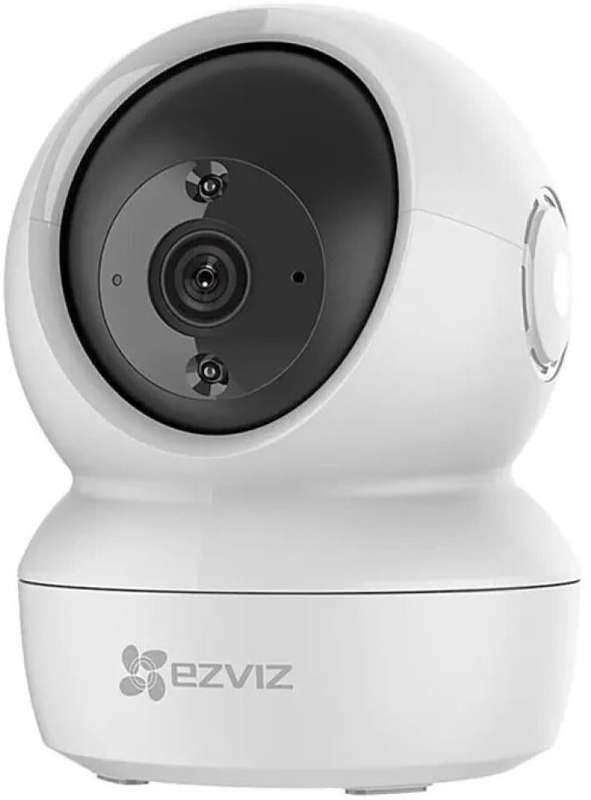

PAN & TILT SMART HOME CAMERA 1080P

PAN & TILT SMART HOME CAMERA 1080P - H6C-P

EZVIZ H6C Pro Type C

Smart Security Catering For Every Household

Specifications

Model: CS-H6c-R105-1L2WF

Camera

Image Sensor: F1.6@1/3" Progressive Scan CMOS

Shutter Speed: Self-Adaptive Shutter

Lens: 4mm, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical)

Lens Mount: M12

Day & Night: IR-Cut filter with Auto-Switching

DNR: 3D DNR

WDR: Digital WDR

Compression

Video Compression: H.264/H.265

Video Bit Rate Adaptive Bit Rate.


Max. Resolution: 1920 × 1080

Frame Rate: Max:25fps; Self-Adaptive during Network Transmission

Network

Smart Alarm: Motion detection, Human Detection, Human Tracking, Big Noise Detection, Auto patrol

Wi-Fi Pairing: AP paring

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Interface

Storage: Micro SD Card Slot (Max. 512G)

Power: TYPE-C

Wired Network: RJ45 X 1 (10M/100M Self-Adaptive Ethernet Port)

Wi-Fi

Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz - 2.4835 GHz

Channel Bandwidth: Supports 20MHz

Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps

Output Power(EIRP): 19 dBm

Antenna Gain: 1.9 dBi

General

Operating Conditions: -10 to 45 (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply: DC 5V/1A

Power Consumption: 5W max

IR Range: MAX. 10 Meters(32.81ft)

Dimensions: 88mm x 88.2 mm x 119mm (3.46 x 3.47 x 4.69)

Packaging Dimensions: 103mm x 103mm x 168mm (4.06 x 4.06 x 6.61)

Bare Weight: 218g(0.48lb)

In The Box

Camera

Power Adapter

Power Cable

Drill Template

Mounting Plate

EZVIZ Screw Kit

Regulatory Information

Quick Start Guide

Certifications

Certifications: CE / UL / WEEE / REACH / RoHS / UKCA
