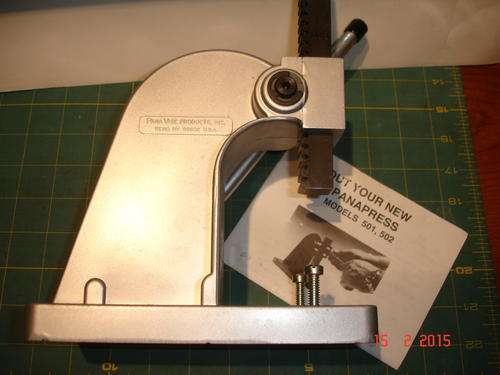

PANAPRESS 1/4 Ton ARBOR PRESS mod 501

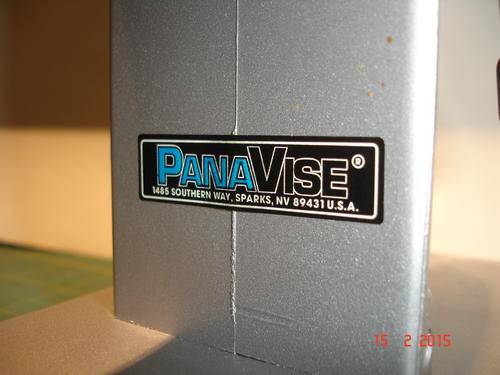

This press is made by Panavice in the USA...It is quality built




Model: 501 Precision PanaPress
Ideal for pressing bearings, sleeves, collars, forming and assembling small parts, broaching, staking, etc.
This precision 1/4 ton (227kg)
PanaPress (arbor press)
is extremely useful in manufacturing or as a repair tool.

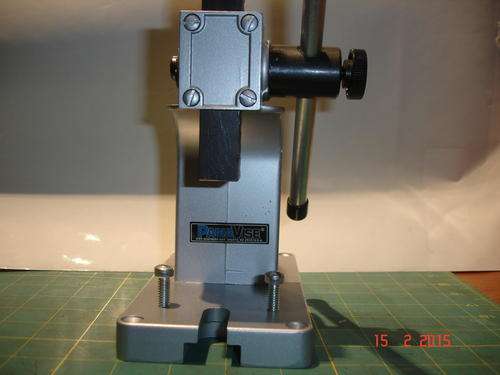

• Reversible ram applies up to 1/4 ton (500 lbs. / 227kg) of pressure and is 19.1mm x 19.1mm square and 149.2mm long
• One end of the ram is reamed 6.4mm for adding tooling

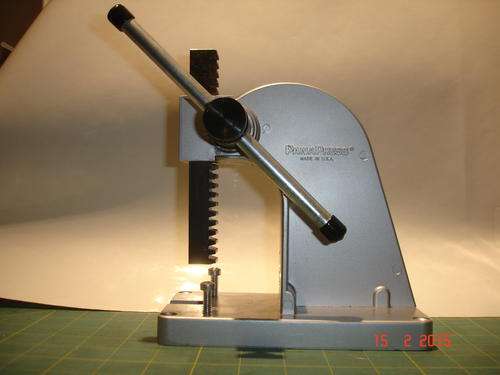

• Arm is 203.2mm long
• Base footprint is 94mm x 177.8mm and includes four 6.3mm holes countersunk at the corners for bolting to a work surface
• Two additional holes for mounting Retrofit Kits on the base are pre-drilled and tapped 1/4-20 and may be used for customer tooling
• Height from base to top of back - not including variable ram height or Arm Length:177.8mm
Weight: 5.4 lbs. (2.5kg)
