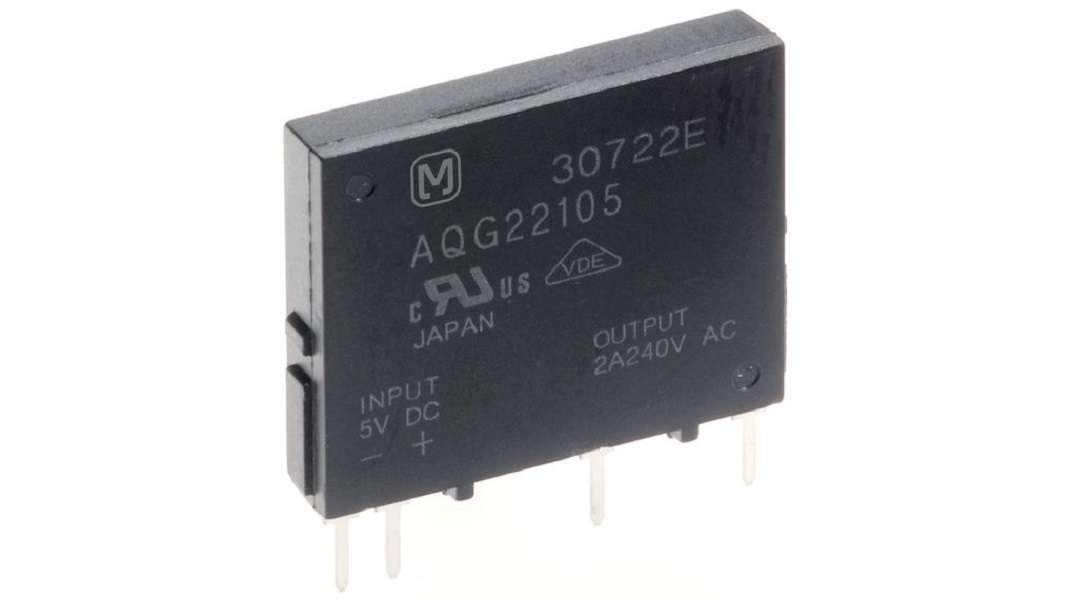

Panasonic (AQG22105) Solid State Relay, 2 A, 264 VAC, PCB

Product InformationContact Configuration: -Load Current: 2AOperating Voltage Max: 264VACRelay Mounting: PCBRelay Terminals: Through HoleSwitching Mode: Zero CrossingOperating Voltage Min: 75VACControl Voltage Min: 4VDCControl Voltage Max: 6VDCProduct Range: AQGProduct OverviewThe AQG22105J is a Solid State Relay with zero crossing switching mode andthrough hole terminals. This AQ-G-series PCB mount relay features snubbercircuit is integrated to prevent malfunction caused by the rapid rise of voltageon the output side, such as inductive load and current. Space saving, verticalsize with a maximum thickness of 4.5mm.3000VAC High dielectric strength0.3kR Input impedance1V Minimum drop-out voltage30A Non-repetitive surge current1/2 cycle of voltage sine wave + 1ms Maximum operate/release time-30 to 80°C Ambient temperature rangeApplicationsHVAC, Computers & Computer Peripherals
