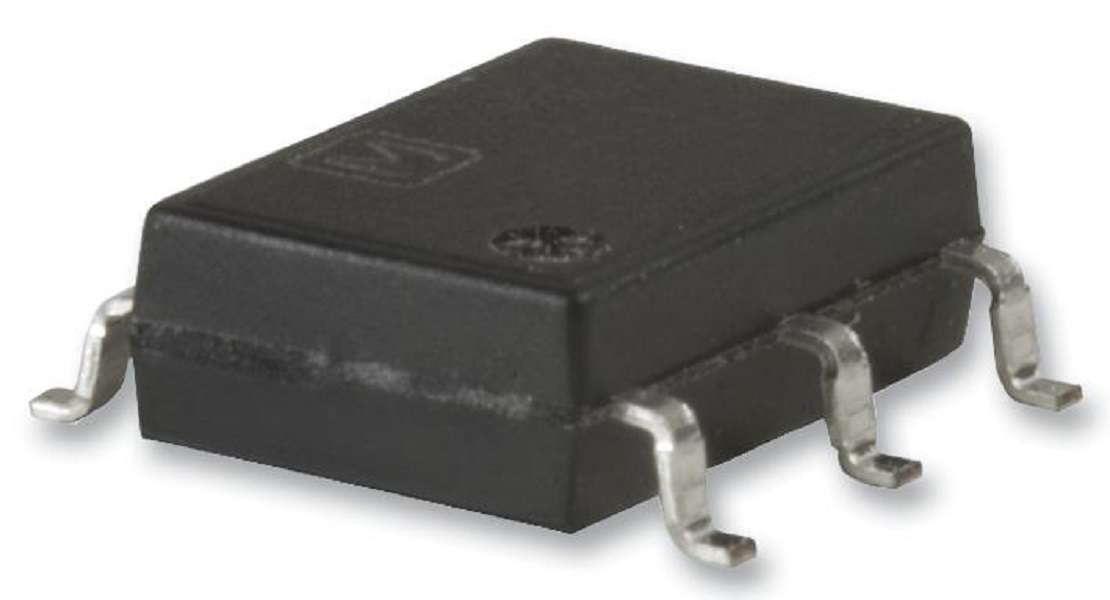

Panasonic (AQV212S) MOSFET Relay, 60 V, 500 mA, 2.5 ohm, SPST-NO

Product Information:Contact Configuration: SPST-NOContact Form: SPST-NO (1 Form A)Load Current: 500mALoad Type: AC / DCLoad Voltage Max: 60VMOSFET Relay Package Style: SOP-6On State Resistance Max: 2.5ohmRelay Mounting: Surface MountIsolation Voltage: 1.5kVForward Current If: 700µARelay Terminals: Gull WingI/O Capacitance Typ: 0.8pFOff State Leakage Current Max: 1µAProduct Range: PhotoMOS AQV21Product Overview:The AQV212S is a Solid State Relay with SPST-NO contact and surface-mountterminals. This AQV-series PhotoMOS GU 1-form-A relay feature extremely lowclosed-circuit offset voltage to enable control of low-level analogue signalswithout distortion. Eliminates the need for a counter electromotive forceprotection diode in the drive circuits on the input side. Controls various typesof loads such as relays, motors, lamps and solenoids.Controls low-level analogue signalsStable on resistanceLow-level off state leakage current550mW Power dissipation2ms Turn-on and 0.2ms turn-off maximum time-40 to 85°C Operating temperature rangeApplications:Communications & Networking, Computers & Computer Peripherals, Test &Measurement, Motor Drive & Control
