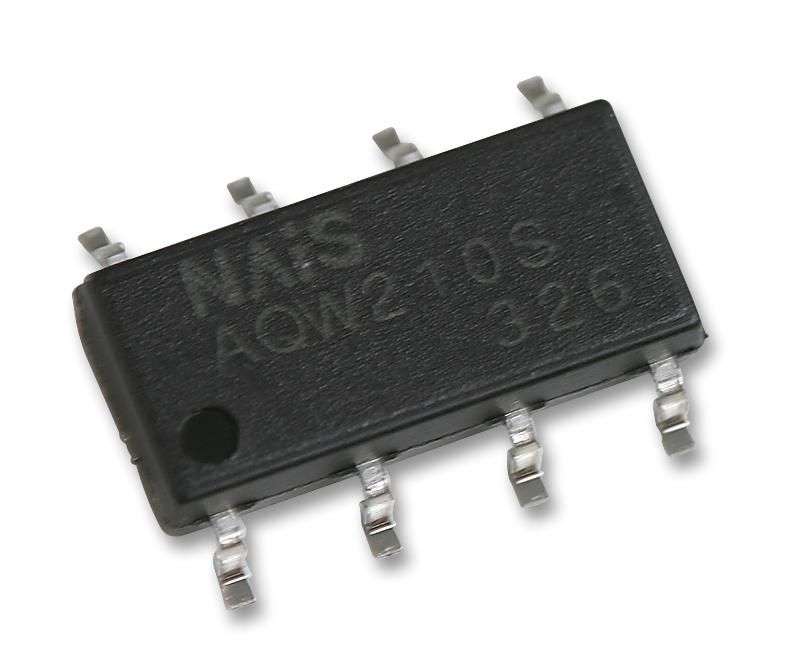

Panasonic (AQW210S) MOSFET Relay, 350 V, 100 mA, 35 ohm, DPST-NO

Product Information:Contact Configuration: DPST-NOContact Form: DPST-NO (2 Form A)Load Current: 100mALoad Type: AC / DCLoad Voltage Max: 350VMOSFET Relay Package Style: SOP-8On State Resistance Max: 35ohmRelay Mounting: Surface MountIsolation Voltage: 1.5kVForward Current If: 900µARelay Terminals: Gull WingI/O Capacitance Typ: 0.8pFOff State Leakage Current Max: 1µAProduct Range: PhotoMOS AQWProduct Overview:The AQW210S is a Solid State Relay with DPST-NO contacts and surface-mountterminals. This AQW-series PhotoMOS GU 2-form-A relay feature extremely lowclosed-circuit offset voltage to enable control of low-level analogue signalswithout distortion.Controls low-level analogue signalsLow-level off state leakage current650mW Power dissipation0.5ms Turn-on and 0.2ms turn-off maximum time-40 to 85°C Operating temperature rangeApplications:Communications & Networking, Computers & Computer Peripherals, Test &Measurement
