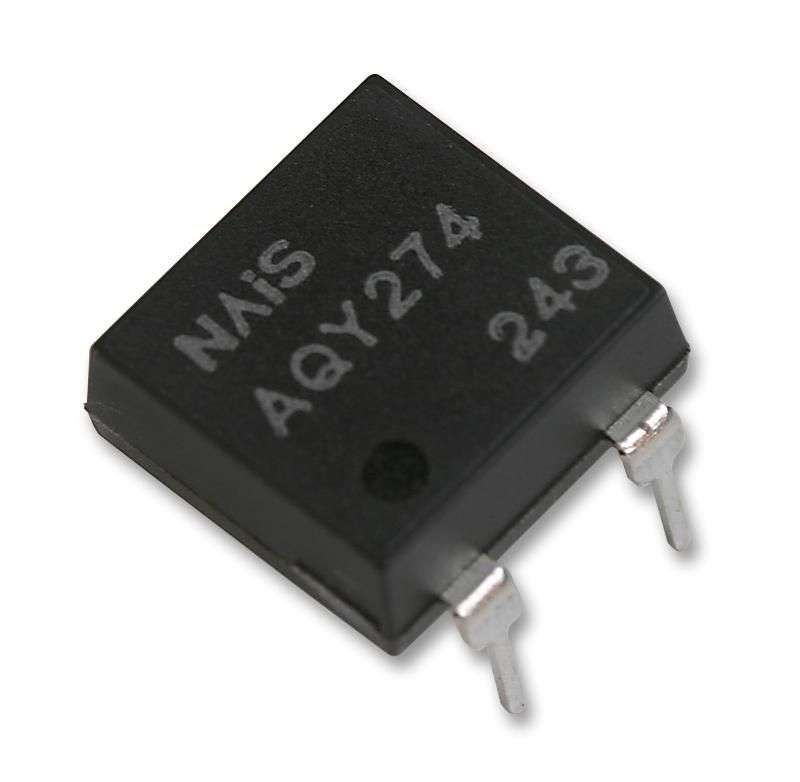

Panasonic (AQY274) MOSFET Relay, 400 V, 350 mA, 3.2 ohm, SPST-NO

Panasonic (AQY274) MOSFET Relay, 400 V, 350 mA, 3.2 ohm, SPST-NO

New 26 available
R619.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3105623
Bob Shop ID
645126793
Product Information:Contact Configuration: SPST-NOContact Form: SPST-NO (1 Form A)Load Current: 350mALoad Type: AC / DCLoad Voltage Max: 400VMOSFET Relay Package Style: DIP-4On State Resistance Max: 3.2ohmRelay Mounting: Through HoleIsolation Voltage: 2.5kVForward Current If: 1mARelay Terminals: PC PinI/O Capacitance Typ: 0.8pFOff State Leakage Current Max: 10µAProduct Range: PhotoMOS AQY27Product Overview:The AQY274 is a flat power-DIP4-pin type MOSFET Relay with high capacity ofcontinuous load up to 0.35A current. The maximum load can be controlled with 5mAinput current. The ON-resistance is low at 2.1R typical.AC/DC dual use750mW Total power dissipation-40 to 85°C Operating temperature rangeApplications:Industrial, Test & Measurement
Add to cart
