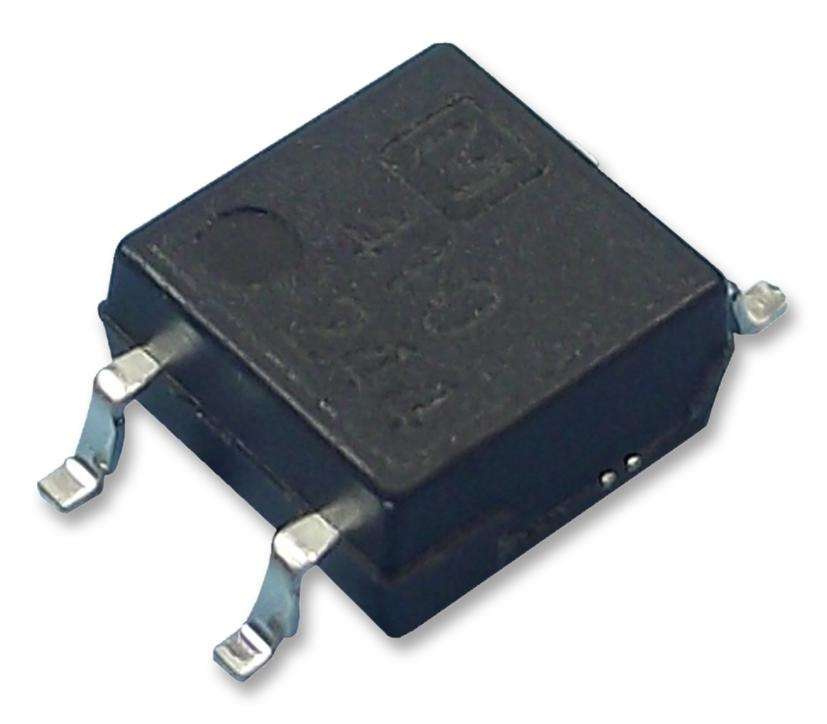

Panasonic (AQY410S) MOSFET Relay, 350 V, 120 mA, 25 ohm, SPST-NC

Product Information:Contact Configuration: SPST-NCContact Form: SPST-NC (1 Form B)Load Current: 120mALoad Type: AC / DCLoad Voltage Max: 350VMOSFET Relay Package Style: SOP-4On State Resistance Max: 25ohmRelay Mounting: Surface MountIsolation Voltage: 1.5kVForward Current If: 850µARelay Terminals: Gull WingI/O Capacitance Typ: 0.8pFOff State Leakage Current Max: 1µAProduct Range: PhotoMOS AQY41Product Overview:The AQY410S is a normally-closed SOP4-pin type MOSFET Relay features extremelylow closed-circuit offset voltage to enable control of low-level analoguesignals without distortion. The built-in MOSFET processed by our proprietarymethod, DSD (Double-diffused and Selective Doping) method.AC/DC dual use1µA Maximum low-level OFF-state leakage current350mW Total power dissipation-40 to 85°C Operating temperature range
