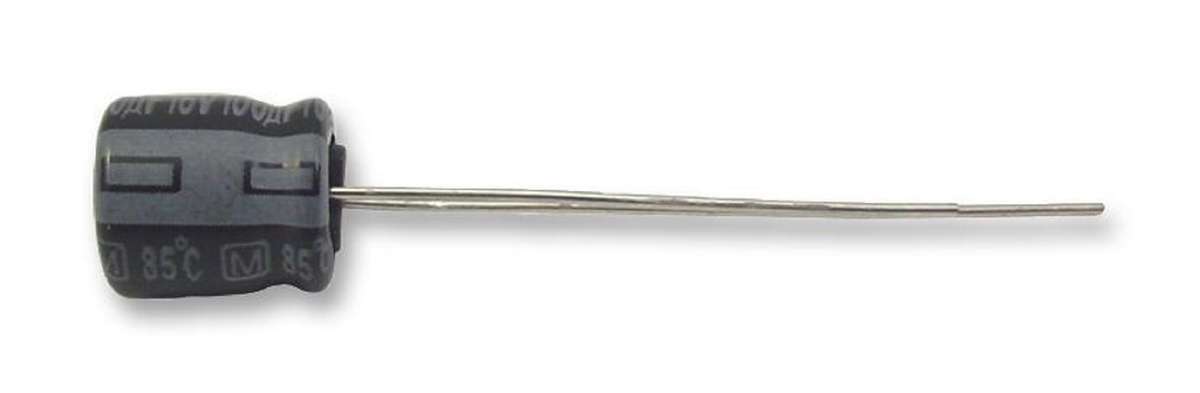

Panasonic (ECA1AHG221) Electrolytic Capacitor, 220 µF, 10 V

Electrolytic Capacitor, 220 µF, 10 V, ± 20%, Radial Leaded, 1000 hours @ 105°C,PolarProduct InformationCapacitance: 220µFVoltage Rating: 10VVoltage(DC): 10VCapacitance Tolerance: ± 20%Capacitor Terminals: Radial LeadedLifetime @ Temperature: 1000 hours @ 105°CPolarity: PolarDiameter: 6.3mmSeries Name: NHGLead Spacing: 2.5mmHeight: 11.2mmProduct Diameter: 6.3mmOperating Temperature Min: -55°COperating Temperature Max: 105°CProduct Height: 11.2mmESR: -Lead Diameter: 0.5mmProduct Length: -Qualification: AEC-Q200Supplier Package: -Product Range: NHGAutomotive Qualification Standard: AEC-Q200Product OverviewThe Panasonic NHG series is automotive grade Type A, radial leaded polarizedaluminium electrolytic capacitor. NHG series parts cover broad range of voltageratings and capacitance values. Typical applications include audio, video andgeneral purpose electronic circuits.Capacitance value ranges 2.2µF to 22000µF for 6.3VDC to 100VDCCapacitance value ranges 1µF to 330µF for 160VDC to 450VDCAvailable in -55°C to 105°C and -25°C to 105°C temperature range based on ratedvoltageCapacitance tolerance is ±20%Endurance at 105°C from 1000h to 2000hLow ESR and high ripple currentAutomotive grade AEC-Q200 compliant
