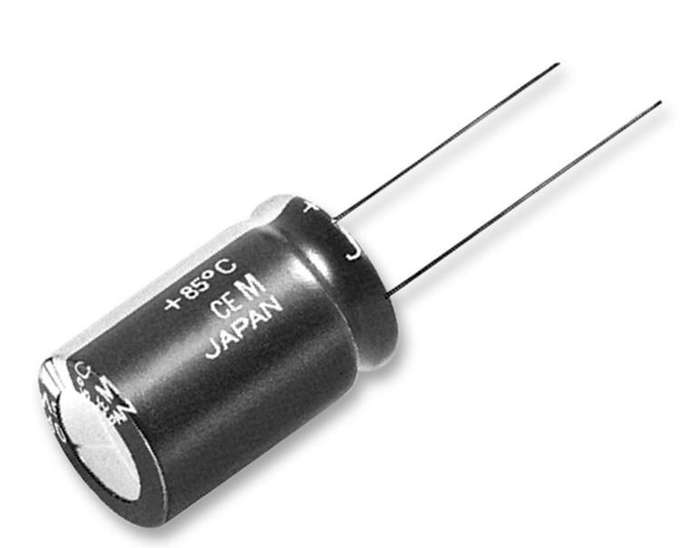

Panasonic (ECA1CAM100X) Electrolytic Capacitor, 10 µF, 16 V

Electrolytic Capacitor, 10 µF, 16 V, ± 20%, Radial Leaded, 2000 hours @ 85°C,PolarProduct InformationCapacitance: 10µFVoltage Rating: 16VVoltage(DC): 16VCapacitance Tolerance: ± 20%Capacitor Terminals: Radial LeadedLifetime @ Temperature: 2000 hours @ 85°CPolarity: PolarSeries Name: AMDiameter: 5mmProduct Diameter: 5mmLead Spacing: 2mmHeight: 11mmProduct Height: 11mmOperating Temperature Min: -40°COperating Temperature Max: 85°CESR: -Product Length: -Qualification: -Supplier Package: -Product Range: AMAutomotive Qualification Standard: -Product OverviewThe ECA1CAM100X is a radial leaded aluminium Electrolytic Capacitor, AM-Aseries. Solid tinned copper weld steel lead wire, thermoplastic resin sleeve,aluminium can, synthetic sealing rubber, cellulose separator, aluminium anodeand cathode foil.3µA Leakage current30mA RMS at 120Hz/85°C Rated ripple current±20% toleranceEndurance is 2000h at 85°COperating temperature range -40°C to 85°CCapacitor size varies from 5mm x 11mm to 18mm x 35.5mm (D x L)
